BOSCH

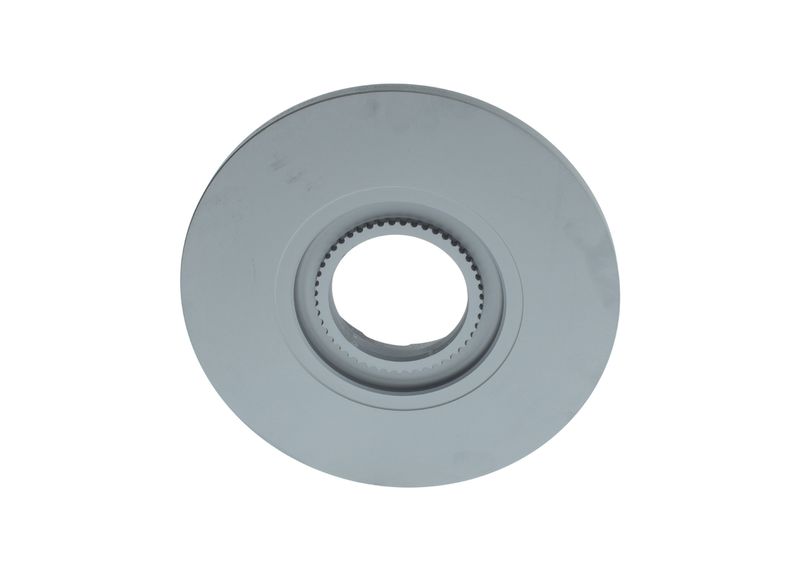

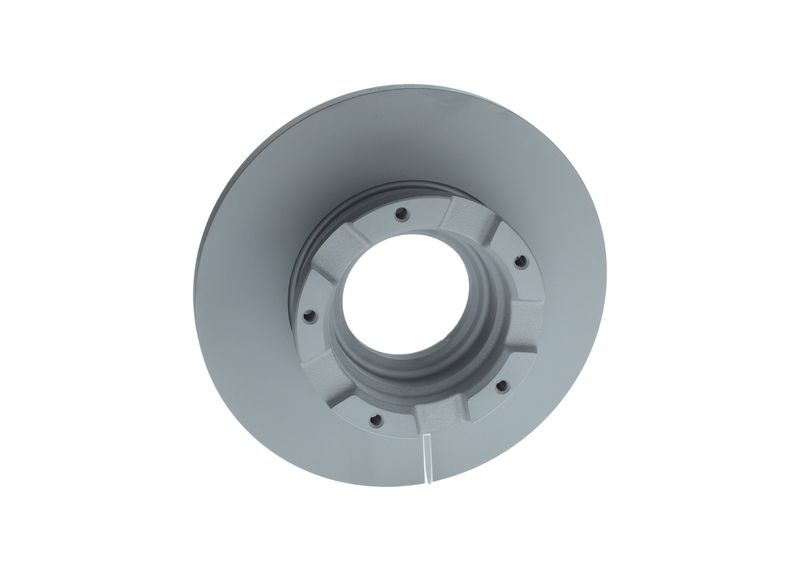

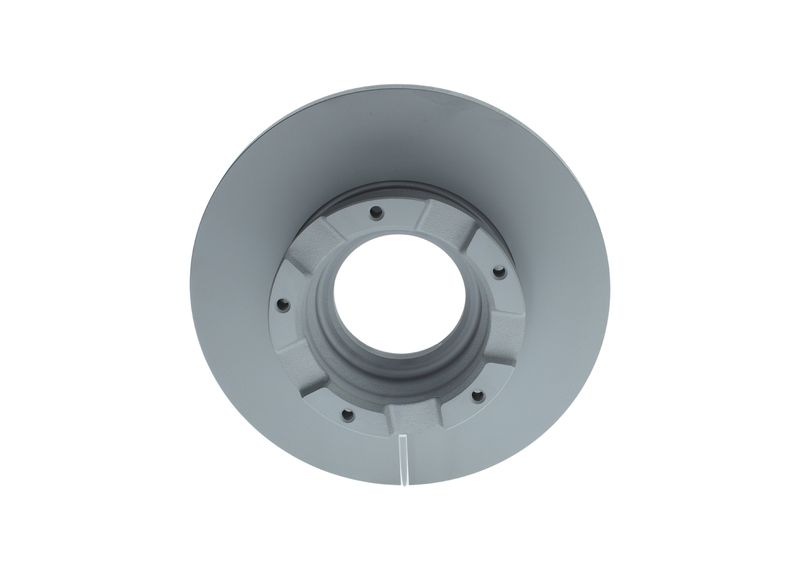

Bosch 0986479F62 Brake Disc

SKU: 0986479F62

Your selected vehicle

Only 4 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£58.72 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD

TRANSIT CUSTOM V362 Van (FY, FZ)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	155 HP	09/2012 - 12/2015

TRANSIT V363 Platform/Chassis (FED, FFD)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	100 HP	08/2013 - 12/2018
2.2 TDCi	2198 CCM	125 HP	08/2013 - 12/2018
2.2 TDCi	2198 CCM	155 HP	08/2013 - 12/2018
2.0 EcoBlue	1995 CCM	105 HP	From 03/2016
2.0 EcoBlue	1995 CCM	130 HP	From 03/2016
2.0 EcoBlue	1995 CCM	170 HP	03/2016 - 06/2024

TRANSIT V363 Bus (FAD, FBD)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	100 HP	08/2013 - 12/2018
2.2 TDCi	2198 CCM	125 HP	08/2013 - 12/2018
2.2 TDCi	2198 CCM	155 HP	12/2014 - 12/2018
2.0 EcoBlue	1995 CCM	105 HP	From 03/2016
2.0 EcoBlue	1995 CCM	130 HP	From 03/2016
2.0 EcoBlue	1995 CCM	170 HP	03/2016 - 06/2024

TRANSIT V363 Van (FCD, FDD)

Description	Cylinder Capacity	Horse Power	Year
2.2 TDCi	2198 CCM	155 HP	08/2013 - 12/2018
2.2 TDCi	2198 CCM	125 HP	08/2013 - 12/2018
2.2 TDCi	2198 CCM	100 HP	08/2013 - 12/2018
2.0 EcoBlue	1995 CCM	130 HP	From 03/2016
2.0 EcoBlue	1995 CCM	105 HP	From 03/2016
2.0 EcoBlue	1995 CCM	170 HP	03/2016 - 06/2024

The Bosch 0986479F62 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 308 mm outer diameter, 16 mm brake disc thickness, 13 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

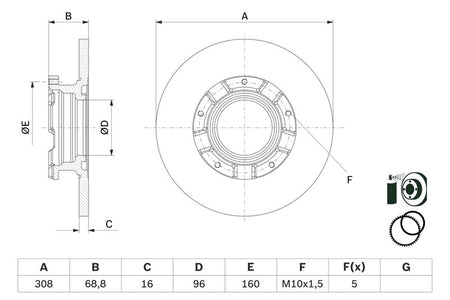

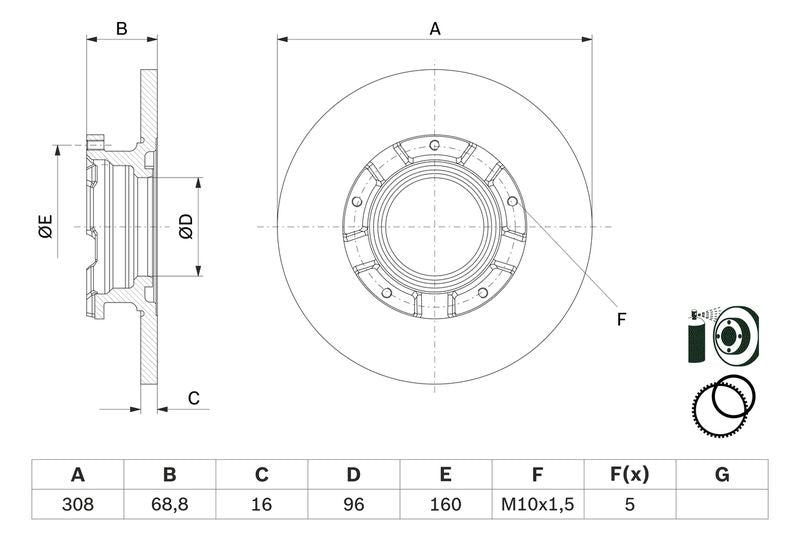

Function : Brake Disc

Outer Diameter [mm] : 308

Brake Disc Thickness [mm] : 16

Minimum thickness [mm] : 13

Height [mm] : 68.8

Bolt Hole Circle Ø [mm] : 160

Brake Disc Type : solid

Centering Diameter [mm] : 96

Number of Holes : 5

Surface : Coated

Supplementary Article/Supplementary Info 2 : with ABS sensor ring

fulfils ECE standard : ECE-R90

APEC : DSK2978
APEC : SDK6737
BLUE PRINT : ADBP430019
BORG & BECK : BBD6073S
BREMBO : 08.C241.20
BREMBO : 08.E026.20
DELPHI : BG9198C
Fahren : FBD6737
FEBI BILSTEIN : 171451
FTE : 9071405
HELLA : 8DD 355 122-761
MEYLE : 715 523 0025
MEYLE : 715 523 0025/PD
MINTEX : MDC2692
NAPA : NBD5645
SKF : VKBD 91316 S1
TEXTAR : 92273903
VALEO : 672873
VALEO : 673008
