BOSCH

Bosch 0986479F63 Brake Disc

SKU: 0986479F63
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£53.42 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
FIESTA VII (HJ, HF)
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost 998 CCM 101 HP From 05/2017
1.0 EcoBoost 998 CCM 125 HP From 05/2017
1.5 TDCi 1499 CCM 86 HP From 05/2017
1.5 TDCi 1499 CCM 120 HP From 05/2017
1.1 Ti-VCT 1084 CCM 71 HP From 05/2017
1.1 Ti-VCT 1084 CCM 86 HP From 05/2017
1.0 EcoBoost 998 CCM 140 HP From 06/2017
1.5 ST EcoBoost 1496 CCM 200 HP From 04/2018
1.0 EcoBoost 998 CCM 85 HP From 04/2018
1.0 EcoBoost 999 CCM 95 HP From 12/2019
1.1 Ti-VCT 1084 CCM 75 HP From 10/2019
1.0 EcoBoost mHEV 999 CCM 125 HP From 11/2019
1.0 EcoBoost mHEV 999 CCM 155 HP From 07/2020
1.0 EcoBoost mHEV Active 999 CCM 155 HP From 01/2021
1.0 EcoBoost mHEV Active 999 CCM 125 HP From 01/2021
FIESTA VII Van
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost 998 CCM 125 HP From 09/2018
1.5 TDCi 1499 CCM 120 HP From 09/2018
1.1 Ti-VCT 1084 CCM 86 HP From 04/2019
1.5 TDCi 1499 CCM 86 HP From 04/2019
1.1 Ti-VCT 1084 CCM 71 HP From 04/2019
1.0 EcoBoost 998 CCM 101 HP From 04/2019
1.0 EcoBoost 998 CCM 140 HP From 04/2019
1.1 Ti-VCT 1084 CCM 75 HP From 04/2019
1.0 EcoBoost 999 CCM 95 HP From 12/2019
1.0 EcoBoost mHEV 999 CCM 125 HP From 06/2020
1.0 EcoBoost Flex 999 CCM 95 HP From 12/2019

The Bosch 0986479F63 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 253 mm outer diameter, 12 mm brake disc thickness, 10 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

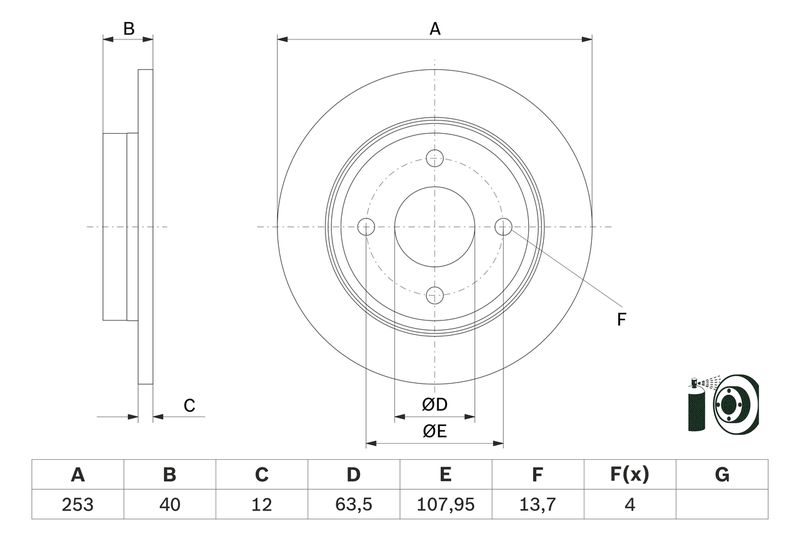

Function : Brake Disc
Outer Diameter [mm] : 253
Brake Disc Thickness [mm] : 12
Minimum thickness [mm] : 10
Height [mm] : 40
Bolt Hole Circle Ø [mm] : 107.95
Brake Disc Type : solid
Centering Diameter [mm] : 63.5
Number of Holes : 4
Surface : Coated
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 13.7
  • Vendor BOSCH
  • SKU 0986479F63
  • Barcode 4047026352962
  • FORD : H1BC2A315AB 2096336
  • APEC : DSK3393
  • APEC : SDK6949
  • BLUE PRINT : ADF124364
  • BORG & BECK : BBD5575
  • BREMBO : 08.D566.11
  • DELPHI : BG4954C
  • Fahren : FBD6949
  • FEBI BILSTEIN : 105850
  • FTE : 9082774
  • HELLA : 8DD 355 126-611
  • MEYLE : 715 523 0033/PD
  • MINTEX : MDC2812C
  • NAPA : NBD5705
  • SKF : VKBD 91279 S2
  • TEXTAR : 92292803
  • TRW : DF6759
  • VALEO : 673122
  • BOSCH : BD2808
  • BOSCH : E1 90R-02C0602/0075
