BOSCH

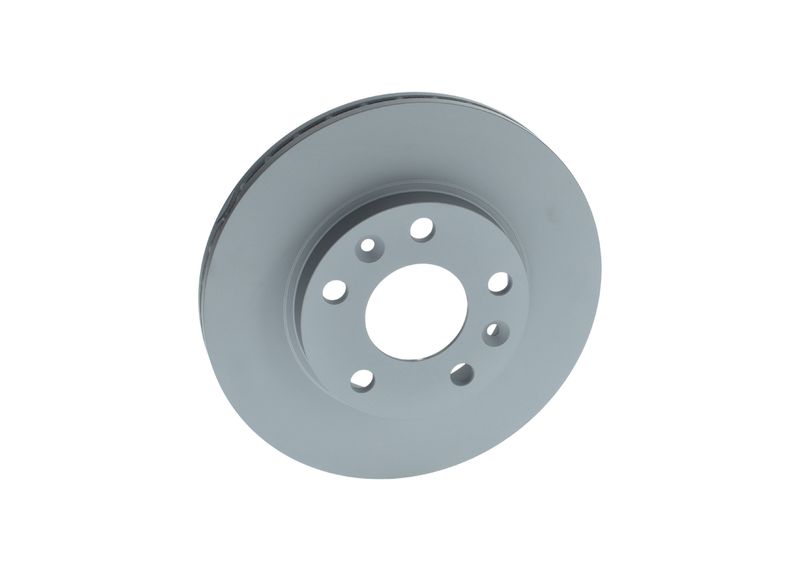

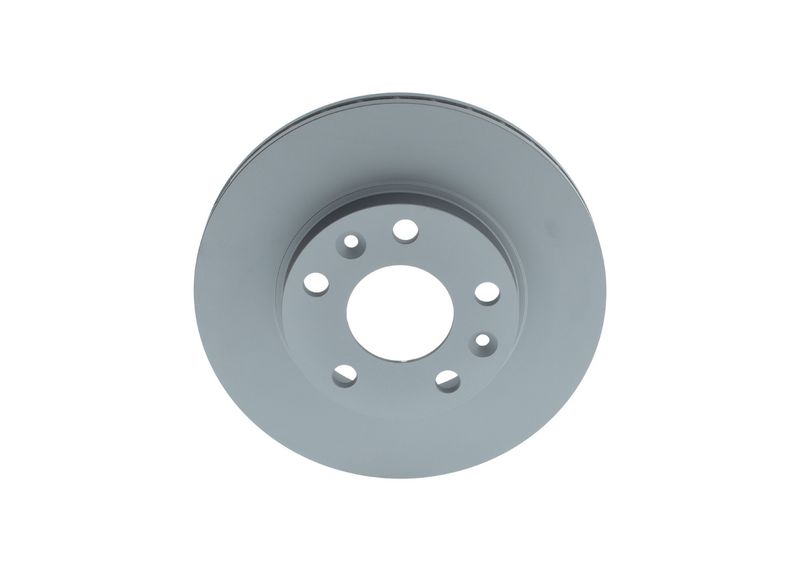

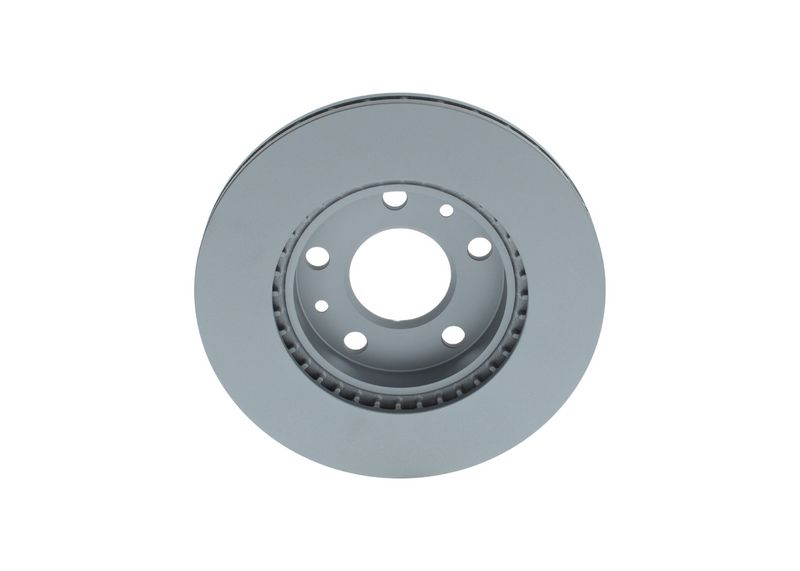

Bosch 0986479F65 Brake Disc

SKU: 0986479F65
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£113.75 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

RENAULT
MEGANE IV Hatchback (B9A/M/N_)
Description Cylinder Capacity Horse Power Year
1.2 TCe 100 (B9MS) 1197 CCM 101 HP From 11/2015
1.5 dCi 90 (B9A1) 1461 CCM 90 HP From 11/2015
1.6 16V 1598 CCM 115 HP From 11/2015
1.3 TCe 140 (B9NB) 1332 CCM 140 HP From 01/2018
MEGANE IV Grand Coupe (LVA/M/N)
Description Cylinder Capacity Horse Power Year
1.6 SCe (LVM0) 1598 CCM 115 HP From 10/2016
1.5 dCi 90 (LVA1) 1461 CCM 90 HP From 10/2016
1.3 TCe 140 (LVNB) 1332 CCM 140 HP From 01/2018
1.5 Blue dCi 115 (LVA6) 1461 CCM 115 HP From 02/2019

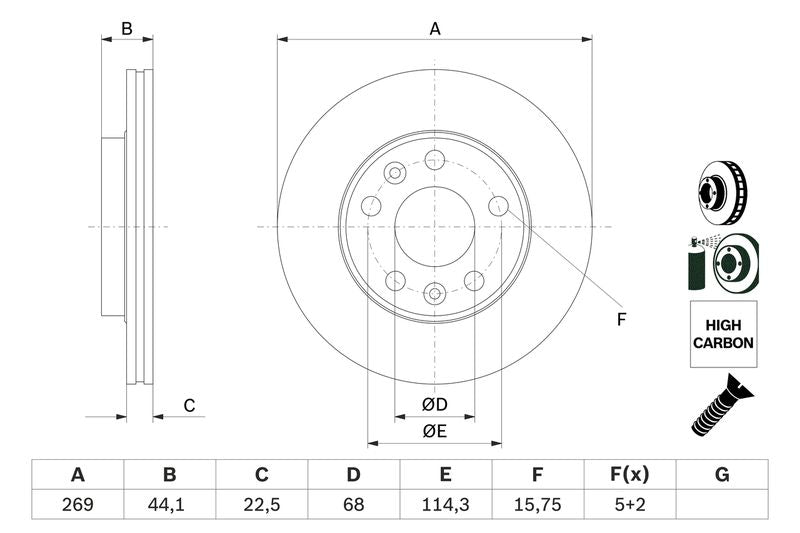

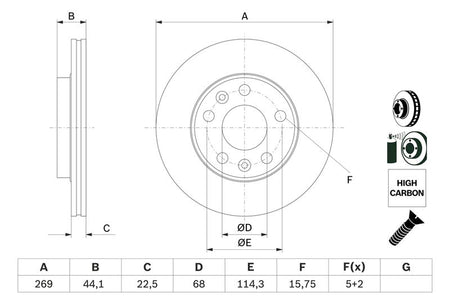

The Bosch 0986479F65 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 269 mm outer diameter, 22.5 mm brake disc thickness, 19.8 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 269
Brake Disc Thickness [mm] : 22.5
Minimum thickness [mm] : 19.8
Height [mm] : 44.1
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : Vented
Centering Diameter [mm] : 68
Number of Holes : 5
Surface : Coated
Machining : Alloyed/High-carbon
Supplementary Article/Supplementary Info 2 : with bolts/screws
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 15.75
  • Vendor BOSCH
  • SKU 0986479F65
  • Barcode 4047026352979
  • NISSAN : 4020600Q0M
  • RENAULT : 40 20 617 15R
  • BLUE PRINT : ADR164330
  • BREMBO : 09.B463.10
  • BREMBO : 09.B463.11
  • BREMBO : 09.B463.1X
  • FEBI BILSTEIN : 40075
  • HELLA : 8DD 355 122-431
  • MEYLE : 16-15 521 0028
  • MINTEX : MDC2657
  • TEXTAR : 92272603
  • TRW : DF6200
  • VALEO : 672772
  • BOSCH : BD2810
  • BOSCH : E1 90R-02C0588/0067
