BOSCH

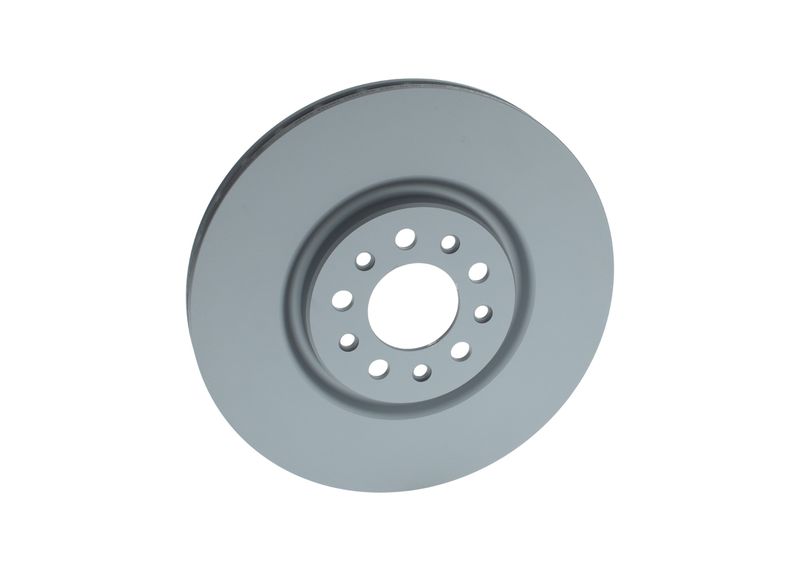

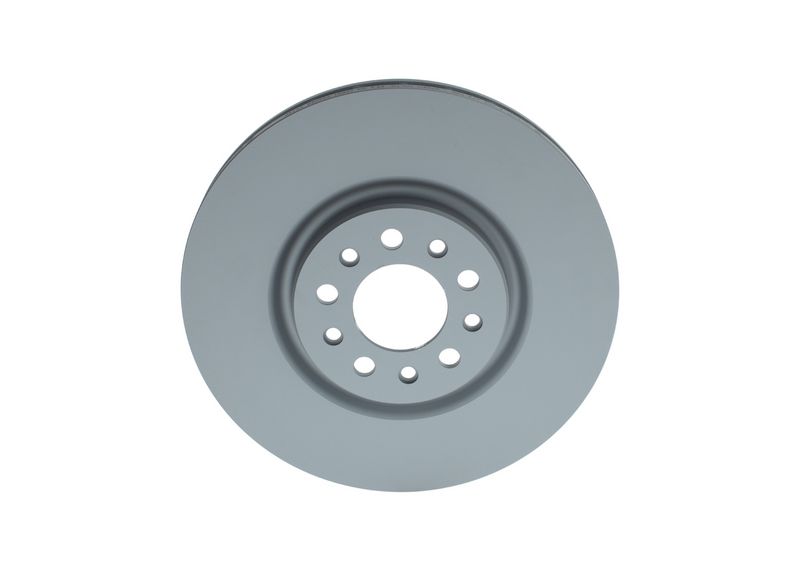

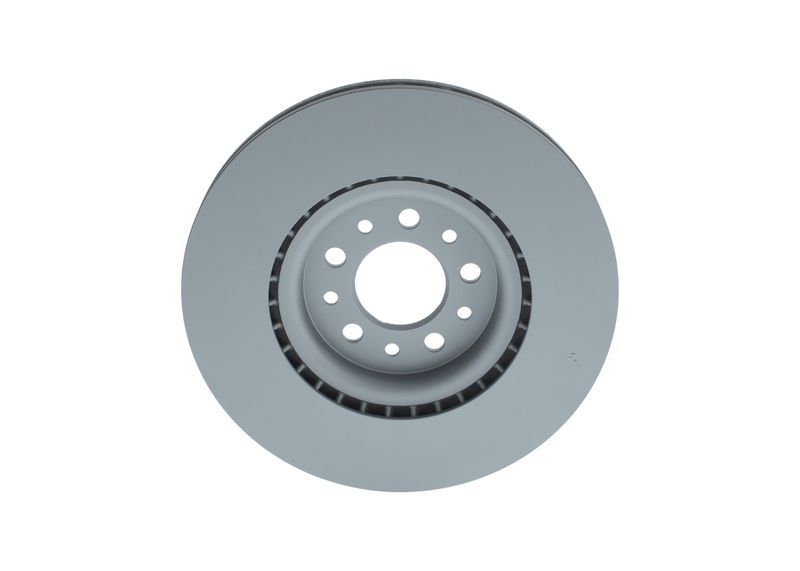

Bosch 0986479F66 Brake Disc

5.0/5 78 reviews
SKU: 0986479F66

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£88.34 inc. VAT

Complete the job

APEC — Aerosol Brake cleaner 600ml
£6.92

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

Spend & Earn

Earn 2% store credit on eligible parts spend. Available 30 days after fulfilment. Sign in at checkout to use your balance.

Excludes VAT, delivery, discounts and amounts paid with store credit.

JEEP
CHEROKEE (KL)
Description Cylinder Capacity Horse Power Year
3.2 V6 4x4 3239 CCM 272 HP From 11/2013
2.0 CRD 4x4 1956 CCM 170 HP 04/2014 - 08/2018
2.0 CRD 1956 CCM 140 HP 04/2014 - 08/2018
2.0 CRD 4x4 1956 CCM 140 HP 04/2014 - 08/2018
3.2 V6 3239 CCM 272 HP From 11/2013
2.2 CRD 4x4 2184 CCM 185 HP 08/2015 - 08/2018
2.2 CRD 4x4 2184 CCM 200 HP 08/2015 - 08/2018
3.2 V6 4x4 3239 CCM 271 HP From 05/2014
3.2 4x4 3239 CCM 275 HP From 01/2014
2.2 CRD 4x4 2184 CCM 195 HP From 09/2018
2.2 CRD 2184 CCM 195 HP From 09/2018
2.2 CRD 2184 CCM 150 HP From 09/2018
CHEROKEE VAN (KL)
Description Cylinder Capacity Horse Power Year
3.2 4x4 3239 CCM 272 HP From 08/2015
2.2 CRD 2184 CCM 185 HP 08/2015 - 08/2018
2.2 CRD 2184 CCM 200 HP 08/2015 - 08/2018

The Bosch 0986479F66 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 330 mm outer diameter, 28 mm brake disc thickness, 26.4 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

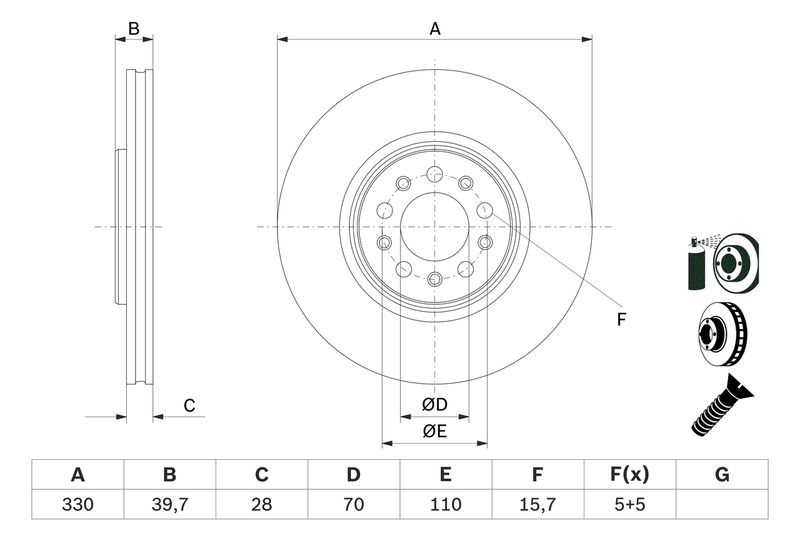

Function : Brake Disc
Outer Diameter [mm] : 330
Brake Disc Thickness [mm] : 28
Minimum thickness [mm] : 26.4
Height [mm] : 39.7
Bolt Hole Circle Ø [mm] : 110
Brake Disc Type : Vented
Centering Diameter [mm] : 70
Number of Holes : 5
Surface : Coated
Supplementary Article/Supplementary Info 2 : with bolts/screws
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 15.7
  • Vendor BOSCH
  • SKU 0986479F66
  • Barcode 4047026353112
  • JEEP : K04779884AA K04779884AC 04779 884AA 04779 884AC 4779 884AA 4779 884AC 68242 650AA 68242 650AB
  • BLUE PRINT : ADL144316
  • BLUE PRINT : ADL144324
  • BREMBO : 09.N268.11
  • BREMBO : 09.N268.1X
  • FEBI BILSTEIN : 44052
  • FEBI BILSTEIN : 44053
  • HELLA : 8DD 355 118-751
  • MINTEX : MDC1740
  • TEXTAR : 92145103
  • TRW : DF6837S
  • BOSCH : BD2811
  • BOSCH : E1 90R-02C0615/0063
