BOSCH

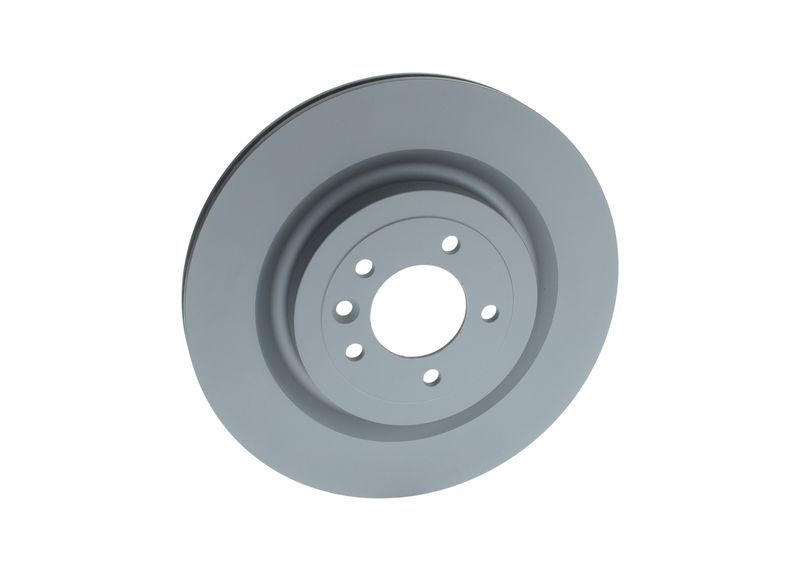

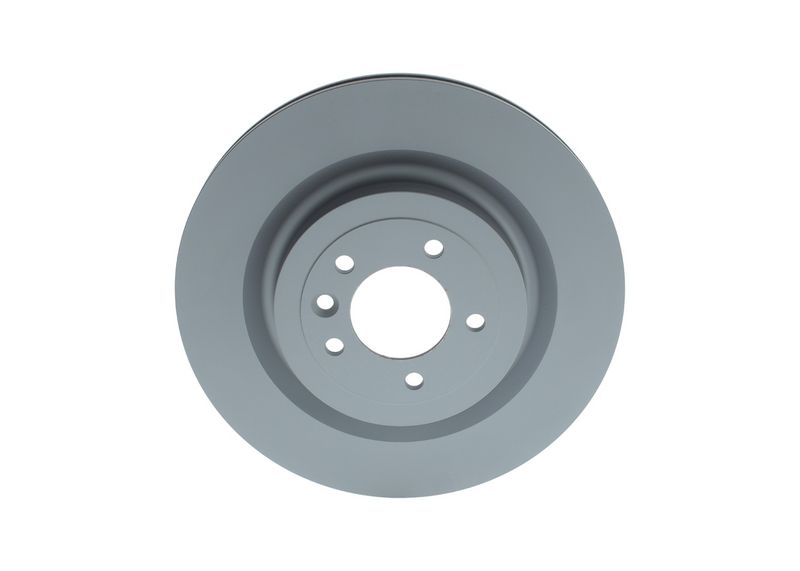

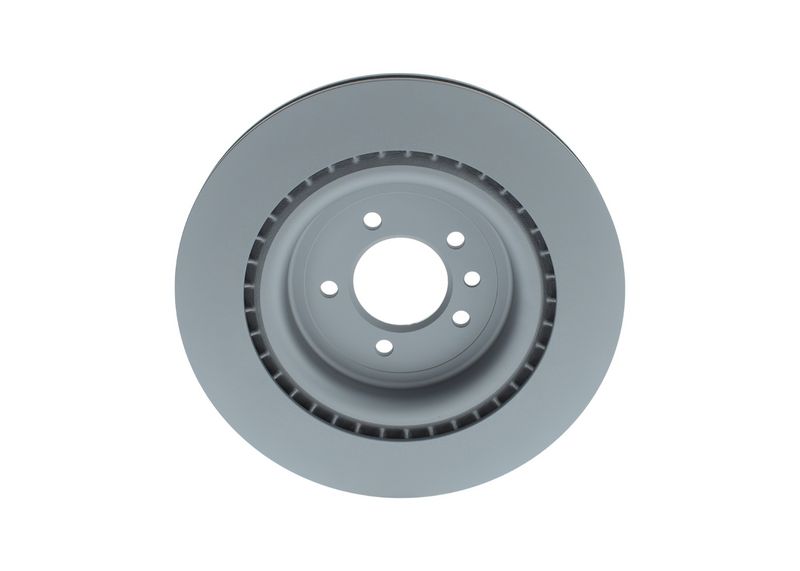

Bosch 0986479F68 Brake Disc

5.0/5 65 reviews
SKU: 0986479F68

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£232.19 inc. VAT

Complete the job

APEC — Aerosol Brake cleaner 600ml
£6.92

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

LAND ROVER
RANGE ROVER IV (L405)
Description Cylinder Capacity Horse Power Year
3.0 SDV6 4x4 2993 CCM 249 HP 08/2012 - 01/2016
3.0 TDV6 4x4 2993 CCM 258 HP 08/2012 - 09/2021
4.4 SDV8 4x4 4367 CCM 340 HP 08/2012 - 09/2021
5.0 SCV8 4x4 5000 CCM 510 HP 08/2012 - 09/2021
3.0 SCV6 4x4 2995 CCM 340 HP 10/2013 - 09/2021
3.0 TDV6 4x4 2993 CCM 211 HP 10/2013 - 01/2016
3.0 SDV6 Hybrid 4x4 2993 CCM 340 HP 10/2013 - 09/2021
5.0 V8 4x4 5000 CCM 375 HP 12/2013 - 01/2016
4.4 SDV8 4x4 4367 CCM 313 HP 08/2013 - 09/2021
5.0 SCV8 4x4 5000 CCM 550 HP 06/2015 - 09/2021
3.0 SCV6 4x4 2995 CCM 380 HP 06/2015 - 09/2021
3.0 SDV6 Hybrid 4x4 2993 CCM 354 HP 06/2015 - 09/2021
RANGE ROVER SPORT II (L494)
Description Cylinder Capacity Horse Power Year
5.0 SCV8 4x4 4999 CCM 510 HP 04/2013 - 12/2018
3.0 SCV6 4x4 2995 CCM 340 HP 04/2013 - 12/2019
3.0 SDV6 4x4 2993 CCM 292 HP 04/2013 - 12/2016
4.4 SDV8 4x4 4367 CCM 340 HP 10/2013 - 03/2022
3.0 SDV6 Hybrid 4x4 2993 CCM 340 HP 10/2013 - 03/2022
5.0 SCV8 4x4 4999 CCM 550 HP 01/2014 - 12/2018
3.0 SDV6 4x4 2993 CCM 306 HP 09/2014 - 03/2022
3.0 SCV6 4x4 2995 CCM 380 HP 06/2015 - 12/2018
3.0 SDV6 Hybrid 4x4 2993 CCM 354 HP 06/2015 - 12/2017

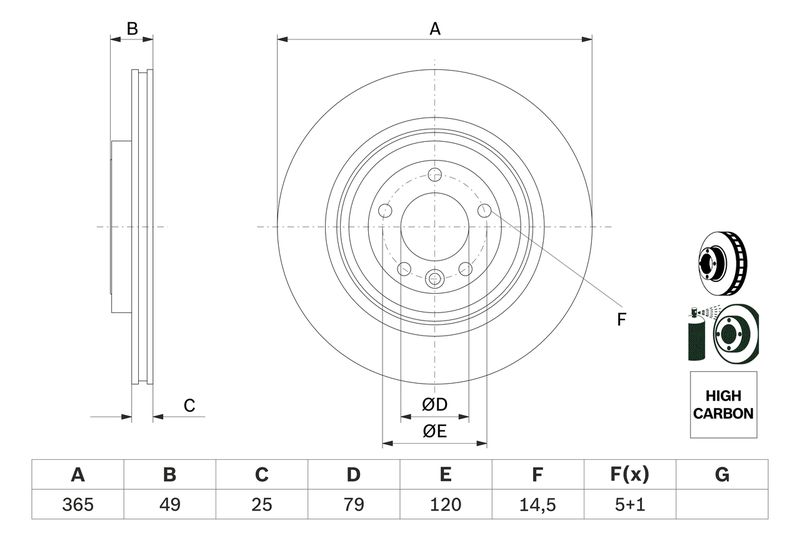

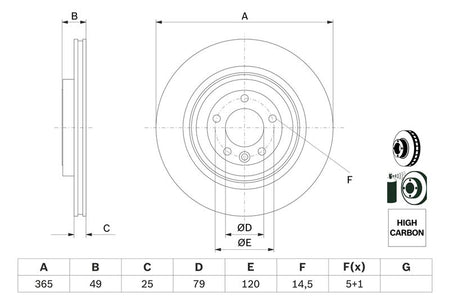

The Bosch 0986479F68 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 365 mm outer diameter, 25 mm brake disc thickness, 22 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 365
Brake Disc Thickness [mm] : 25
Minimum thickness [mm] : 22
Height [mm] : 49
Bolt Hole Circle Ø [mm] : 120
Brake Disc Type : Vented
Centering Diameter [mm] : 79
Number of Holes : 5
Surface : Coated
Machining : Alloyed/High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 14.5
  • Vendor BOSCH
  • SKU 0986479F68
  • Barcode 4047026353129
  • LAND ROVER : LR033303
  • APEC : DSK2958
  • APEC : SDK6726
  • BLUE PRINT : ADJ134349
  • BORG & BECK : BBD6107S
  • BREMBO : 09.B504.11
  • BREMBO : 09.B504.1S
  • BREMBO : 09.B504.1X
  • DELPHI : BG9126C
  • Fahren : FBD6726
  • FEBI BILSTEIN : 108534
  • FTE : 9081351
  • HELLA : 8DD 355 126-641
  • MEYLE : 53-15 523 0010/PD
  • MINTEX : MDC2814C
  • NAPA : NBD5643
  • SKF : VKBD 90398 V1
  • TEXTAR : 92293003
  • TRW : DF6505S
  • VALEO : 672687
  • BOSCH : BD2813
  • BOSCH : E1 90R-02C0615/0060
