BOSCH

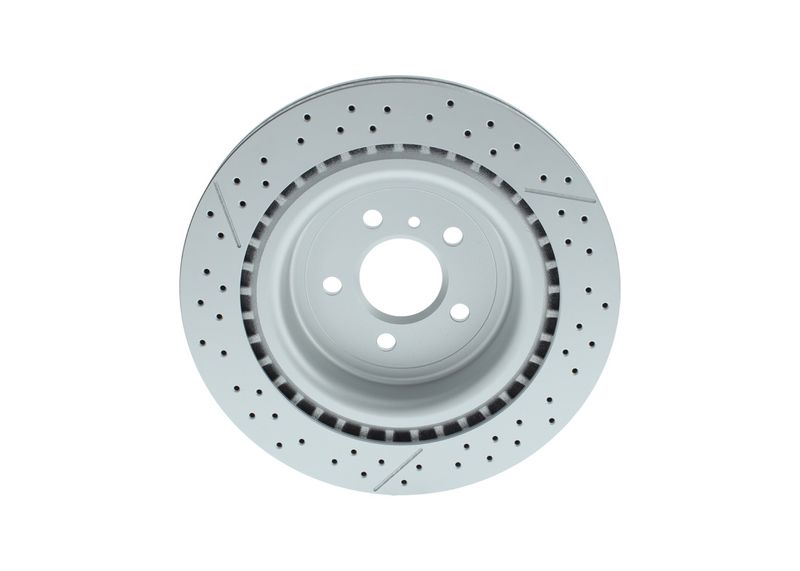

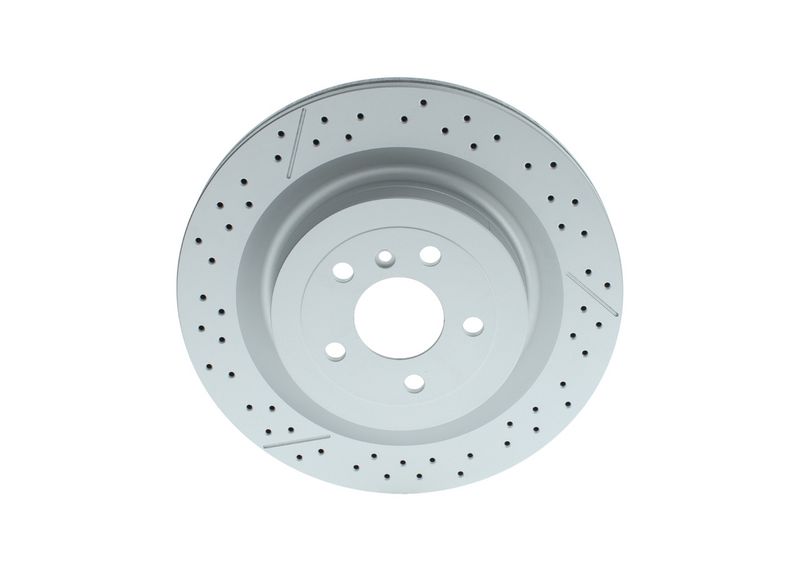

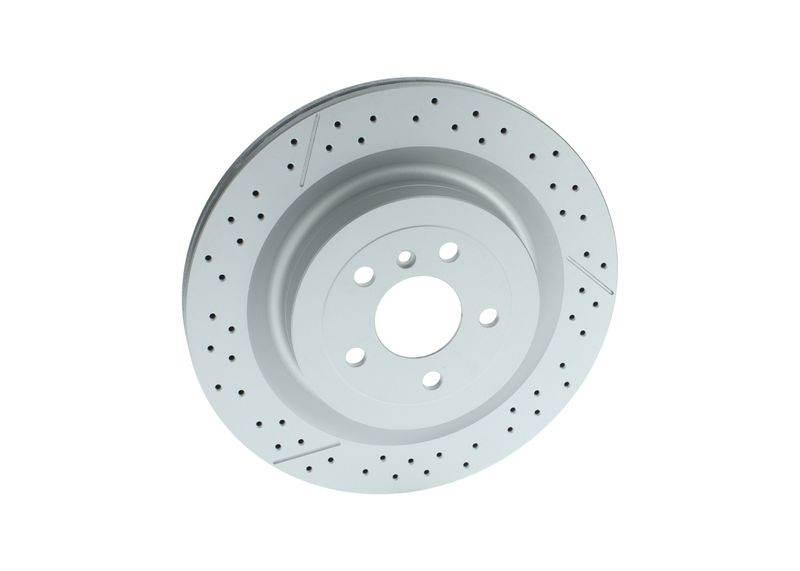

Bosch 0986479F69 Brake Disc

SKU: 0986479F69

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£80.49 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ

GL-CLASS (X166)

Description	Cylinder Capacity	Horse Power	Year
GL 350 CDI / BlueTec 4-matic (166.823, 166.824)	2987 CCM	258 HP	07/2012 - 10/2015
GL 63 AMG 4-matic (166.874)	5461 CCM	558 HP	07/2012 - 10/2015
GL 63 AMG 4-matic (166.874)	5461 CCM	544 HP	07/2012 - 10/2015

GLE Coupe (C292)

Description	Cylinder Capacity	Horse Power	Year
350 d 4-matic (292.323, 292.324)	2987 CCM	258 HP	03/2015 - 10/2019
400 4-matic (292.356)	2996 CCM	333 HP	03/2015 - 10/2019
450 AMG 4-matic (292.364)	2996 CCM	367 HP	03/2015 - 10/2019
AMG 63 4-matic (292.374)	5461 CCM	557 HP	03/2015 - 10/2019
AMG 63 S 4-matic (292.375)	5461 CCM	585 HP	03/2015 - 10/2019
AMG 43 4-matic (292.364)	2996 CCM	367 HP	05/2016 - 10/2019

GLE (W166)

Description	Cylinder Capacity	Horse Power	Year
AMG 63 4-matic (166.074)	5461 CCM	557 HP	04/2015 - 10/2018
AMG 63 S 4-matic (166.075)	5461 CCM	585 HP	04/2015 - 10/2018
450 AMG 4-matic (166.064)	2996 CCM	367 HP	10/2015 - 10/2018
AMG 43 4-matic (166.064)	2996 CCM	367 HP	05/2016 - 10/2018

GLS (X166)

Description	Cylinder Capacity	Horse Power	Year
350 d 4-matic (166.824)	2987 CCM	258 HP	11/2015 - 04/2019
400 4-matic (166.856)	2996 CCM	333 HP	11/2015 - 04/2019
AMG 63 4-matic (166.875)	5461 CCM	585 HP	11/2015 - 04/2019

M-CLASS (W166)

Description	Cylinder Capacity	Horse Power	Year
ML 63 AMG 4-matic (166.074)	5461 CCM	558 HP	11/2011 - 02/2015
ML 63 AMG 4-matic (166.074)	5461 CCM	525 HP	11/2011 - 02/2015

The Bosch 0986479F69 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 345 mm outer diameter, 26 mm brake disc thickness, 24 mm minimum thickness, and perforated and Vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

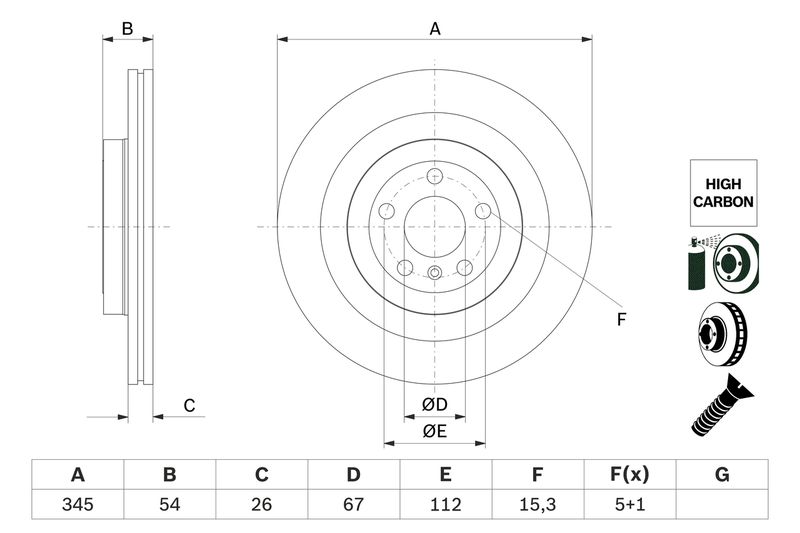

Function : Brake Disc

Outer Diameter [mm] : 345

Brake Disc Thickness [mm] : 26

Minimum thickness [mm] : 24

Height [mm] : 54

Bolt Hole Circle Ø [mm] : 112

Brake Disc Type : Perforated

Brake Disc Type : Vented

Centering Diameter [mm] : 67

Number of Holes : 5

Surface : Coated

Machining : High-carbon

Supplementary Article/Supplementary Info 2 : with bolts/screws

Bore Diameter up to [mm] : 15.3

Bosch 0986479F69 Brake Disc
