BOSCH

Bosch 0986479F75 Brake Disc

SKU: 0986479F75

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£33.35 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ

A-CLASS (W176)

Description	Cylinder Capacity	Horse Power	Year
A 250 4-matic (176.046)	1991 CCM	211 HP	06/2013 - 05/2018
A 220 4-matic (176.047)	1991 CCM	184 HP	05/2014 - 05/2018

CLA Coupe (C117)

Description	Cylinder Capacity	Horse Power	Year
CLA 250 4-matic (117.346)	1991 CCM	211 HP	07/2013 - 03/2019
CLA 200 CDI / d 4-matic (117.302)	2143 CCM	136 HP	07/2014 - 03/2019
CLA 220 CDI 4-matic (117.305)	2143 CCM	170 HP	07/2014 - 03/2019
CLA 220 CDI / d 4-matic (117.305)	2143 CCM	163 HP	08/2014 - 03/2019
CLA 220 CDI / d 4-matic (117.305)	2143 CCM	177 HP	09/2014 - 03/2019

CLA Shooting Brake (X117)

Description	Cylinder Capacity	Horse Power	Year
CLA 250 4-matic (117.946)	1991 CCM	211 HP	01/2015 - 03/2019
CLA 200 CDI / d 4-matic (117.902)	2143 CCM	136 HP	01/2015 - 03/2019
CLA 220 CDI / d 4-matic (117.905)	2143 CCM	177 HP	01/2015 - 03/2019
CLA 220 4-matic (117.947)	1991 CCM	184 HP	04/2016 - 03/2019

GLA-CLASS (X156)

Description	Cylinder Capacity	Horse Power	Year
GLA 250 (156.944)	1991 CCM	211 HP	12/2013 - 12/2019
GLA 250 4-matic (156.946)	1991 CCM	211 HP	12/2013 - 12/2019

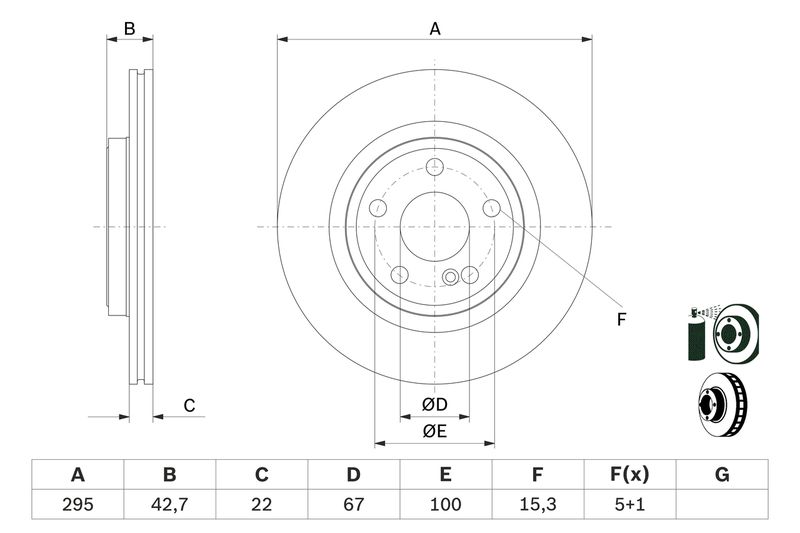

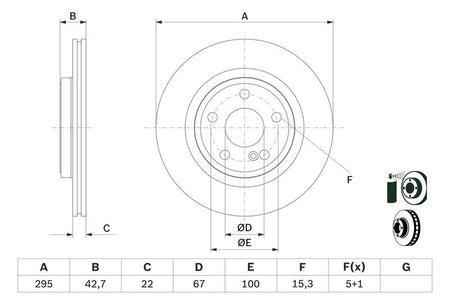

The Bosch 0986479F75 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 295 mm outer diameter, 22 mm brake disc thickness, 19.4 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 295

Brake Disc Thickness [mm] : 22

Minimum thickness [mm] : 19.4

Height [mm] : 42.7

Bolt Hole Circle Ø [mm] : 112

Brake Disc Type : Vented

Centering Diameter [mm] : 67

Number of Holes : 5

Surface : Coated

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 15.3

APEC : DSK3364
BLUE PRINT : ADN143186
BORG & BECK : BBD5459
BREMBO : 09.C219.41
DELPHI : BG4927C
FTE : 9082671
HELLA : 8DD 355 125-381
MEYLE : 015 523 0045/PD
MINTEX : MDC2772
National : NBD2190
TEXTAR : 92286903
TRW : DF6887

Bosch 0986479F75 Brake Disc
