Bosch 0986479F78 Brake Disc
Your selected vehicle
Regular price
£68.49
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

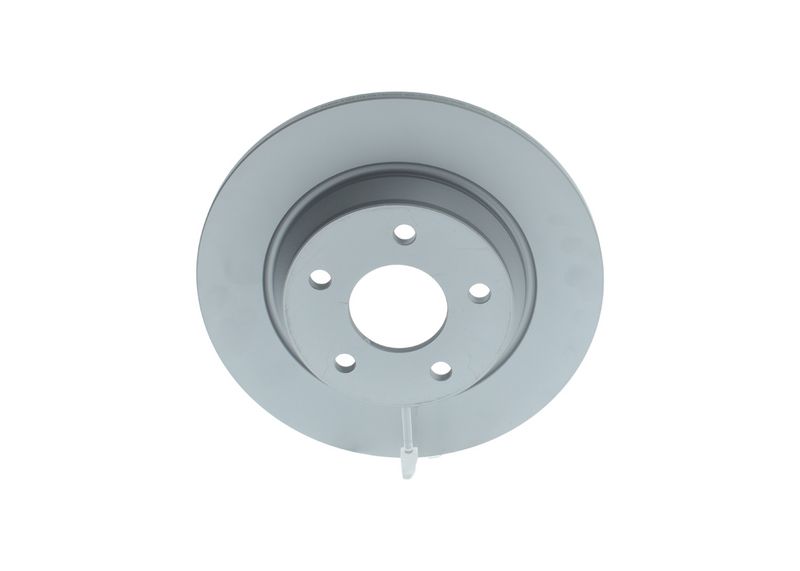

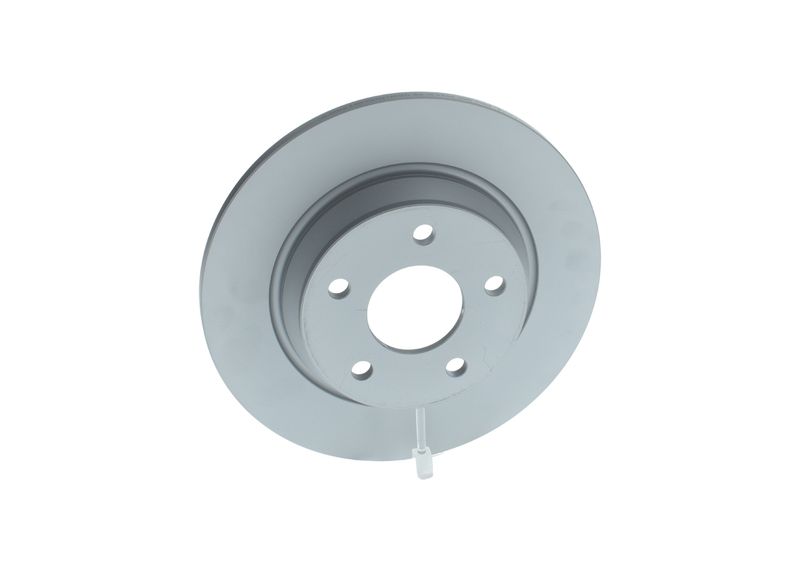

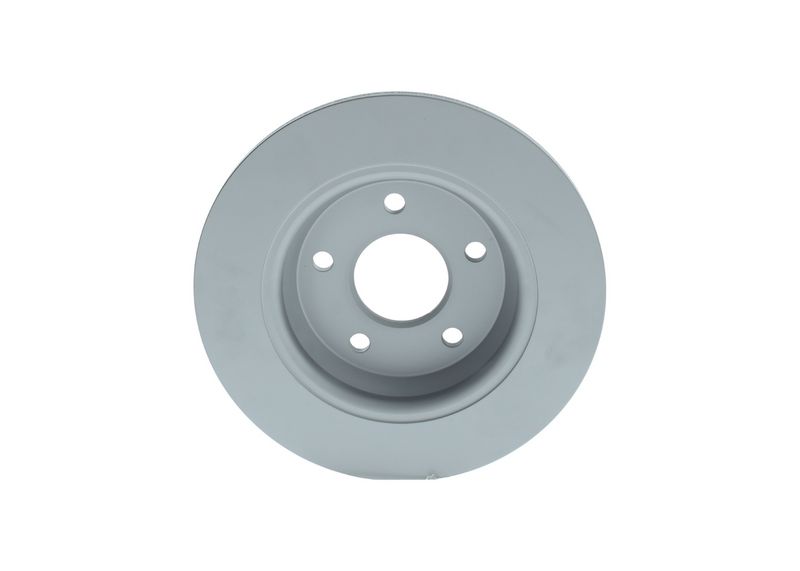

The Bosch 0986479F78 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 271 mm outer diameter, 11 mm brake disc thickness, 9 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Disc

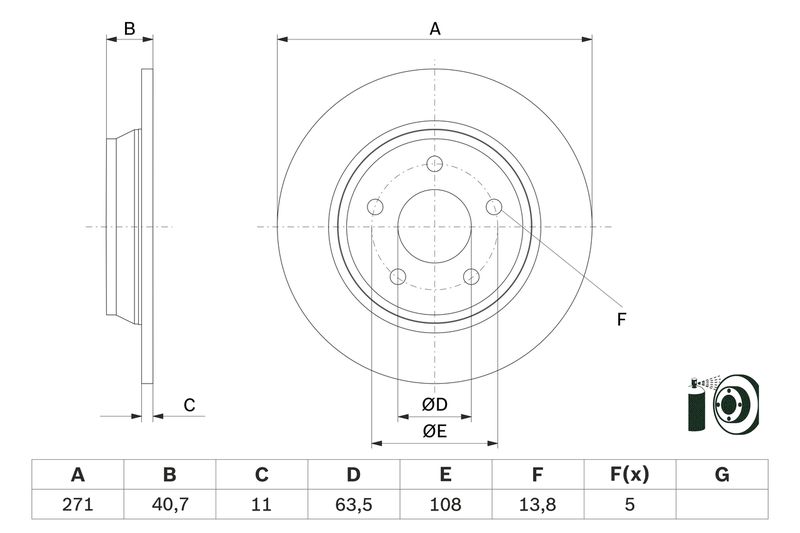

Outer Diameter [mm] :
271
Brake Disc Thickness [mm] :
11
Minimum thickness [mm] :
9
Height [mm] :
40.7
Bolt Hole Circle Ø [mm] :
108
Brake Disc Type :
solid
Centering Diameter [mm] :
63.5
Number of Holes :
5
Surface :
Coated
fulfils ECE standard :
ECE-R90
Bore Diameter up to [mm] :
13.8
- Vendor BOSCH
- SKU 0986479F78
- FORD : 2196429
- APEC : DSK3481
- APEC : SDK7160
- BLUE PRINT : ADF124379
- BORG & BECK : BBD5548
- BREMBO : 08.D864.11
- BREMBO : 08.D864.1X
- DELPHI : BG5297C
- Fahren : FBD7160
- FEBI BILSTEIN : 108193
- FTE : 9082807
- HELLA : 8DD 355 132-031
- MEYLE : 715 523 0035/PD
- MINTEX : MDC2867C
- NAPA : NBD5710
- National : NBD2105
- SKF : VKBD 91353 S2
- TEXTAR : 92303503
- TRW : DF6556
- VALEO : 673195
- BOSCH : BD2823
- BOSCH : E1 90 R - 02 C0371/0683
