BOSCH

Bosch 0986479F90 Brake Disc

SKU: 0986479F90
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£60.49 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

VOLVO
S60 III (224)
Description Cylinder Capacity Horse Power Year
T5 1969 CCM 250 HP 02/2019 - 12/2021
T4 1969 CCM 190 HP 02/2019 - 12/2021
T8 Twin Engine AWD 1969 CCM 390 HP 02/2019 - 12/2022
T6 Twin Engine AWD 1969 CCM 340 HP 02/2019 - 12/2022
T8 Twin Engine Polestar AWD 1969 CCM 405 HP From 02/2019
T5 AWD 1969 CCM 250 HP From 02/2019
T6 AWD 1969 CCM 310 HP 05/2019 - 12/2021
T8 Hybrid Polestar AWD 1969 CCM 422 HP 05/2019 - 12/2022
T5 AWD 1969 CCM 254 HP 05/2019 - 12/2021
T5 Polestar 1969 CCM 253 HP 07/2019 - 12/2021
T4 Polestar 1969 CCM 210 HP 07/2019 - 12/2021
B4 Mild-Hybrid 1969 CCM 197 HP From 03/2020
B5 Mild-Hybrid 1969 CCM 250 HP From 03/2020
B5 Mild-Hybrid AWD 1969 CCM 250 HP From 03/2020
S90 II (234)
Description Cylinder Capacity Horse Power Year
T6 AWD 1969 CCM 320 HP 03/2016 - 12/2021
D5 AWD 1969 CCM 235 HP 03/2016 - 12/2021
D4 1969 CCM 190 HP 03/2016 - 12/2021
T5 1969 CCM 254 HP 03/2016 - 12/2021
D4 AWD 1969 CCM 190 HP 03/2016 - 12/2021
D3 1969 CCM 150 HP 03/2016 - 12/2021
2.0 1969 CCM 249 HP 03/2016 - 12/2021
T4 1969 CCM 190 HP 10/2017 - 12/2021
T6 AWD 1969 CCM 310 HP 10/2017 - 12/2021
T5 1969 CCM 250 HP 10/2017 - 12/2021
T8 Hybrid AWD 1969 CCM 390 HP 04/2018 - 12/2022
D4 1969 CCM 163 HP 09/2018 - 12/2021
T8 Hybrid Polestar AWD 1969 CCM 317 HP From 01/2019
T5 Drive-E Polestar 1969 CCM 253 HP 10/2017 - 12/2021
D4 Drive-E Polestar 1969 CCM 200 HP 03/2016 - 12/2021
V60 II (225)
Description Cylinder Capacity Horse Power Year
T5 1969 CCM 250 HP 02/2018 - 12/2021
T6 AWD 1969 CCM 310 HP 02/2018 - 12/2021
T8 Plug-in Hybrid AWD 1969 CCM 390 HP 02/2018 - 12/2022
D3 1969 CCM 150 HP 02/2018 - 12/2021
D4 1969 CCM 190 HP 02/2018 - 12/2021
D3 AWD 1969 CCM 150 HP 09/2018 - 12/2021
D4 AWD 1969 CCM 190 HP 09/2018 - 12/2021
D4 Polestar 1969 CCM 200 HP 02/2018 - 12/2021
T6 Plug-in Hybrid AWD 1969 CCM 340 HP 03/2019 - 12/2022
T8 Plug-in Hybrid Polestar AWD 1969 CCM 405 HP 05/2019 - 12/2022
T4 1969 CCM 190 HP From 05/2019
T5 AWD 1969 CCM 250 HP 09/2018 - 12/2021
2.0 T6 Drive-E Polestar AWD 1969 CCM 326 HP 02/2018 - 12/2021
T5 Polestar 1969 CCM 253 HP 07/2019 - 12/2021
T5 Polestar AWD 1969 CCM 253 HP From 07/2019
V60 II Cross Country (227)
Description Cylinder Capacity Horse Power Year
B4 Mild-Hybrid AWD 1969 CCM 197 HP From 10/2020
B5 Mild-Hybrid AWD 1969 CCM 249 HP From 03/2022
D4 AWD 1969 CCM 190 HP 12/2018 - 12/2021
T5 AWD 1969 CCM 250 HP 12/2018 - 12/2021
B5 Mild-Hybrid AWD 1969 CCM 250 HP From 01/2020
V90 II Cross Country (236)
Description Cylinder Capacity Horse Power Year
T5 AWD 1969 CCM 254 HP 10/2016 - 12/2018
T5 AWD 1969 CCM 249 HP 03/2016 - 12/2021
T5 AWD 1969 CCM 250 HP From 10/2017
D4 AWD 1969 CCM 163 HP From 09/2018
T5 Polestar AWD 1969 CCM 253 HP From 10/2017
B5 Mild Hybrid AWD 1969 CCM 250 HP From 03/2020
B5 Mild-Hybrid 1969 CCM 249 HP From 03/2022
T6 AWD 1969 CCM 320 HP From 10/2016
D5 AWD 1969 CCM 235 HP From 10/2016
D4 AWD 1969 CCM 190 HP From 10/2016
T6 AWD 1969 CCM 310 HP From 10/2017
B6 Mild-Hybrid AWD 1969 CCM 299 HP From 03/2020
B5 Mild Hybrid AWD 1969 CCM 235 HP From 12/2020
B4 Mild-Hybrid AWD 1969 CCM 197 HP From 10/2020
B5 Mild Hybrid Polestar AWD 1969 CCM 245 HP From 11/2021
V90 II Estate (235)
Description Cylinder Capacity Horse Power Year
T5 1969 CCM 254 HP 03/2016 - 12/2018
T6 AWD 1969 CCM 320 HP 03/2016 - 12/2018
D4 1969 CCM 190 HP 03/2016 - 12/2021
D5 AWD 1969 CCM 235 HP 03/2016 - 12/2021
T8 Plug-in-Hybrid AWD 1969 CCM 407 HP 03/2016 - 12/2018
D3 1969 CCM 150 HP 03/2016 - 12/2021
D3 AWD 1969 CCM 150 HP 03/2016 - 12/2021
D4 AWD 1969 CCM 190 HP 03/2016 - 12/2021
T5 1969 CCM 250 HP 10/2017 - 12/2021
T6 AWD 1969 CCM 310 HP 10/2017 - 12/2021
T4 1969 CCM 190 HP 10/2017 - 12/2021
T8 Hybrid AWD 1969 CCM 390 HP 04/2018 - 12/2022
D4 1969 CCM 163 HP 09/2018 - 12/2021
T8 Plug-in Hybrid Polestar AWD 1969 CCM 317 HP 05/2018 - 12/2022
T6 Polestar AWD 1969 CCM 326 HP 10/2017 - 12/2021
XC40 (536)
Description Cylinder Capacity Horse Power Year
T5 AWD 1969 CCM 247 HP 10/2017 - 09/2021
D4 AWD 1969 CCM 190 HP 10/2017 - 09/2021
T4 1969 CCM 190 HP 09/2018 - 12/2021
T4 AWD 1969 CCM 190 HP From 09/2018
T3 1477 CCM 156 HP 03/2018 - 03/2019
D3 1969 CCM 150 HP 09/2018 - 09/2021
D3 AWD 1969 CCM 150 HP 09/2018 - 09/2021
T5 AWD 1969 CCM 249 HP 10/2017 - 12/2022
D4 Polestar AWD 1969 CCM 200 HP 01/2019 - 09/2021
T3 1477 CCM 163 HP 03/2019 - 12/2022
T5 Plug-in Hybrid 1477 CCM 262 HP From 06/2019
T2 1477 CCM 129 HP From 06/2019
T5 Polestar AWD 1969 CCM 249 HP 10/2017 - 09/2019
B4 Mild-Hybrid AWD 1969 CCM 197 HP From 09/2019
B4 Mild-Hybrid 1969 CCM 197 HP From 09/2019
XC60 II (246)
Description Cylinder Capacity Horse Power Year
D4 AWD 1969 CCM 190 HP 03/2017 - 12/2021
D5 AWD 1969 CCM 235 HP 03/2017 - 12/2022
T5 AWD 1969 CCM 254 HP 03/2017 - 12/2021
T6 AWD 1969 CCM 320 HP 03/2017 - 12/2021
T8 Hybrid AWD 1969 CCM 407 HP 03/2017 - 12/2022
T5 1969 CCM 254 HP From 03/2017
T5 1969 CCM 250 HP 10/2017 - 12/2020
T5 AWD 1969 CCM 250 HP 10/2017 - 12/2020
T6 AWD 1969 CCM 310 HP 10/2017 - 12/2021
T5 AWD 1969 CCM 249 HP 10/2017 - 12/2021
T8 Hybrid AWD 1969 CCM 390 HP 02/2018 - 12/2022
D4 1969 CCM 190 HP 03/2017 - 12/2021
D3 1969 CCM 150 HP 03/2017 - 12/2021
T4 1969 CCM 190 HP 09/2018 - 12/2021
D4 1969 CCM 163 HP 12/2018 - 12/2021

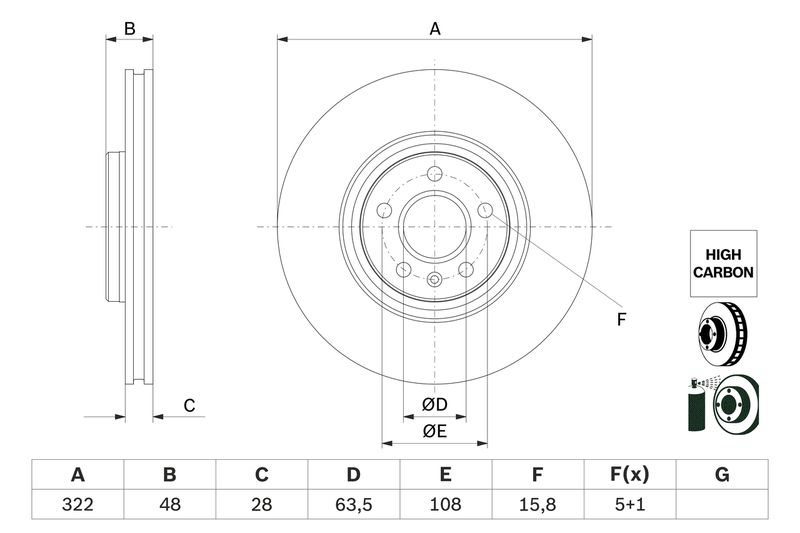

The Bosch 0986479F90 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 322 mm outer diameter, 28 mm brake disc thickness, 25.5 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 322
Brake Disc Thickness [mm] : 28
Minimum thickness [mm] : 25.5
Height [mm] : 48
Bolt Hole Circle Ø [mm] : 108
Brake Disc Type : Vented
Centering Diameter [mm] : 63.5
Number of Holes : 5
Surface : Coated
Machining : High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 15.8
  • Vendor BOSCH
  • SKU 0986479F90
  • Barcode 4047026514285
  • VOLVO : 31423724 31471413 31665446 32217561 32233185 32254356 32300122
  • APEC : DSK3321
  • BLUE PRINT : ADF124365
  • BORG & BECK : BBD6148S
  • BREMBO : 09.D251.11
  • DELPHI : BG9330C
  • FEBI BILSTEIN : 106352
  • FTE : 9082837
  • HELLA : 8DD 355 125-471
  • MEYLE : 583 521 0046/PD
  • MINTEX : MDC2761
  • NAPA : NBD5913
  • National : NBD2164
  • SKF : VKBD 81404 V1
  • TEXTAR : 92287405
  • TRW : DF3959S
  • VALEO : 673082
  • BOSCH : BD2835
  • BOSCH : E1 90 R - 02 C0348/0680
