BOSCH

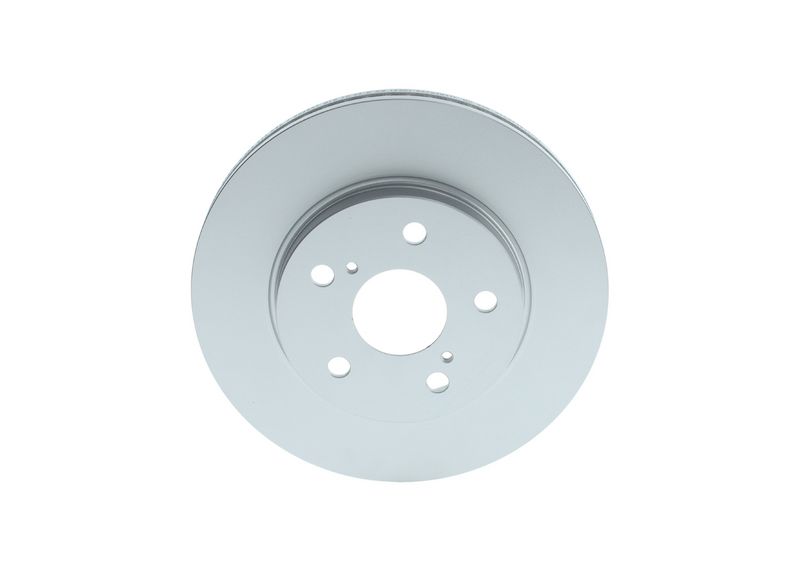

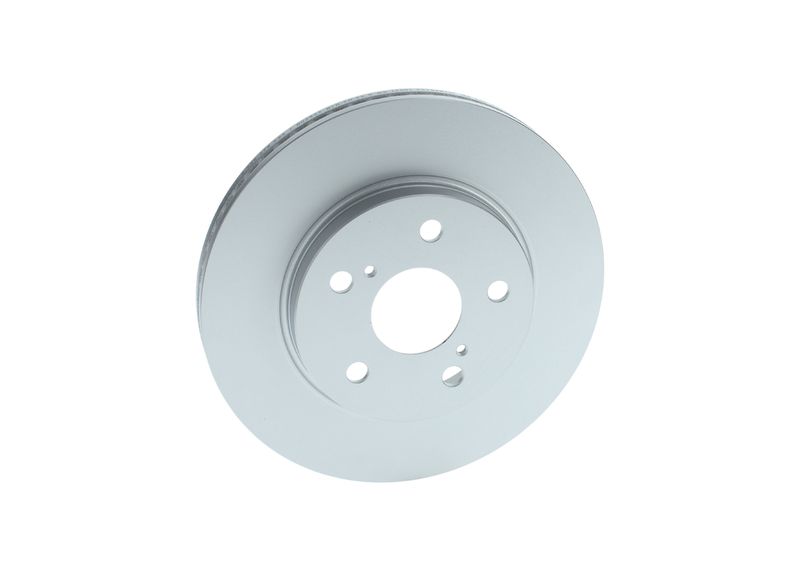

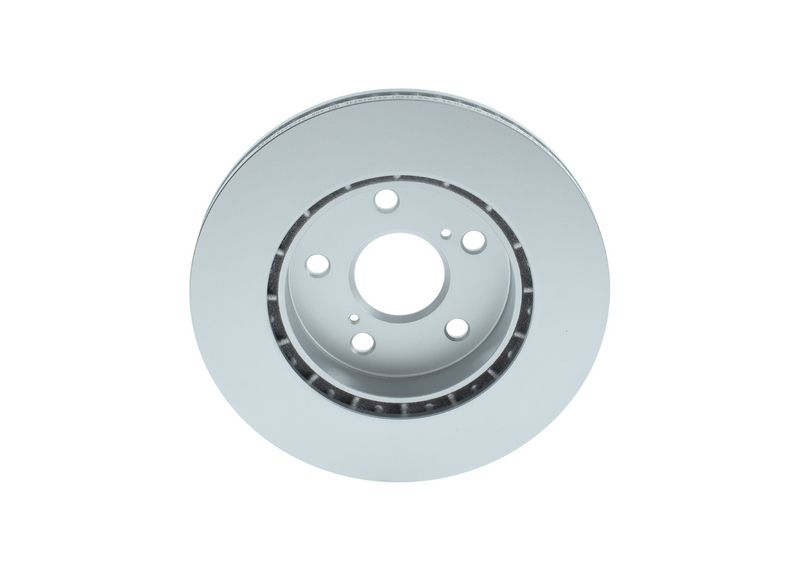

Bosch 0986479F92 Brake Disc

SKU: 0986479F92
Your selected vehicle
Out of stock
Out of Stock
£41.40 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
COROLLA Hatchback (_E21_, _EA1_, _EH1_)
Description Cylinder Capacity Horse Power Year
1.2 (NRE210) 1197 CCM 116 HP From 01/2019
1.8 Hybrid (ZWE211, ZWE219) 1798 CCM 122 HP From 10/2018
1.8 VVTi Hybrid (ZWE219) 1798 CCM 140 HP From 09/2022
COROLLA Saloon (_E21_)
Description Cylinder Capacity Horse Power Year
1.6 VVTi (ZRE210) 1598 CCM 132 HP From 01/2019
1.6 VVTi (ZRE210) 1598 CCM 122 HP From 01/2019
1.8 VVTi Hybrid (ZWE211) 1798 CCM 122 HP From 02/2019
1.8 VVTi Hybrid 1798 CCM 126 HP From 01/2019
1.8 VVTi Hybrid (ZWE219) 1798 CCM 140 HP From 09/2022
COROLLA Estate (_E21_)
Description Cylinder Capacity Horse Power Year
1.2 (NRE210) 1197 CCM 116 HP From 02/2019
1.8 Hybrid (ZWE211W) 1798 CCM 122 HP From 02/2019
1.8 VVTi Hybrid (ZWE219) 1798 CCM 140 HP From 09/2022
COROLLA COMMERCIAL (_E21_)
Description Cylinder Capacity Horse Power Year
1.8 VVTi Hybrid (ZWE211) 1798 CCM 122 HP From 06/2022
1.8 VVTi Hybrid (ZWE219) 1798 CCM 140 HP From 01/2023
YARIS CROSS (MXP_)
Description Cylinder Capacity Horse Power Year
1.5 (MXPB10) 1490 CCM 125 HP From 09/2020
1.5 Hybrid (MXPJ10) 1490 CCM 116 HP From 09/2020
1.5 Hybrid All-wheel Drive (MXPJ15) 1490 CCM 116 HP From 09/2020
1.5 Hybrid (MXPJ11) 1490 CCM 131 HP From 01/2024
1.5 Hybrid AWD-i (MXPJ16) 1490 CCM 131 HP From 01/2024

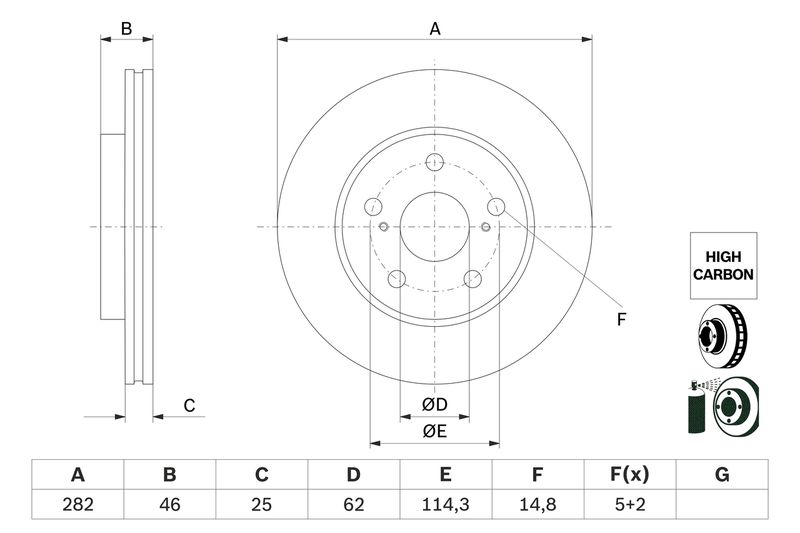

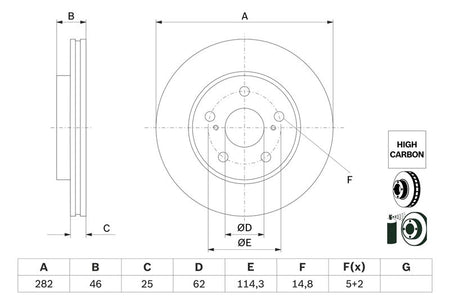

The Bosch 0986479F92 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 282 mm outer diameter, 25 mm brake disc thickness, 22 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 282
Brake Disc Thickness [mm] : 25
Minimum thickness [mm] : 22
Height [mm] : 46
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : Vented
Centering Diameter [mm] : 62
Number of Holes : 5
Surface : Coated
Machining : High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 14.8
  • Vendor BOSCH
  • SKU 0986479F92
  • Barcode 4047023072771
  • TOYOTA : 43512 02390
  • LEXUS : 4351202390
  • APEC : DSK3529
  • BLUE PRINT : ADBP430072
  • BORG & BECK : BBD5600
  • BREMBO : 09.E229.11
  • BREMBO : 09.E229.1X
  • DELPHI : BG5051C
  • FEBI BILSTEIN : 181239
  • FTE : 9082820
  • MEYLE : 11-83 521 0048/PD
  • MINTEX : MDC2962C
  • MINTEX : MDC3094C
  • NAPA : NBD5898
  • National : NBD2166
  • TEXTAR : 92321203
  • TEXTAR : 92341103
  • TRW : DF6838
  • VALEO : 673694
  • BOSCH : BD2837
  • BOSCH : E1 90R-02C0349/0026
