Bosch 0986479G13 Brake Disc - 1
Bosch 0986479G13 Brake Disc - 1
BOSCH

Bosch 0986479G13 Brake Disc

SKU: 0986479G13
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£157.65 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
5 (G30, F90)
Description Cylinder Capacity Horse Power Year
530 i 1998 CCM 252 HP 09/2016 - 06/2020
530 i xDrive 1998 CCM 252 HP 09/2016 - 06/2020
540 i 2998 CCM 340 HP 09/2016 - 06/2020
540 i xDrive 2998 CCM 340 HP 09/2016 - 06/2020
M 550 i xDrive 4395 CCM 462 HP 03/2017 - 06/2019
520 d 1995 CCM 190 HP 09/2016 - 06/2023
520 d xDrive 1995 CCM 190 HP 09/2016 - 06/2023
530 d 2993 CCM 265 HP 09/2016 - 06/2020
530 d xDrive 2993 CCM 265 HP 09/2016 - 06/2020
520 d 1995 CCM 163 HP 09/2016 - 06/2023
520 d xDrive 1995 CCM 163 HP 09/2016 - 06/2023
540 i 2998 CCM 360 HP 09/2016 - 06/2020
540 i xDrive 2998 CCM 360 HP 09/2016 - 06/2020
530 e Plug-in Hybrid 1998 CCM 252 HP 03/2017 - 06/2020
530 e Plug-in-Hybrid xDrive 1998 CCM 252 HP 03/2017 - 06/2023
5 Touring (G31)
Description Cylinder Capacity Horse Power Year
530 i 1998 CCM 252 HP 03/2017 - 06/2020
540 i xDrive 2998 CCM 340 HP 03/2017 - 06/2020
540 i xDrive 2998 CCM 360 HP 03/2017 - 06/2020
520 d 1995 CCM 190 HP From 03/2017
530 d 2993 CCM 265 HP 03/2017 - 06/2020
530 d xDrive 2993 CCM 265 HP 03/2017 - 06/2020
520 d 1995 CCM 163 HP From 03/2017
M 550 d xDrive 2993 CCM 400 HP From 07/2017
540 d xDrive 2993 CCM 320 HP 07/2017 - 06/2020
525 d 1995 CCM 231 HP 07/2017 - 06/2019
520 d xDrive 1995 CCM 190 HP From 07/2017
530 i xDrive 1998 CCM 252 HP 07/2017 - 06/2020
520 i 1998 CCM 184 HP 07/2017 - 06/2020
520 i 1998 CCM 163 HP 07/2017 - 06/2020
525 d 1995 CCM 211 HP 07/2017 - 06/2019
6 Gran Turismo (G32)
Description Cylinder Capacity Horse Power Year
630 i 1998 CCM 258 HP 07/2017 - 06/2020
640 i 2998 CCM 340 HP 06/2017 - 06/2020
640 i xDrive 2998 CCM 340 HP 06/2017 - 06/2020
630 d 2993 CCM 265 HP 06/2017 - 06/2020
630 d xDrive 2993 CCM 265 HP 06/2017 - 06/2020
640 d xDrive 2993 CCM 320 HP 11/2017 - 06/2020
640 i 2998 CCM 360 HP 06/2017 - 06/2020
640 i xDrive 2998 CCM 360 HP 06/2017 - 06/2020
620 d 1995 CCM 190 HP 07/2018 - 06/2020
620 d xDrive 1995 CCM 190 HP 07/2018 - 06/2020
620 d 1995 CCM 163 HP 07/2018 - 06/2020
620 d xDrive 1995 CCM 163 HP 07/2018 - 06/2020
630 i 1998 CCM 249 HP 06/2017 - 06/2020
630 i xDrive 2998 CCM 258 HP From 07/2019
630 i Mild-Hybrid 1998 CCM 258 HP From 07/2020
7 (G11, G12)
Description Cylinder Capacity Horse Power Year
740 i, Li 2998 CCM 326 HP 07/2015 - 02/2019
750 i, Li xDrive 4395 CCM 449 HP 09/2015 - 02/2019
730 d, Ld 2993 CCM 265 HP 09/2015 - 06/2020
730 d, Ld xDrive 2993 CCM 265 HP 09/2015 - 06/2020
730 d 2993 CCM 211 HP 07/2015 - 06/2020
730 d xDrive 2993 CCM 211 HP 09/2015 - 06/2020
750 i, Li 4395 CCM 449 HP 11/2015 - 02/2019
740 d, Ld xDrive 2993 CCM 320 HP 11/2015 - 06/2020
740 Li xDrive 2998 CCM 326 HP 03/2016 - 02/2019
740 e, Le 1998 CCM 326 HP 07/2016 - 02/2019
740 Le xDrive 1998 CCM 326 HP 07/2016 - 02/2019
750 d, Ld xDrive 2993 CCM 400 HP 07/2016 - 10/2020
725 d, Ld 1995 CCM 231 HP 07/2016 - 02/2019
730 i, Li 1998 CCM 265 HP 03/2019 - 06/2022

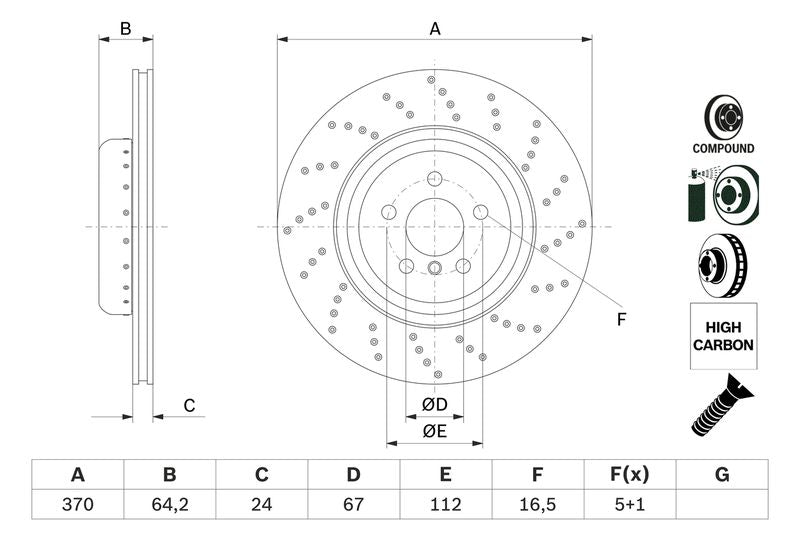

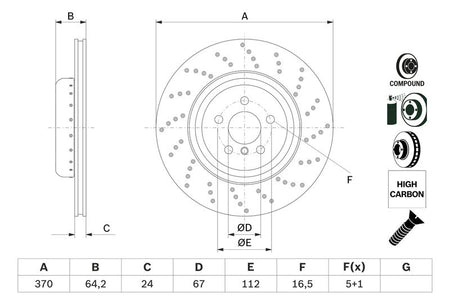

The Bosch 0986479G13 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 370 mm outer diameter, 24 mm brake disc thickness, 22.4 mm minimum thickness, and perforated, two-piece brake disc, and Vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 370
Brake Disc Thickness [mm] : 24
Minimum thickness [mm] : 22.4
Height [mm] : 64.2
Bolt Hole Circle Ø [mm] : 112
Brake Disc Type : Perforated
Brake Disc Type : two-piece brake disc
Brake Disc Type : Vented
Centering Diameter [mm] : 67
Number of Holes : 5
Surface : Coated
Machining : High-carbon
Supplementary Article/Supplementary Info 2 : with bolts/screws
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 16.5
Paired article number : 0 986 479 G12
  • Vendor BOSCH
  • SKU 0986479G13
  • Barcode 4047026477023
  • BMW : 34 21 6 878 180
  • BLUE PRINT : ADBP430212
  • BREMBO : 09.D901.33
  • FEBI BILSTEIN : 193335
  • National : NBD2398
  • BOSCH : BD2857
  • BOSCH : E1 90R-02C0540/0053
