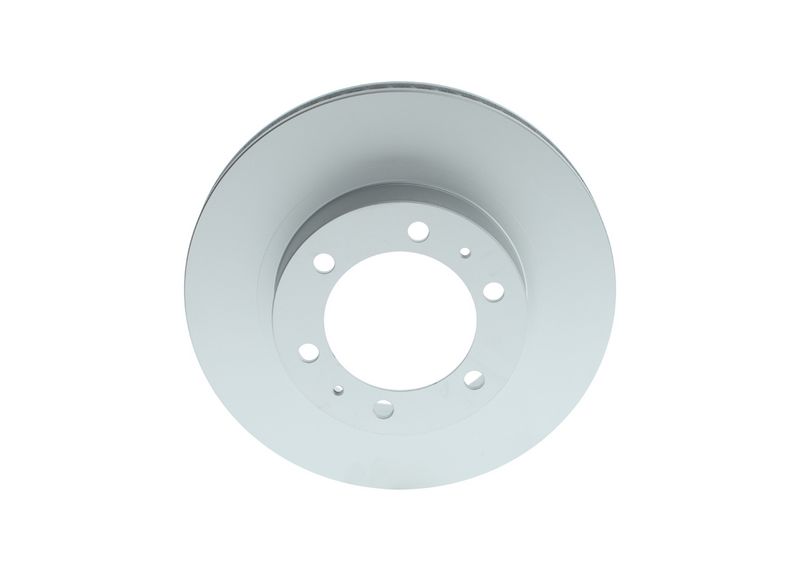

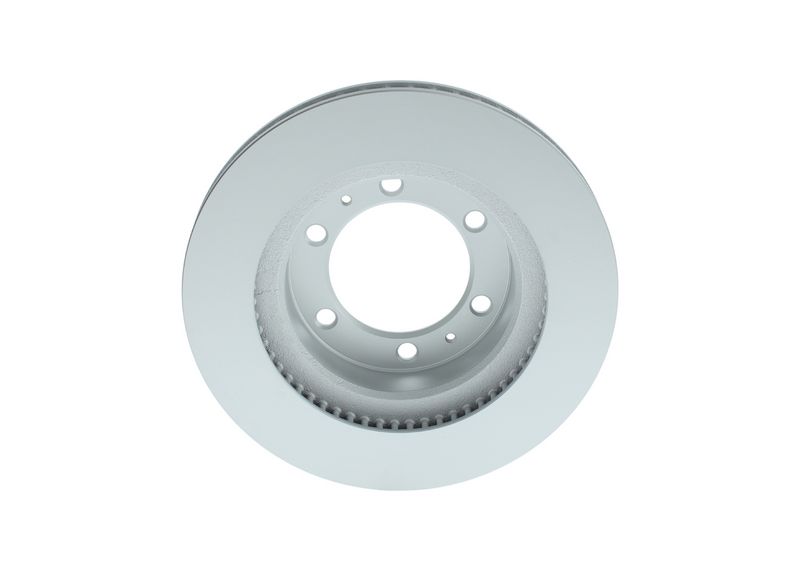

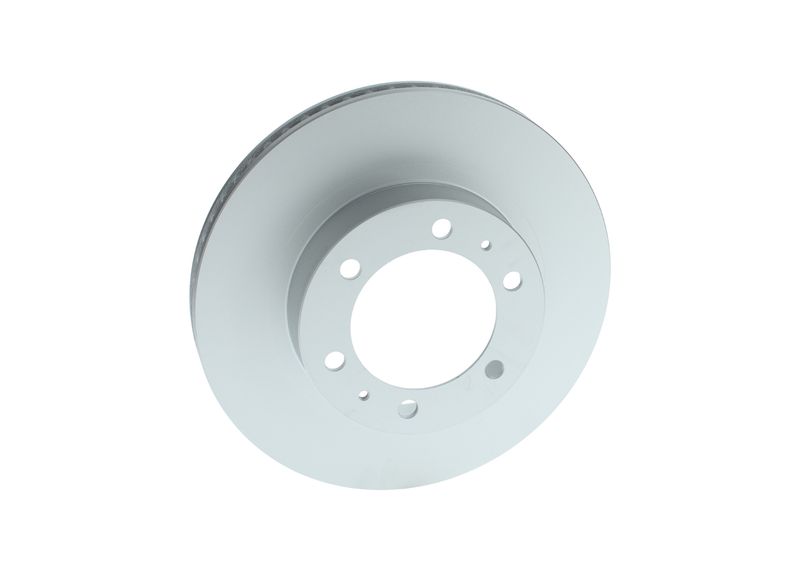

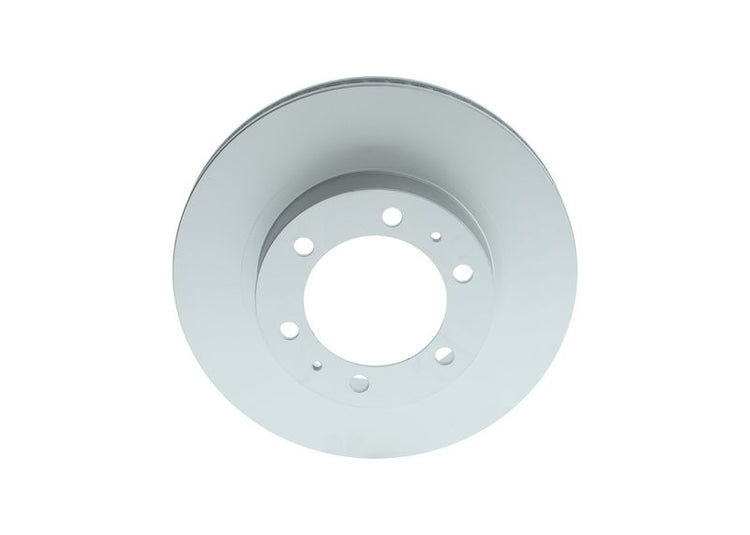

Bosch 0986479G19 Brake Disc
Your selected vehicle
Regular price
£105.91
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Bosch 0986479G19 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 319 mm outer diameter, 28 mm brake disc thickness, 26 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Disc

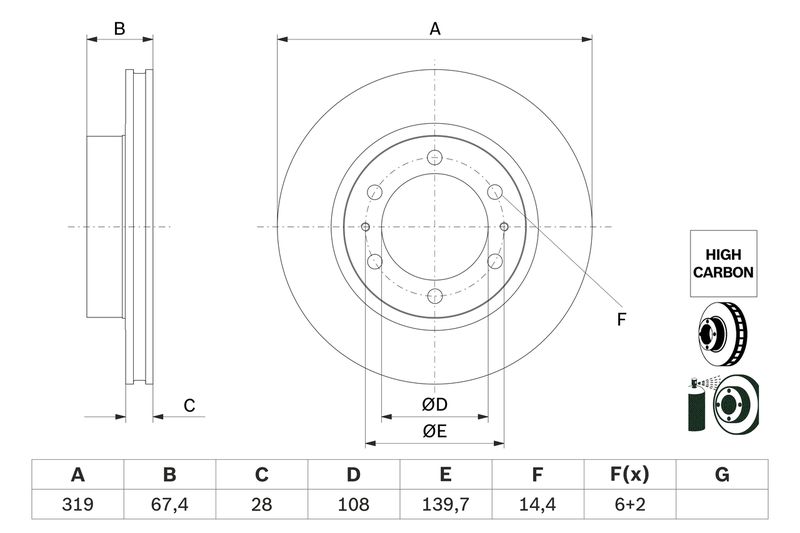

Outer Diameter [mm] :
319
Brake Disc Thickness [mm] :
28
Minimum thickness [mm] :
26
Height [mm] :
67.4
Bolt Hole Circle Ø [mm] :
139.7
Brake Disc Type :
Vented
Centering Diameter [mm] :
108
Number of Holes :
6
Surface :
Coated
Machining :
High-carbon
fulfils ECE standard :
ECE-R90
Bore Diameter up to [mm] :
14.4
- Vendor BOSCH
- SKU 0986479G19
- TOYOTA : 435120K090
- LEXUS : 435120K090
- APEC : DSK3082
- BLUE PRINT : ADT343219
- BLUE PRINT : ADT343275
- BORG & BECK : BBD5289
- BREMBO : 09.D617.11
- BREMBO : 09.D617.1X
- DELPHI : BG4925C
- FEBI BILSTEIN : 108411
- FEBI BILSTEIN : 108490
- FTE : 9082639
- HELLA : 8DD 355 126-771
- MEYLE : 30-15 521 0132
- MINTEX : MDC2803C
- SKF : VKBD 81135 V1
- TEXTAR : 92274903
- TRW : DF6726S
- VALEO : 673235
- BOSCH : BD2863
- BOSCH : E1 90R-02C0074/1634
