BOSCH

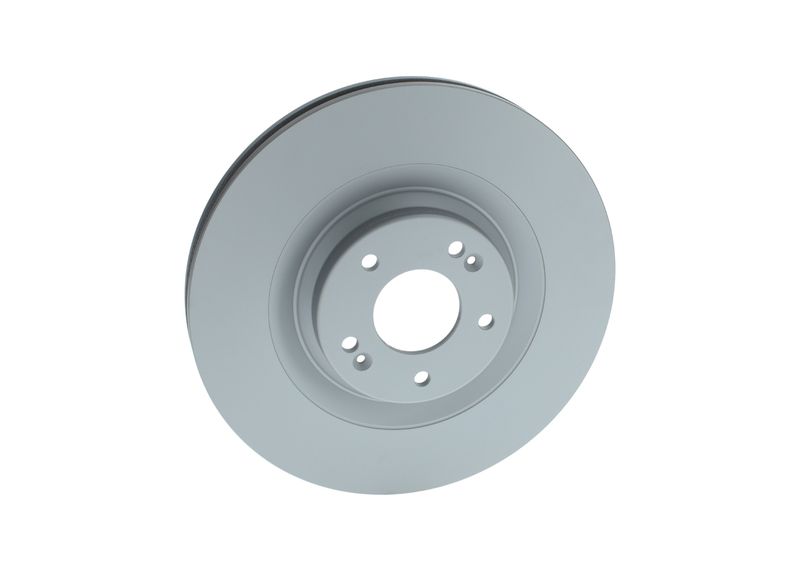

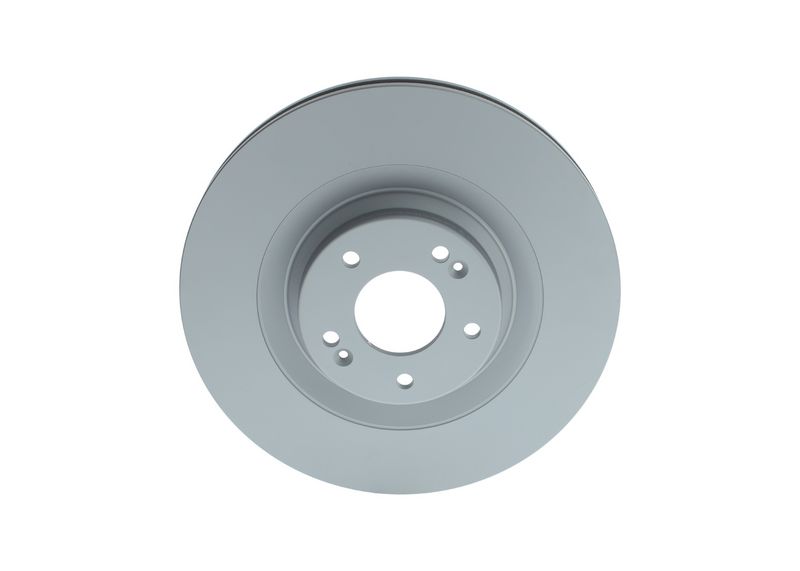

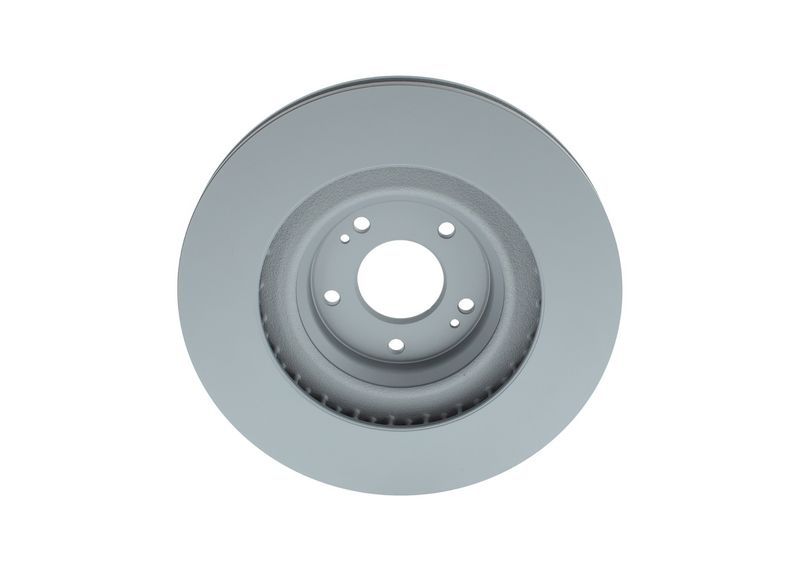

Bosch 0986479G26 Brake Disc

SKU: 0986479G26

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£65.05 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

HYUNDAI

i30 (PDE, PD, PDEN)

Description	Cylinder Capacity	Horse Power	Year
2.0 N	1998 CCM	250 HP	From 07/2017
2.0 N	1998 CCM	275 HP	From 07/2017

i30 FASTBACK (PDE, PDEN)

Description	Cylinder Capacity	Horse Power	Year
2.0 N	1998 CCM	250 HP	From 11/2017
2.0 N	1998 CCM	275 HP	11/2017 - 09/2020
2.0 N	1998 CCM	280 HP	From 03/2021

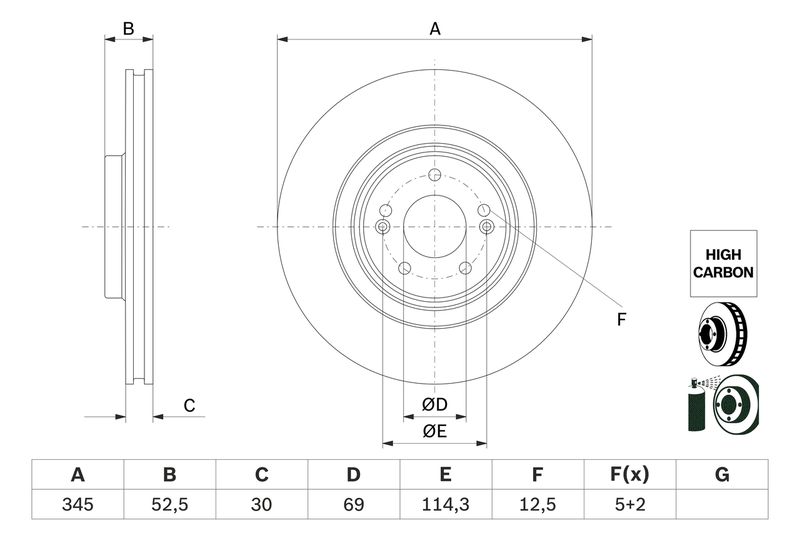

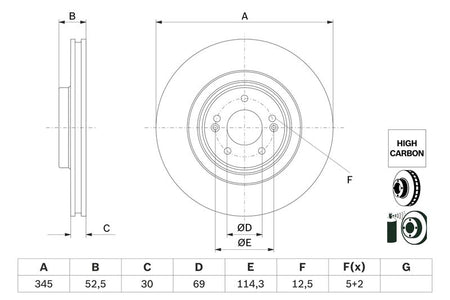

The Bosch 0986479G26 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 345 mm outer diameter, 30 mm brake disc thickness, 28 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 345

Brake Disc Thickness [mm] : 30

Minimum thickness [mm] : 28

Height [mm] : 52.5

Bolt Hole Circle Ø [mm] : 114.3

Brake Disc Type : Vented

Centering Diameter [mm] : 69

Number of Holes : 5

Surface : Coated

Machining : High-carbon

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 12.5

Bosch 0986479G26 Brake Disc
