Bosch 0986479G33 Brake Disc

SKU: 0986479G33
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£99.59 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

JAGUAR
F-PACE (X761)
Description Cylinder Capacity Horse Power Year
3.0 SCV6 AWD 2995 CCM 340 HP From 09/2015
3.0 SCV6 AWD 2995 CCM 380 HP From 09/2015
3.0 SDV6 AWD 2993 CCM 300 HP From 09/2015
2.0 TD4 1999 CCM 180 HP From 09/2015
2.0 TD4 AWD 1999 CCM 180 HP From 09/2015
2.0 TD4 1999 CCM 163 HP From 02/2017
2.0 SD4 AWD 1999 CCM 241 HP From 02/2017
2.0 Ti4 AWD 1997 CCM 250 HP From 02/2017
2.0 Ti4 AWD 1997 CCM 300 HP From 06/2017
I-PACE (X590)
Description Cylinder Capacity Horse Power Year
EV400 AWD 400 HP From 02/2018
XE (X760)
Description Cylinder Capacity Horse Power Year
2.0 D 1999 CCM 163 HP From 03/2015
2.0 D 1999 CCM 180 HP From 03/2015
2.0 1999 CCM 200 HP From 03/2015
2.0 1999 CCM 241 HP From 03/2015
3.0 S 2995 CCM 340 HP From 03/2015
2.0 D AWD 1999 CCM 180 HP From 10/2015
2.0 D AWD 1999 CCM 241 HP From 02/2017
2.0 1997 CCM 250 HP From 02/2017
2.0 AWD 1997 CCM 250 HP From 02/2017
3.0 S 2995 CCM 381 HP From 02/2017
2.0 AWD 1997 CCM 300 HP From 06/2017
2.0 1997 CCM 200 HP From 02/2017
2.0 D200 MHEV 1997 CCM 204 HP From 11/2020
XF II (X260)
Description Cylinder Capacity Horse Power Year
3.0 2995 CCM 340 HP From 05/2015
3.0 2995 CCM 380 HP From 05/2015
3.0 D 2993 CCM 300 HP From 05/2015
2.0 D 1999 CCM 163 HP From 05/2015
2.0 D 1999 CCM 180 HP From 05/2015
3.0 AWD 2995 CCM 340 HP From 07/2015
3.0 AWD 2995 CCM 380 HP From 07/2015
2.0 D AWD 1999 CCM 180 HP From 03/2016
2.0 D 1999 CCM 241 HP From 03/2017
2.0 D AWD 1999 CCM 241 HP From 03/2017
2.0 1997 CCM 200 HP From 03/2017
2.0 1997 CCM 250 HP From 03/2017
2.0 AWD 1997 CCM 250 HP From 03/2017
2.0 AWD 1997 CCM 300 HP From 09/2017
XF SPORTBRAKE (X260)
Description Cylinder Capacity Horse Power Year
2.0 D 1999 CCM 163 HP From 07/2017
2.0 D 1999 CCM 180 HP From 07/2017
2.0 D AWD 1999 CCM 180 HP From 07/2017
2.0 D AWD 1999 CCM 241 HP From 07/2017
3.0 D 2993 CCM 300 HP From 07/2017
2.0 1997 CCM 250 HP From 07/2017
3.0 AWD 2995 CCM 380 HP From 07/2017
3.0 2995 CCM 380 HP From 07/2017
2.0 1997 CCM 200 HP From 07/2017
2.0 AWD 1997 CCM 300 HP From 08/2018
2.0 D200 MHEV 1997 CCM 204 HP From 11/2020
2.0 D200 MHEV AWD 1997 CCM 204 HP From 11/2020
LAND ROVER
RANGE ROVER VELAR (L560)
Description Cylinder Capacity Horse Power Year
2.0 D180 TD4 4x4 1999 CCM 180 HP From 03/2017
2.0 D240 SD4 4x4 1999 CCM 241 HP From 03/2017
3.0 P380 SCV6 4x4 2995 CCM 380 HP From 03/2017
2.0 P250 Si4 4x4 1997 CCM 250 HP From 03/2017
3.0 D300 SDV6 4x4 2993 CCM 300 HP From 03/2017
2.0 P300 Si4 4x4 1997 CCM 300 HP From 03/2017
3.0 D275 SDV6 4x4 2993 CCM 275 HP From 04/2018
3.0 P340 SCV6 4x4 2995 CCM 340 HP From 04/2018
2.0 D200 MHEV 4x4 1997 CCM 204 HP From 07/2020
3.0 D300 MHEV 4x4 2997 CCM 300 HP From 07/2020
3.0 P400 MHEV 4x4 2995 CCM 400 HP From 07/2020
2.0 P400 Hybrid 4x4 1997 CCM 404 HP From 07/2020

The Bosch 0986479G33 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 350 mm outer diameter, 32 mm brake disc thickness, 30 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

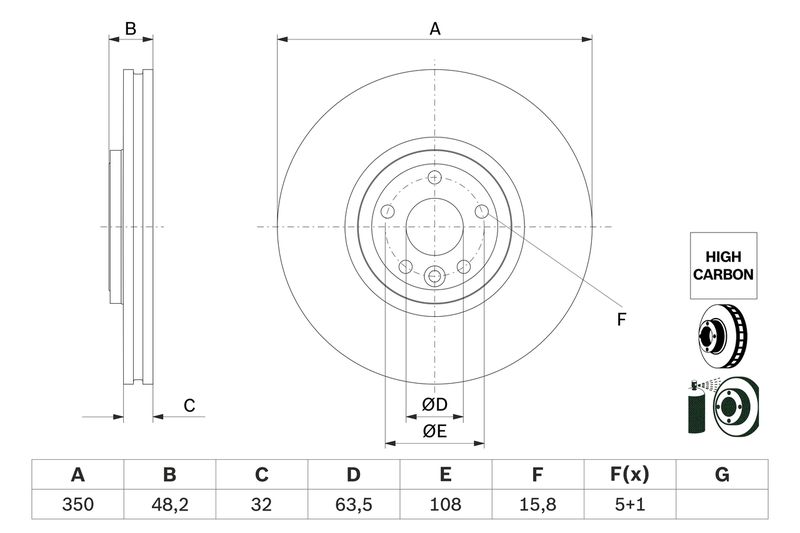

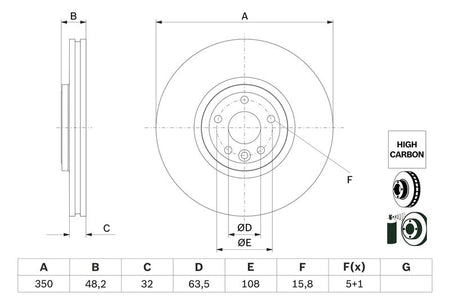

Function : Brake Disc
Outer Diameter [mm] : 350
Brake Disc Thickness [mm] : 32
Minimum thickness [mm] : 30
Height [mm] : 48.2
Bolt Hole Circle Ø [mm] : 108
Brake Disc Type : Vented
Centering Diameter [mm] : 63.5
Number of Holes : 5
Surface : Coated
Machining : High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 15.8
  • Vendor BOSCH
  • SKU 0986479G33
  • Barcode 4047023057266
  • JAGUAR : T4A2343 T4K5014 T4N1803
  • LAND ROVER : LR090685 LR141755 LR161916
  • APEC : DSK3184
  • APEC : DSK3385
  • APEC : SDK6964
  • APEC : SDK6990
  • BLUE PRINT : ADJ134367
  • BLUE PRINT : ADJ134374
  • BORG & BECK : BBD6103S
  • BORG & BECK : BBD6144S
  • BREMBO : 09.D064.11
  • BREMBO : 09.D064.21
  • DELPHI : BG9167C
  • DELPHI : BG9178C
  • Fahren : FBD6964
  • FEBI BILSTEIN : 107221
  • FEBI BILSTEIN : 108677
  • FTE : 9082903
  • HELLA : 8DD 355 132-481
  • MINTEX : MDC2906C
  • MINTEX : MDC2907C
  • NAPA : NBD5704
  • NAPA : NBD5841
  • TEXTAR : 92308105
  • TEXTAR : 92308205
  • BOSCH : BD2877
  • BOSCH : E1 90R-02C0674/0220
