BOSCH

Bosch 0986479G63 Brake Disc

SKU: 0986479G63

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£57.51 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA

RAV 4 IV (_A4_)

Description	Cylinder Capacity	Horse Power	Year
2.0 4WD (ZSA44)	1987 CCM	146 HP	12/2012 - 09/2019
2.0 D (ALA40_, ALA40R)	1998 CCM	124 HP	12/2012 - 11/2018
2.0 4WD (ZSA44_, ZSA44R)	1987 CCM	151 HP	12/2012 - 10/2018
2.2 D 4WD (ALA49)	2231 CCM	150 HP	12/2012 - 09/2019
2.0 D 4WD (ALA41_)	1998 CCM	124 HP	01/2013 - 11/2018
2.0 4WD (ZSA44_)	1987 CCM	151 HP	04/2015 - 10/2018
2.5 Hybrid 4WD (AVA44, AVA44_)	2494 CCM	197 HP	11/2015 - 11/2018
2.0 D (WWA42_)	1995 CCM	143 HP	10/2015 - 11/2018
2.5 Hybrid (AVA42_)	2494 CCM	197 HP	11/2015 - 11/2018

RAV 4 IV VAN (_A4_)

Description	Cylinder Capacity	Horse Power	Year
2.0 VVTi 4WD (ZSA44)	1987 CCM	152 HP	12/2012 - 11/2018

LEXUS

NX (_Z1_)

Description	Cylinder Capacity	Horse Power	Year
200t (AGZ10_, AGZ10R)	1998 CCM	238 HP	From 07/2014
200t AWD (AGZ15_, AGZ15R)	1998 CCM	238 HP	From 07/2014
300h (AYZ10_, AYZ10R)	2493 CCM	197 HP	From 07/2014
300 AWD (AGZ15_, AGZ15R)	1998 CCM	238 HP	From 09/2017
300h AWD (AYZ15, AYZ15_, AYZ15R)	2494 CCM	197 HP	From 07/2014
300h AWD (AYZ15)	2494 CCM	200 HP	From 11/2018
300h (AYZ10_, AYZ10R)	2494 CCM	197 HP	From 11/2014

RX (_L1_)

Description	Cylinder Capacity	Horse Power	Year
350 AWD (GGL15_, GGL15R)	3456 CCM	277 HP	12/2008 - 08/2015

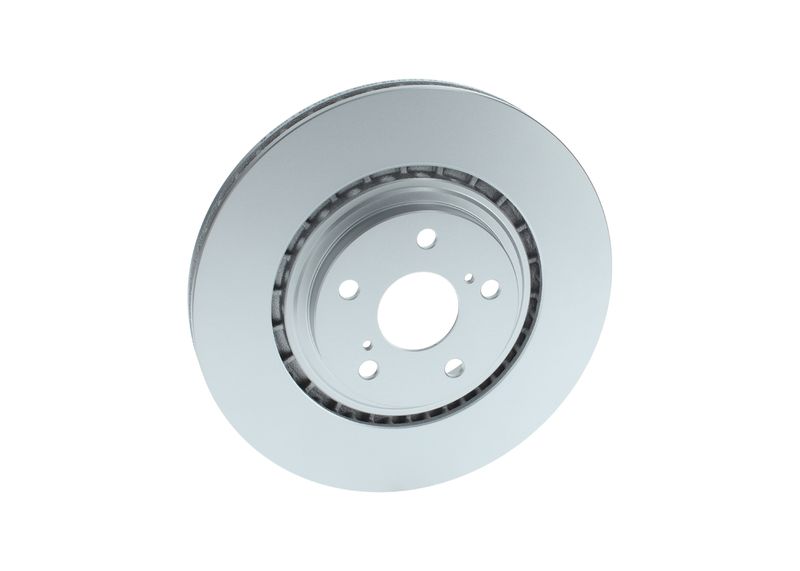

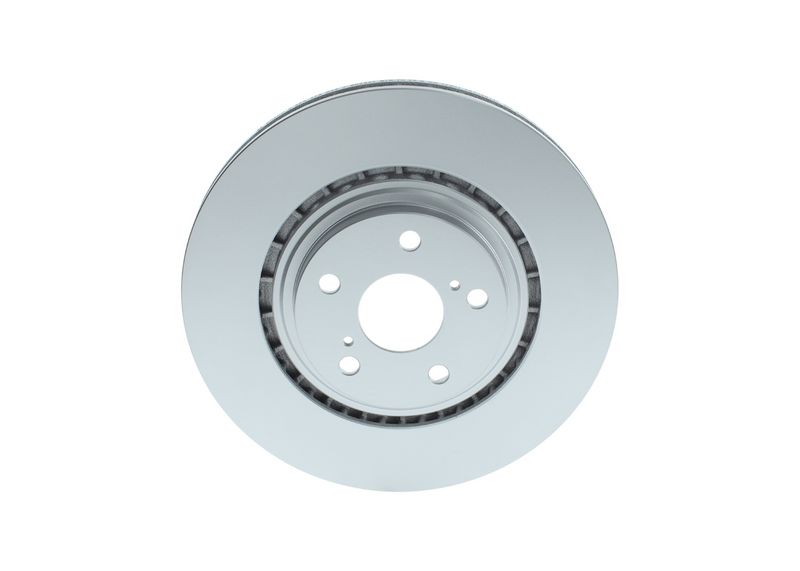

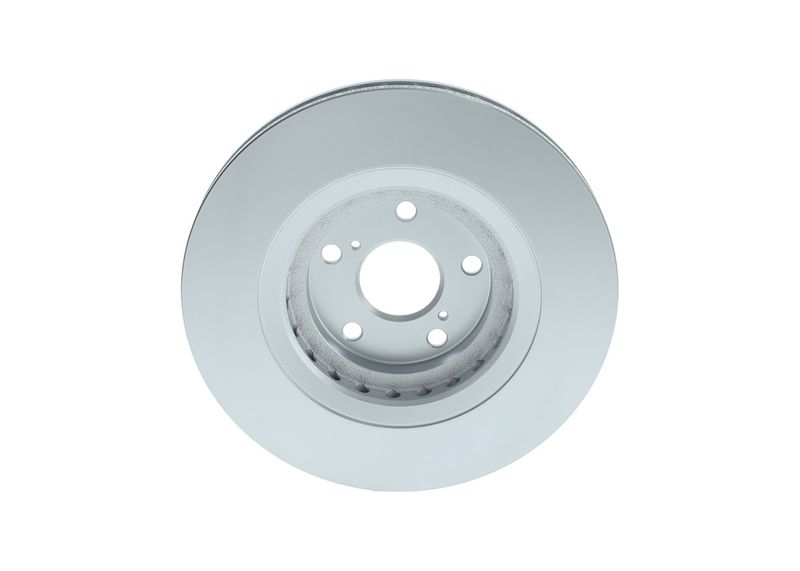

The Bosch 0986479G63 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 328.3 mm outer diameter, 28 mm brake disc thickness, 25 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

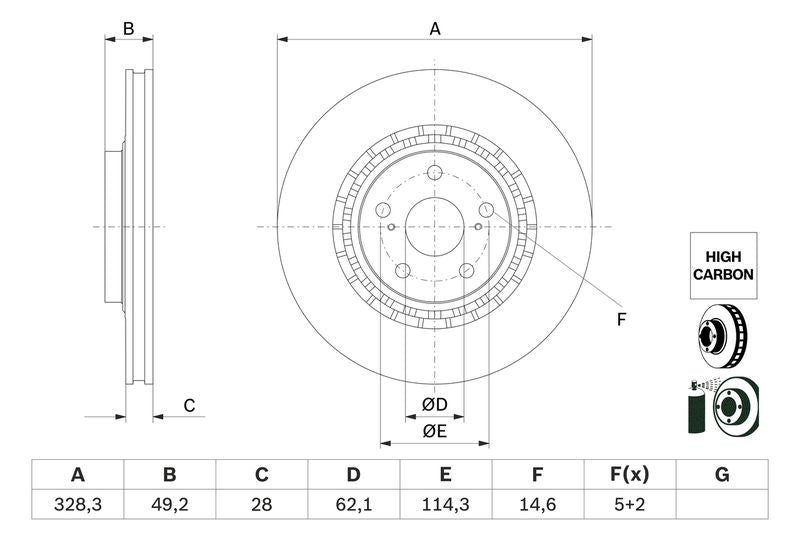

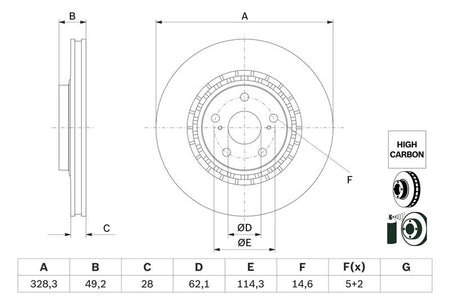

Function : Brake Disc

Outer Diameter [mm] : 328.3

Brake Disc Thickness [mm] : 28

Minimum thickness [mm] : 25

Height [mm] : 49.2

Bolt Hole Circle Ø [mm] : 114.3

Brake Disc Type : Vented

Centering Diameter [mm] : 62.1

Number of Holes : 5

Surface : Coated

Machining : High-carbon

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 14.6

APEC : DSK2887
BLUE PRINT : ADT343278
BORG & BECK : BBD5229
BREMBO : 09.C499.11
BREMBO : 09.C499.1X
DELPHI : BG4691C
FEBI BILSTEIN : 108464
FTE : 9082798
MINTEX : MDC2629
NAPA : NBD5815
National : NBD2175
SKF : VKBD 80342 V1
TEXTAR : 92259403
TEXTAR : 92259405
TRW : DF6265
VALEO : 672698

Bosch 0986479G63 Brake Disc
