BOSCH

Bosch 0986479G68 Brake Disc

SKU: 0986479G68
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£47.80 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost 998 CCM 100 HP 11/2013 - 12/2022
1.5 TDCi 1499 CCM 101 HP 05/2015 - 12/2022
1.5 TDCi 1499 CCM 75 HP 05/2015 - 12/2022
1.5 TDCi 1499 CCM 120 HP 05/2015 - 12/2022
1.5 EcoBlue 1499 CCM 120 HP 05/2018 - 12/2022
1.5 EcoBlue 1499 CCM 101 HP 05/2018 - 12/2022
1.5 EcoBlue 1499 CCM 75 HP 05/2018 - 12/2022
1.5 TDCi 1499 CCM 95 HP 08/2016 - 12/2022
TRANSIT CONNECT MPV
Description Cylinder Capacity Horse Power Year
1.5 TDCi 1499 CCM 101 HP From 05/2015
1.5 TDCi 1499 CCM 120 HP From 05/2015
1.5 TDCi 1499 CCM 75 HP From 08/2015
1.5 EcoBlue 1499 CCM 101 HP From 05/2018
1.5 EcoBlue 1499 CCM 120 HP From 05/2018
1.5 EcoBlue 1499 CCM 75 HP From 05/2018
TRANSIT CONNECT V408 Box Body/MPV
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost 998 CCM 100 HP From 09/2013
1.5 TDCi 1499 CCM 101 HP From 05/2015
1.5 TDCi 1499 CCM 120 HP From 05/2015
1.5 TDCi 1499 CCM 75 HP From 08/2015
1.5 EcoBlue 1499 CCM 101 HP From 05/2018
1.5 EcoBlue 1499 CCM 120 HP From 05/2018
1.5 EcoBlue 1499 CCM 75 HP From 05/2018
1.5 TDCi 1499 CCM 95 HP From 03/2016

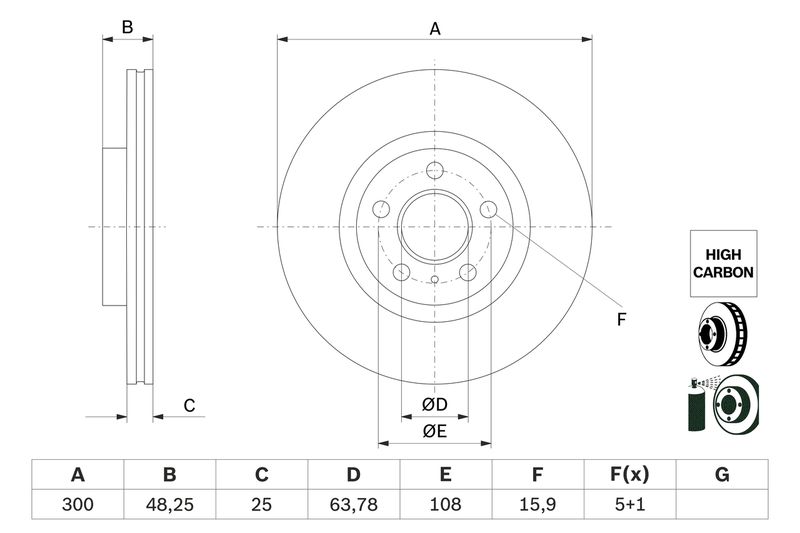

The Bosch 0986479G68 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 300 mm outer diameter, 25 mm brake disc thickness, 23 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 300
Brake Disc Thickness [mm] : 25
Minimum thickness [mm] : 23
Height [mm] : 48.3
Bolt Hole Circle Ø [mm] : 108
Brake Disc Type : Vented
Centering Diameter [mm] : 63.78
Number of Holes : 5
Surface : Coated
Machining : High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 15.9
  • Vendor BOSCH
  • SKU 0986479G68
  • Barcode 4047026576139
  • FORD : KV6C1125CB KV6C1125CC KV6C1125DC 2252901 2252903 2279487 2279488
  • APEC : DSK3742
  • BLUE PRINT : ADBP430227
  • BORG & BECK : BBD5639
  • BREMBO : 09.C541.21
  • DELPHI : BG5127C
  • FEBI BILSTEIN : 196211
  • HELLA : 8DD 355 133-531
  • MEYLE : 715 521 0056/PD
  • MINTEX : MDC2994C
  • NAPA : NBD5948
  • SKF : VKBD 81342 V1
  • TEXTAR : 92326003
  • TRW : DF6854S
  • BOSCH : BD2912
  • BOSCH : E1 90 R - 02 C0348/0792
