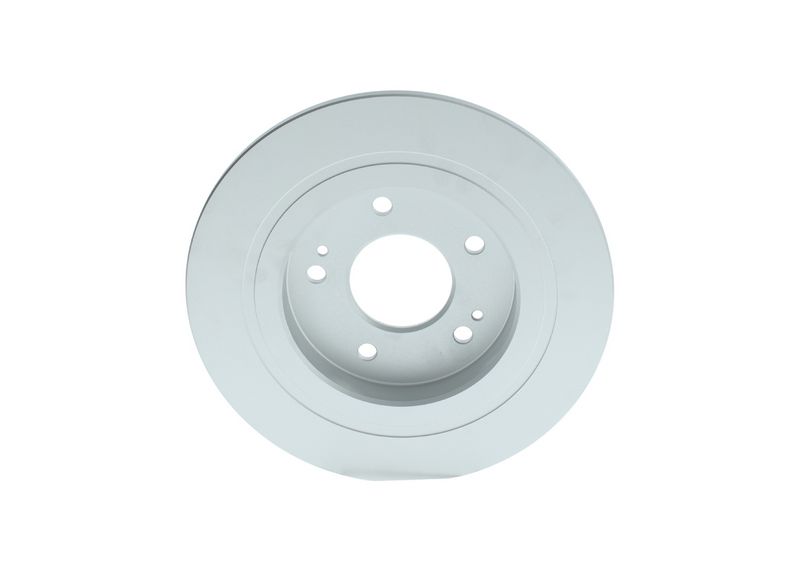

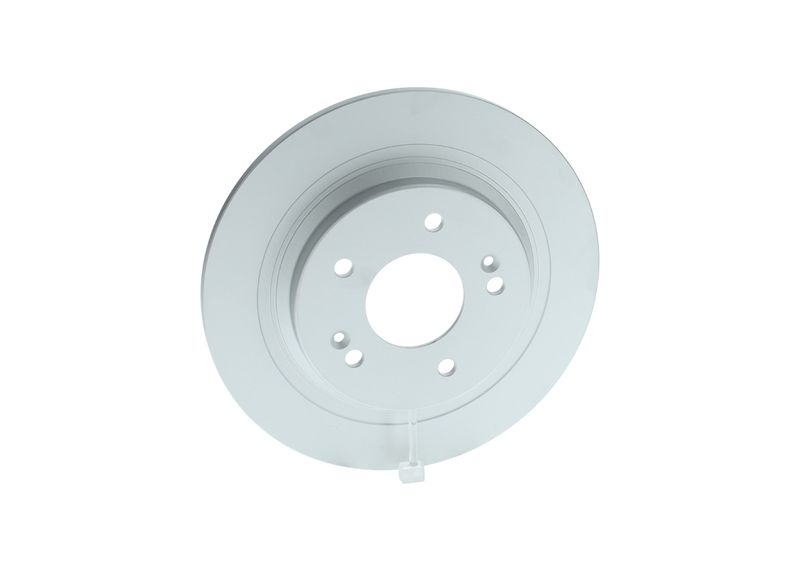

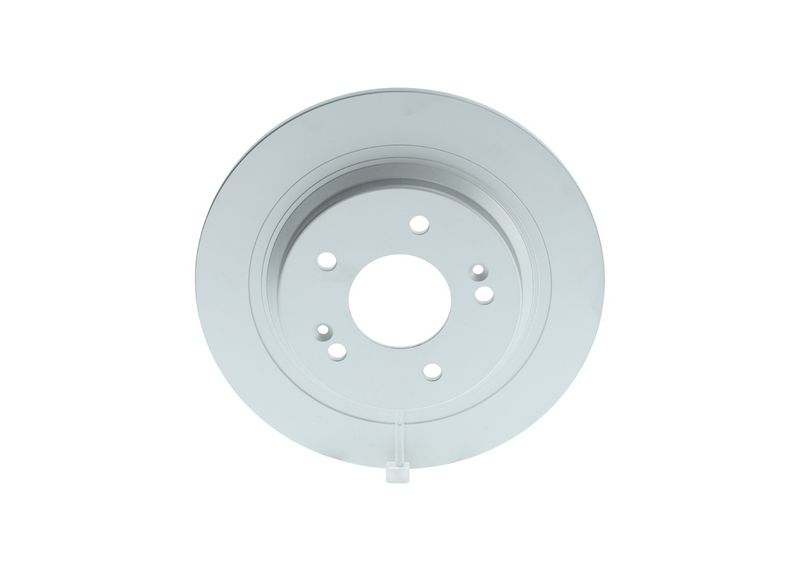

Bosch 0986479G77 Brake Disc
Your selected vehicle
Regular price
£63.38
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

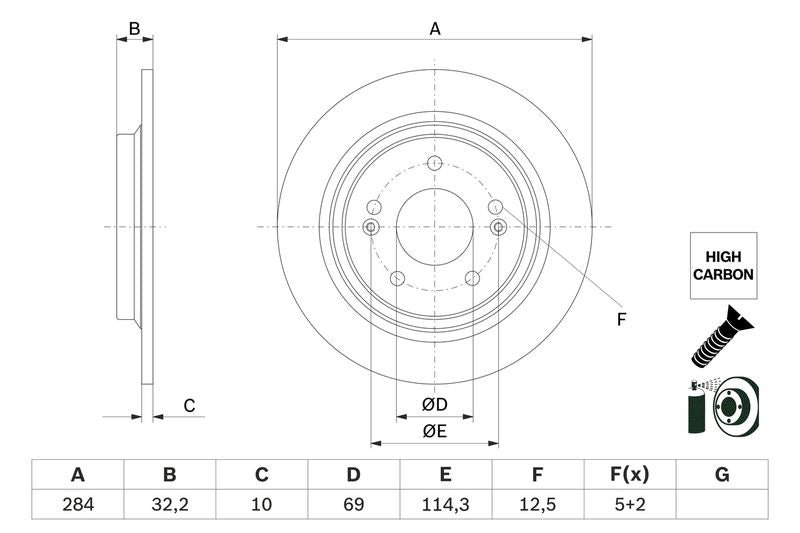

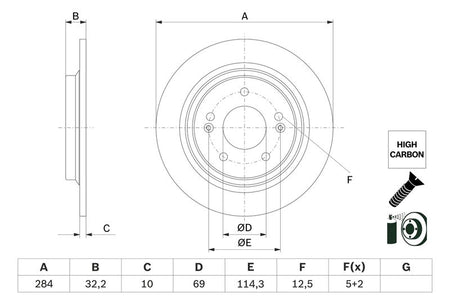

The Bosch 0986479G77 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 284 mm outer diameter, 10 mm brake disc thickness, 8 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Disc
Outer Diameter [mm] :
284
Brake Disc Thickness [mm] :
10
Minimum thickness [mm] :
8
Height [mm] :
32.2
Bolt Hole Circle Ø [mm] :
114.3
Brake Disc Type :
solid
Centering Diameter [mm] :
69
Number of Holes :
5
Surface :
Coated
Machining :
High-carbon
Supplementary Article/Supplementary Info 2 :
with bolts/screws
fulfils ECE standard :
ECE-R90
Bore Diameter up to [mm] :
12.5
- Vendor BOSCH
- SKU 0986479G77
- HYUNDAI : 58411J9500
- KIA : 58411 J9500
- APEC : DSK3454
- BORG & BECK : BBD5615
- BREMBO : 08.D882.11
- DELPHI : BG5173C
- HELLA : 8DD 355 132-921
- MINTEX : MDC2944C
- TEXTAR : 92316303
- BOSCH : BD2921
- BOSCH : E1 90R-02C0100/0199
