BOSCH

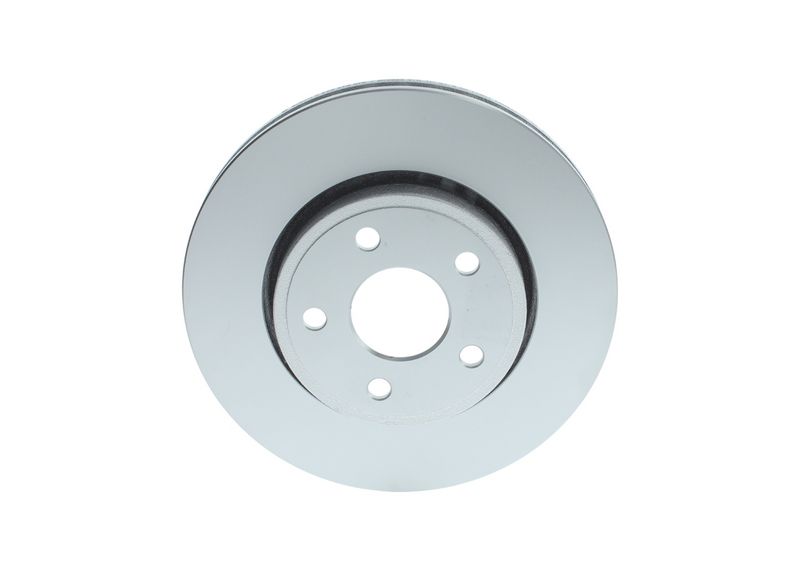

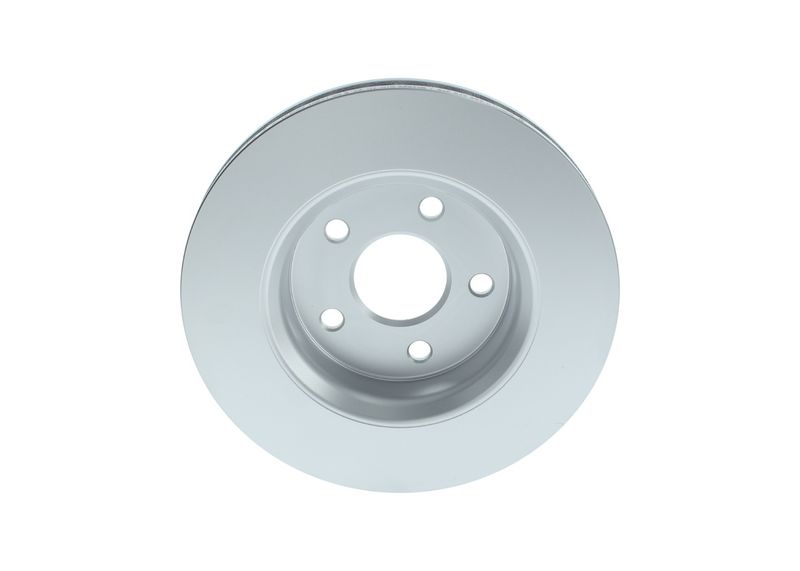

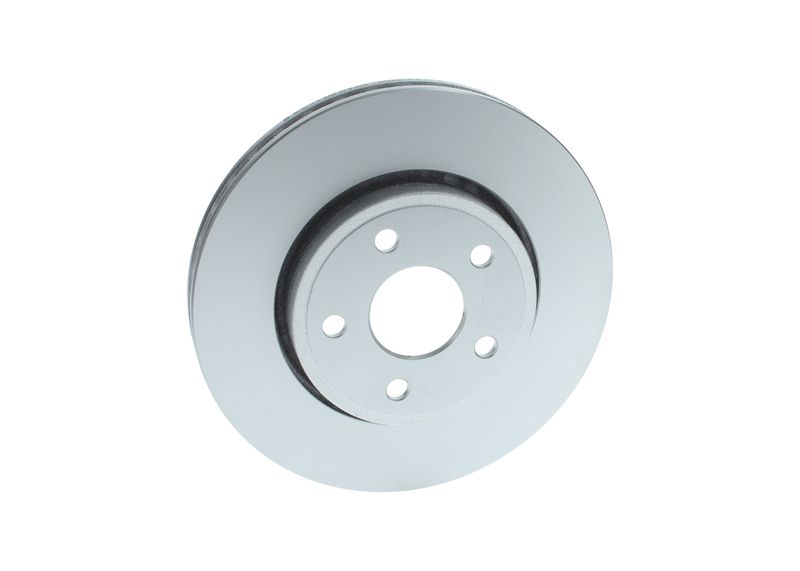

Bosch 0986479G78 Brake Disc

SKU: 0986479G78
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£75.52 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

JEEP
GRAND CHEROKEE IV (WK, WK2)
Description Cylinder Capacity Horse Power Year
3.6 V6 4x4 3604 CCM 286 HP From 11/2010
5.7 V8 4x4 5654 CCM 352 HP From 11/2010
3.0 CRD V6 4x4 2987 CCM 190 HP From 02/2011
3.0 CRD V6 4x4 2987 CCM 241 HP From 02/2011
6.4 SRT8 4x4 6417 CCM 468 HP From 03/2011
3.6 V6 3604 CCM 284 HP From 11/2010
3.6 VVT 4x4 3604 CCM 290 HP From 04/2016
3.0 CRD V6 4x4 2987 CCM 250 HP From 07/2013
6.4 SRT8 4x4 6417 CCM 472 HP From 06/2011
5.7 4x4 5654 CCM 364 HP From 01/2011
3.0 CRD V6 4x4 2987 CCM 218 HP From 01/2011
6.2 i V8 4x4 6166 CCM 710 HP From 09/2017
GRAND CHEROKEE VAN (WK2)
Description Cylinder Capacity Horse Power Year
5.7 HEMI 4x4 5654 CCM 352 HP From 07/2013
3.0 CRD 2987 CCM 190 HP From 01/2017
3.0 CRD 2987 CCM 250 HP From 07/2013

The Bosch 0986479G78 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 330 mm outer diameter, 32 mm brake disc thickness, 30.5 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

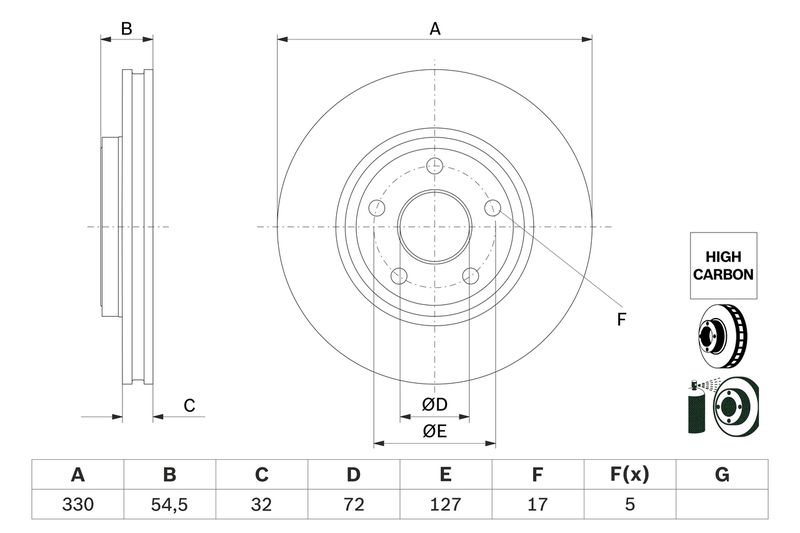

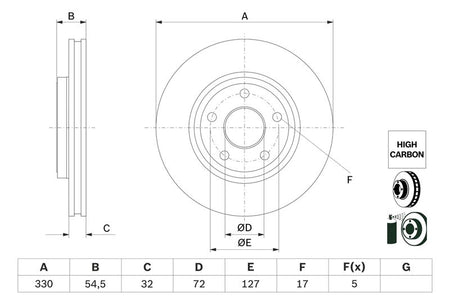

Function : Brake Disc
Outer Diameter [mm] : 330
Brake Disc Thickness [mm] : 32
Minimum thickness [mm] : 30.5
Height [mm] : 54.5
Bolt Hole Circle Ø [mm] : 127
Brake Disc Type : Vented
Centering Diameter [mm] : 72
Number of Holes : 5
Surface : Coated
Machining : High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 17
  • Vendor BOSCH
  • SKU 0986479G78
  • Barcode 4047023072825
  • CHRYSLER : 52124 762AB 52124 762AC 52124 762AD
  • JEEP : 52124 762AB 52124 762AC 52124 762AD
  • APEC : DSK2936
  • BLUE PRINT : ADA104362
  • BORG & BECK : BBD6004S
  • BREMBO : 09.N234.11
  • BREMBO : 09.N234.1X
  • DELPHI : BG9209C
  • FEBI BILSTEIN : 108584
  • FTE : 9082672
  • HELLA : 8DD 355 122-681
  • MINTEX : MDC2684
  • TEXTAR : 92274803
  • VALEO : 673501
  • BOSCH : BD2922
  • BOSCH : E1 90R-02C0411/1482
