BOSCH

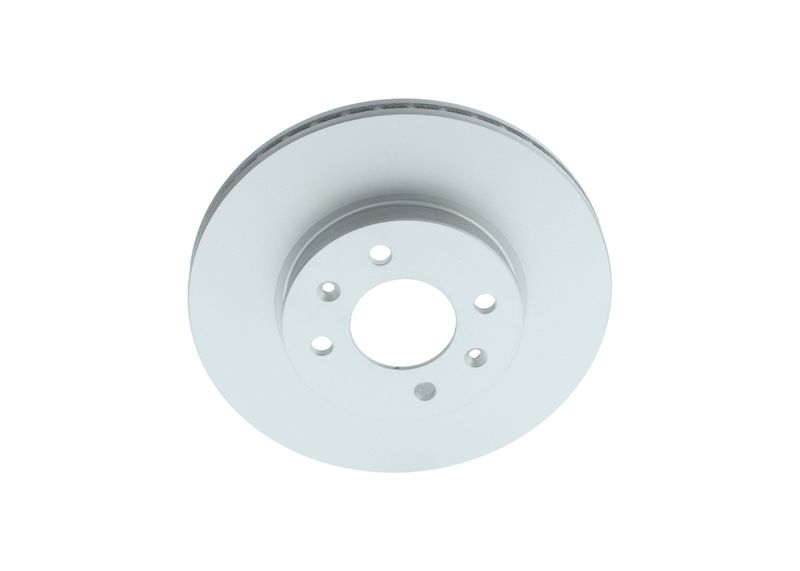

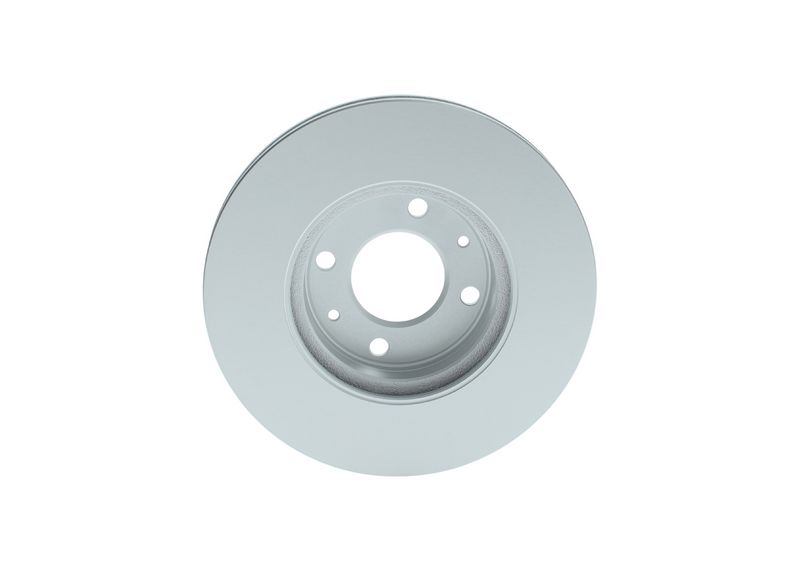

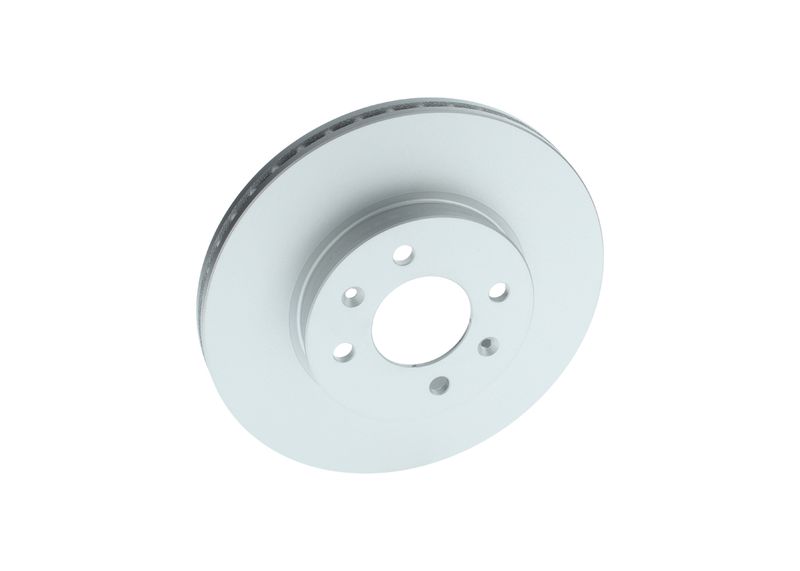

Bosch 0986479G86 Brake Disc

SKU: 0986479G86

Your selected vehicle

Out of stock

Out of Stock

£65.11 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

KIA

PICANTO II (TA)

Description	Cylinder Capacity	Horse Power	Year
1.2	1248 CCM	85 HP	05/2011 - 12/2016

PICANTO III (JA)

Description	Cylinder Capacity	Horse Power	Year
1.0	998 CCM	67 HP	From 03/2017
1.2	1248 CCM	84 HP	From 03/2017
1.0 T-GDi	998 CCM	100 HP	From 03/2017
1.0	998 CCM	69 HP	From 03/2017
1.0 LPG	998 CCM	65 HP	From 11/2018
1.2 MPI	1197 CCM	84 HP	From 07/2020
1.0	998 CCM	63 HP	From 05/2024
1.2 DPI	1197 CCM	79 HP	From 05/2024

The Bosch 0986479G86 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 256 mm outer diameter, 20 mm brake disc thickness, 18 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

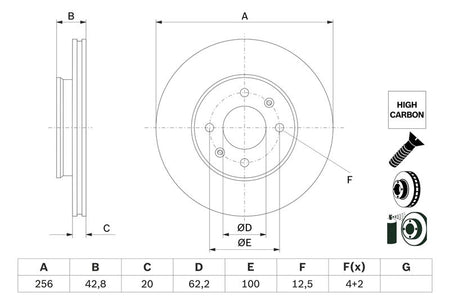

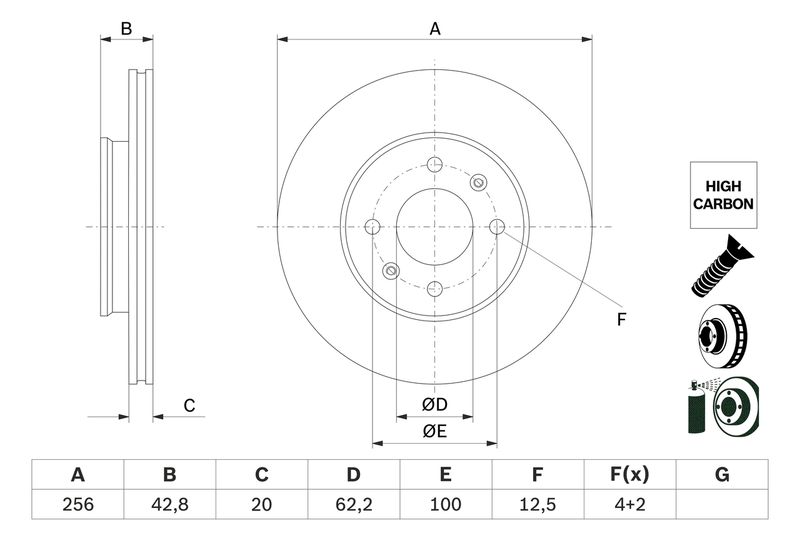

Function : Brake Disc

Outer Diameter [mm] : 256

Brake Disc Thickness [mm] : 20

Minimum thickness [mm] : 18

Height [mm] : 42.8

Bolt Hole Circle Ø [mm] : 100

Brake Disc Type : Vented

Centering Diameter [mm] : 62.2

Number of Holes : 4

Surface : Coated

Machining : High-carbon

Supplementary Article/Supplementary Info 2 : with bolts/screws

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 12.5

APEC : DSK3391
APEC : SDK6947
BLUE PRINT : ADG043234
BORG & BECK : BBD5528
BREMBO : 09.D607.11
DELPHI : BG5009C
Fahren : FBD6947
HELLA : 8DD 355 130-001
MINTEX : MDC2841C
NAPA : NBD5333
National : NBD2153
TEXTAR : 92295403
VALEO : 673405

Bosch 0986479G86 Brake Disc
