BOSCH

Bosch 0986479G93 Brake Disc

SKU: 0986479G93
Your selected vehicle
Out of stock
Out of Stock
£59.13 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

HYUNDAI
SANTA FÉ III (DM, DMA)
Description Cylinder Capacity Horse Power Year
2.4 GDI 2359 CCM 188 HP 05/2015 - 08/2018
SANTA FE IV (TM, TMA)
Description Cylinder Capacity Horse Power Year
2.0 CRDi 1995 CCM 186 HP 02/2018 - 07/2020
2.0 CRDi AWD 1995 CCM 186 HP 02/2018 - 07/2020
2.2 CRDi AWD 2199 CCM 203 HP From 02/2018
2.2 CRDi 2199 CCM 200 HP 07/2018 - 11/2020
2.2 CRDi AWD 2199 CCM 200 HP 07/2018 - 11/2020
2.4 GDI AWD 2359 CCM 185 HP 07/2018 - 07/2020
2.0 CRDi 1995 CCM 150 HP 07/2018 - 07/2020
2.0 CRDi AWD 1995 CCM 150 HP 07/2018 - 07/2020
2.4 GDI AWD 2359 CCM 188 HP 07/2018 - 07/2020
3.5 MPI AWD 3470 CCM 249 HP 07/2019 - 07/2020
KIA
SORENTO III (UM)
Description Cylinder Capacity Horse Power Year
2.2 CRDi 2199 CCM 200 HP 01/2015 - 08/2020
2.2 CRDi 4WD 2199 CCM 200 HP 01/2015 - 08/2020
2.4 GDI 4WD 2359 CCM 188 HP 01/2015 - 10/2018
2.4 GDI 2359 CCM 188 HP 01/2015 - 10/2018
2.2 CRDI 4WD 2199 CCM 197 HP 11/2016 - 12/2020

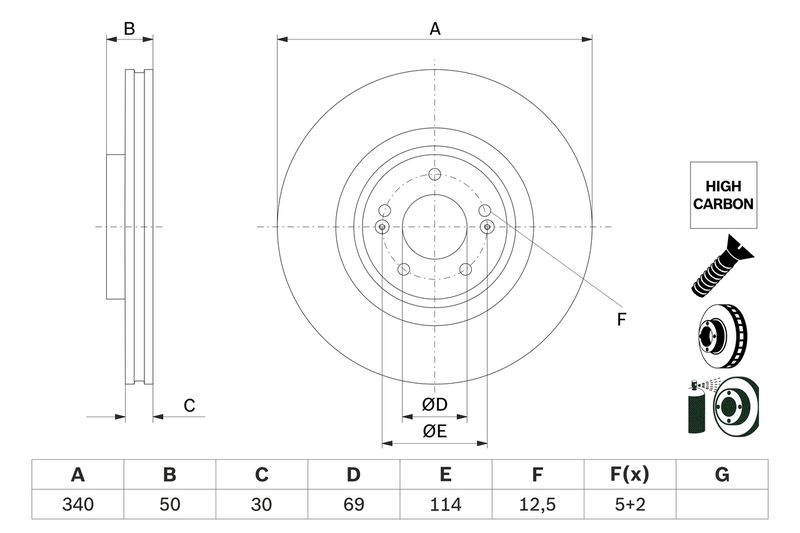

The Bosch 0986479G93 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 340 mm outer diameter, 30 mm brake disc thickness, 28 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 340
Brake Disc Thickness [mm] : 30
Minimum thickness [mm] : 28
Height [mm] : 50
Bolt Hole Circle Ø [mm] : 114
Brake Disc Type : Vented
Centering Diameter [mm] : 69
Number of Holes : 5
Surface : Coated
Machining : High-carbon
Supplementary Article/Supplementary Info 2 : with bolts/screws
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 12.5
  • Vendor BOSCH
  • SKU 0986479G93
  • Barcode 4047026599589
  • HYUNDAI : 51712C5700
  • KIA : 51712 C5700
  • APEC : DSK3590
  • BLUE PRINT : ADBP430077
  • BREMBO : 09.D990.11
  • DELPHI : BG9399C
  • FEBI BILSTEIN : 174536
  • HELLA : 8DD 355 134-871
  • MEYLE : 28-83 521 0028/PD
  • MINTEX : MDC3161C
  • National : NBD2220
  • TEXTAR : 92342803
  • BOSCH : BD2937
  • BOSCH : E1 90 R - 02 C0348/0761
