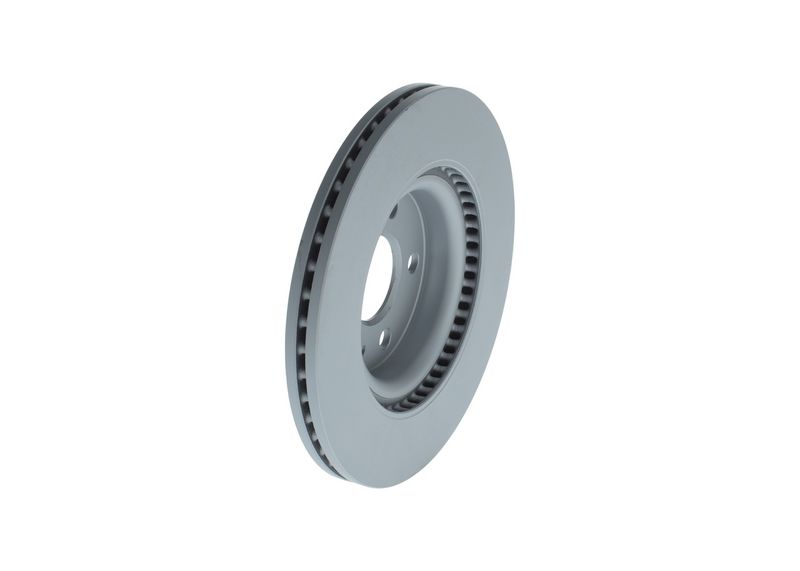

Bosch 0986479G94 Brake Disc - 1

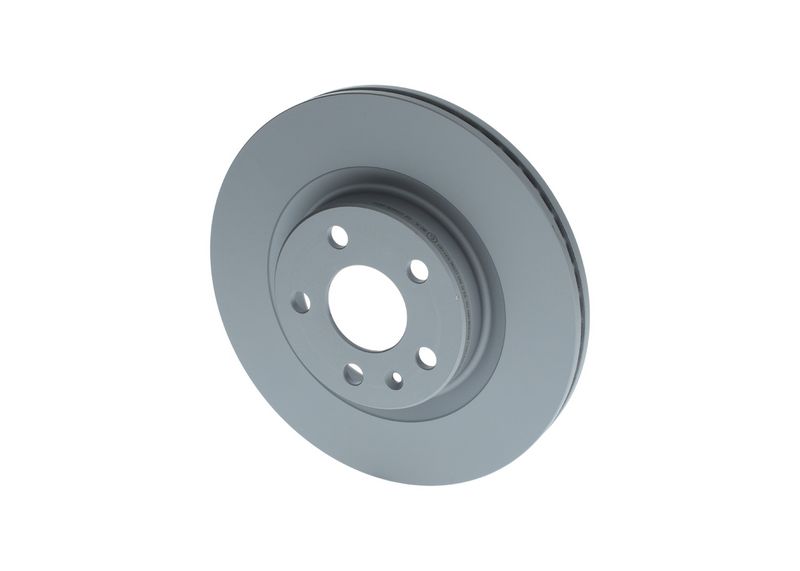

Bosch 0986479G94 Brake Disc - 2

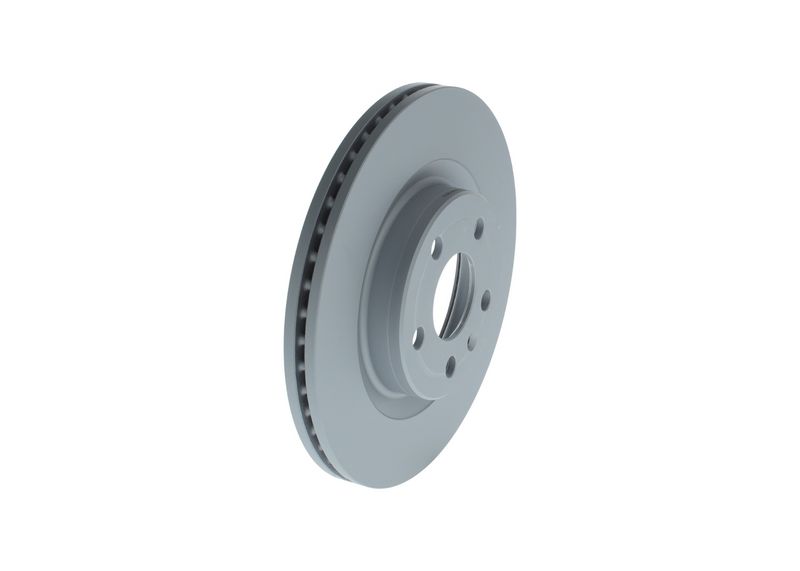

Bosch 0986479G94 Brake Disc - 3

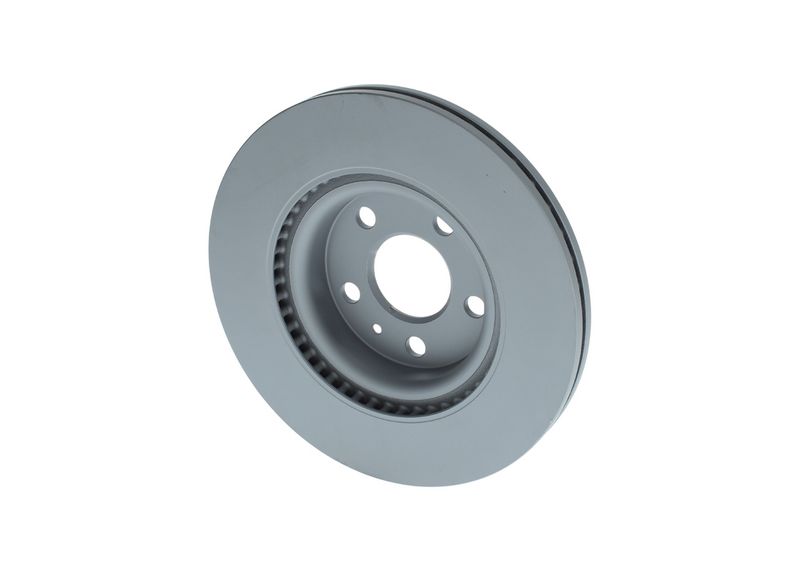

Bosch 0986479G94 Brake Disc - 4

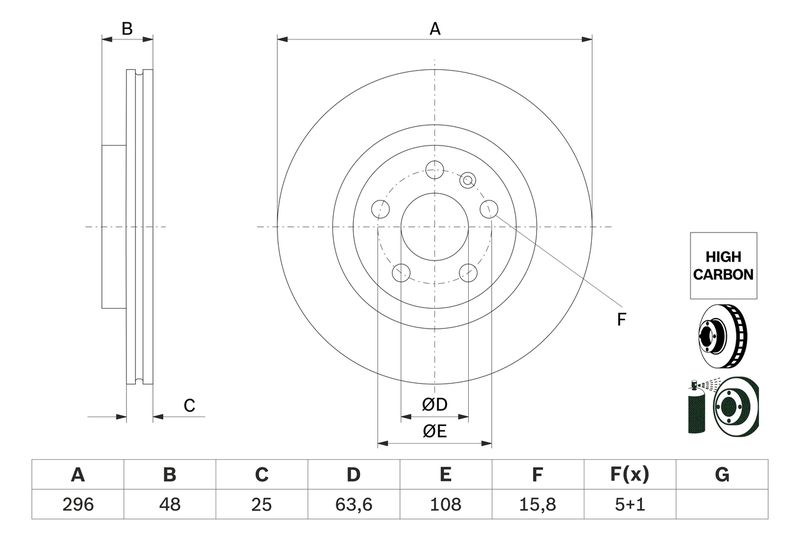

Bosch 0986479G94 Brake Disc - 5
Bosch 0986479G94 Brake Disc - 6
Bosch 0986479G94 Brake Disc - 1
Bosch 0986479G94 Brake Disc - 2
Bosch 0986479G94 Brake Disc - 3
Bosch 0986479G94 Brake Disc - 4
Bosch 0986479G94 Brake Disc - 5
Bosch 0986479G94 Brake Disc - 6
BOSCH

Bosch 0986479G94 Brake Disc

SKU: 0986479G94
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£55.65 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

VOLVO
XC40 (536)
Description Cylinder Capacity Horse Power Year
T5 AWD 1969 CCM 247 HP 10/2017 - 09/2021
D4 AWD 1969 CCM 190 HP 10/2017 - 09/2021
T4 1969 CCM 190 HP 09/2018 - 12/2021
T4 AWD 1969 CCM 190 HP From 09/2018
T3 1477 CCM 156 HP 03/2018 - 03/2019
D3 1969 CCM 150 HP 09/2018 - 09/2021
D3 AWD 1969 CCM 150 HP 09/2018 - 09/2021
T5 AWD 1969 CCM 249 HP 10/2017 - 12/2022
D4 Polestar AWD 1969 CCM 200 HP 01/2019 - 09/2021
T3 1477 CCM 163 HP 03/2019 - 12/2022
T5 Plug-in Hybrid 1477 CCM 262 HP From 06/2019
T2 1477 CCM 129 HP From 06/2019
T5 Polestar AWD 1969 CCM 249 HP 10/2017 - 09/2019
B4 Mild-Hybrid AWD 1969 CCM 197 HP From 09/2019
B4 Mild-Hybrid 1969 CCM 197 HP From 09/2019

The Bosch 0986479G94 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 296 mm outer diameter, 25 mm brake disc thickness, 22 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 296
Brake Disc Thickness [mm] : 25
Minimum thickness [mm] : 22
Height [mm] : 48
Bolt Hole Circle Ø [mm] : 108
Brake Disc Type : Vented
Centering Diameter [mm] : 63.6
Number of Holes : 5
Surface : Coated
Machining : High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 15.8
  • Vendor BOSCH
  • SKU 0986479G94
  • Barcode 4047026599596
  • VOLVO : 31471414 32300121
  • APEC : DSK3509
  • BLUE PRINT : ADF124372
  • BORG & BECK : BBD5648
  • BREMBO : 09.D892.11
  • DELPHI : BG5068C
  • FEBI BILSTEIN : 107518
  • FTE : 9082649
  • HELLA : 8DD 355 133-441
  • MINTEX : MDC2984C
  • National : NBD2171
  • SKF : VKBD 81408 V1
  • TEXTAR : 92323905
  • TRW : DF6776S
  • VALEO : 673383
  • BOSCH : BD2938
  • BOSCH : E1 90 R - 02 C0348/0603
