Bosch 0986479G96 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 0986479G96

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 3 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£68.77 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

JAGUAR

XE (X760)

Description	Cylinder Capacity	Horse Power	Year
2.0 D	1999 CCM	163 HP	From 03/2015
2.0 D	1999 CCM	180 HP	From 03/2015
2.0	1999 CCM	200 HP	From 03/2015
2.0	1999 CCM	241 HP	From 03/2015
3.0 S	2995 CCM	340 HP	From 03/2015
2.0 D AWD	1999 CCM	180 HP	From 10/2015
2.0 D AWD	1999 CCM	241 HP	From 02/2017
2.0	1997 CCM	250 HP	From 02/2017
2.0 AWD	1997 CCM	250 HP	From 02/2017
3.0 S	2995 CCM	381 HP	From 02/2017
2.0 AWD	1997 CCM	300 HP	From 06/2017
2.0	1997 CCM	200 HP	From 02/2017
2.0 D200 MHEV	1997 CCM	204 HP	From 11/2020

XF II (X260)

Description	Cylinder Capacity	Horse Power	Year
2.0	1999 CCM	241 HP	From 05/2015
2.0 D	1999 CCM	163 HP	From 05/2015
2.0 D	1999 CCM	180 HP	From 05/2015
2.0 D AWD	1999 CCM	180 HP	From 03/2016
2.0 D	1999 CCM	241 HP	From 03/2017
2.0 D AWD	1999 CCM	241 HP	From 03/2017
2.0	1997 CCM	200 HP	From 03/2017
2.0	1997 CCM	250 HP	From 03/2017
2.0 AWD	1997 CCM	250 HP	From 03/2017
2.0 AWD	1997 CCM	300 HP	From 09/2017

XF SPORTBRAKE (X260)

Description	Cylinder Capacity	Horse Power	Year
2.0 D	1999 CCM	163 HP	From 07/2017
2.0 D	1999 CCM	180 HP	From 07/2017
2.0 D AWD	1999 CCM	180 HP	From 07/2017
2.0 D AWD	1999 CCM	241 HP	From 07/2017
2.0	1997 CCM	250 HP	From 07/2017
2.0	1997 CCM	200 HP	From 07/2017
2.0 AWD	1997 CCM	300 HP	From 08/2018
2.0 D200 MHEV	1997 CCM	204 HP	From 11/2020
2.0 D200 MHEV AWD	1997 CCM	204 HP	From 11/2020

The Bosch 0986479G96 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 325 mm outer diameter, 30 mm brake disc thickness, 28 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

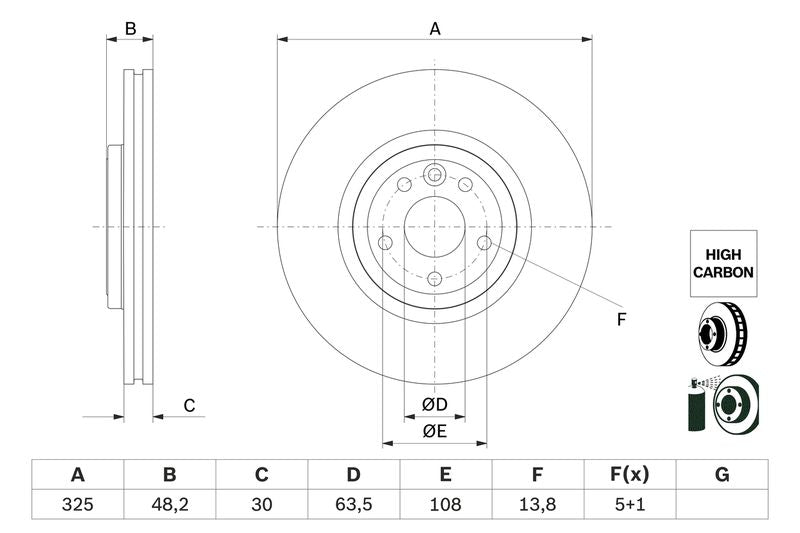

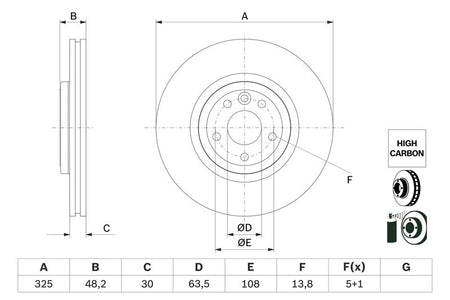

Function : Brake Disc

Outer Diameter [mm] : 325

Brake Disc Thickness [mm] : 30

Minimum thickness [mm] : 28

Height [mm] : 48.2

Bolt Hole Circle Ø [mm] : 108

Brake Disc Type : Vented

Centering Diameter [mm] : 63.5

Number of Holes : 5

Surface : Coated

Machining : High-carbon

fulfils ECE standard : ECE-R90
