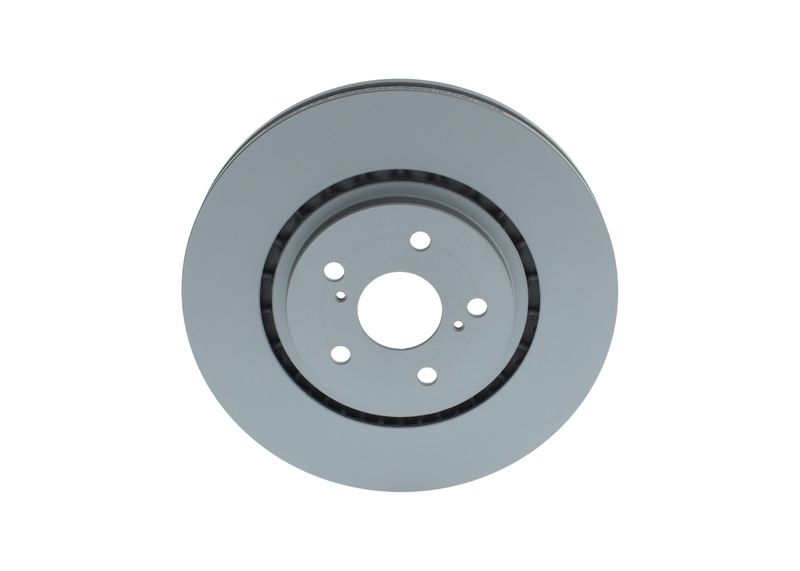

Bosch 0986479H04 Brake Disc - 1
Bosch 0986479H04 Brake Disc - 2

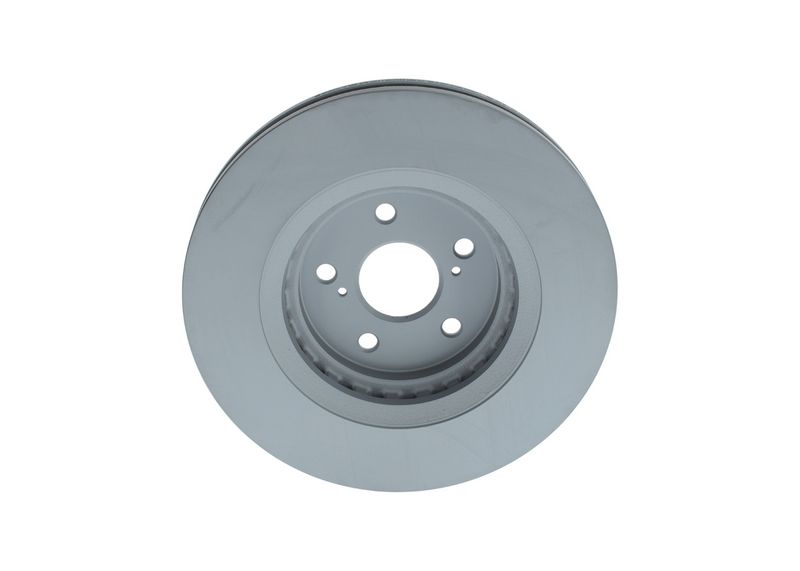

Bosch 0986479H04 Brake Disc - 3
Bosch 0986479H04 Brake Disc - 4

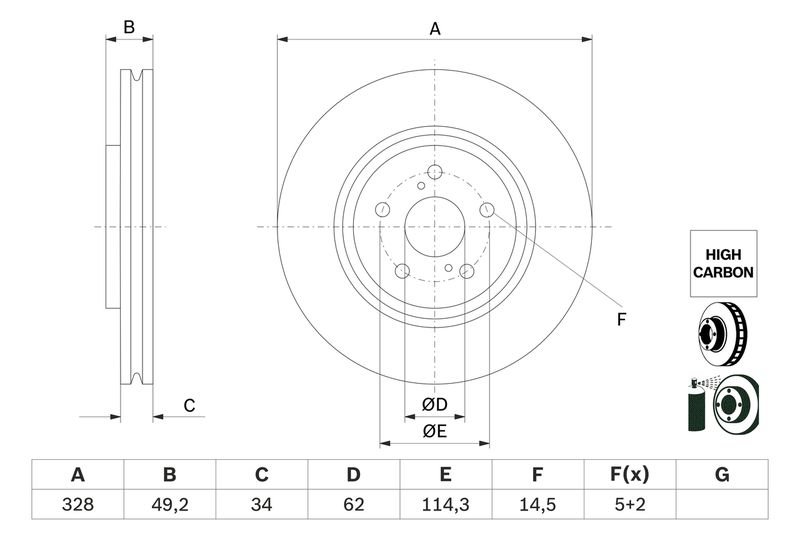

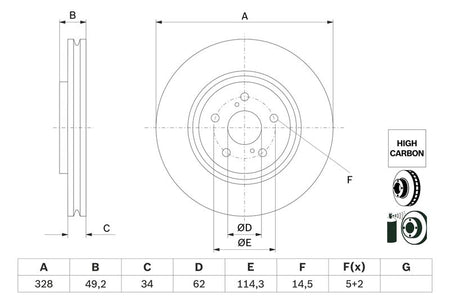

Bosch 0986479H04 Brake Disc - 5

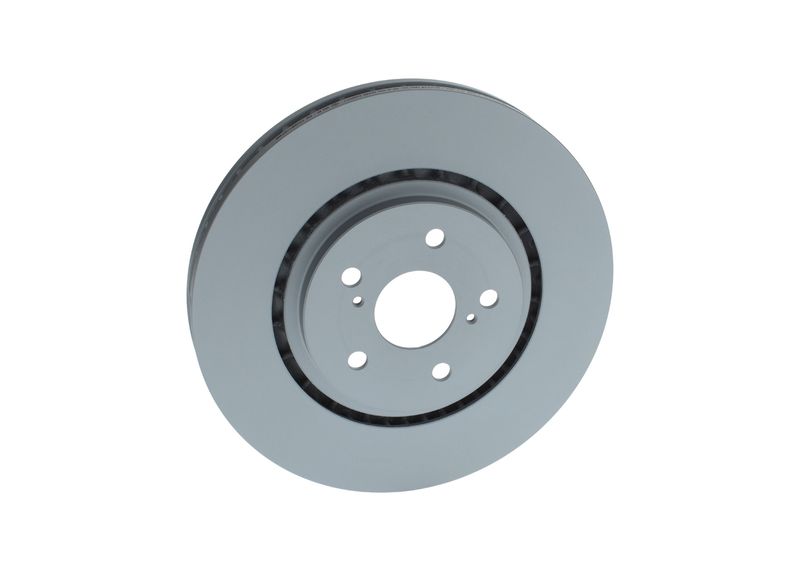

Bosch 0986479H04 Brake Disc - 6
Bosch 0986479H04 Brake Disc - 1
Bosch 0986479H04 Brake Disc - 2
Bosch 0986479H04 Brake Disc - 3
Bosch 0986479H04 Brake Disc - 4
Bosch 0986479H04 Brake Disc - 5
Bosch 0986479H04 Brake Disc - 6
BOSCH

Bosch 0986479H04 Brake Disc

SKU: 0986479H04
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£68.29 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SUBARU
SOLTERRA
Description Cylinder Capacity Horse Power Year
EV 218 HP From 06/2022
TOYOTA
RAV 4 V (_A5_, _H5_)
Description Cylinder Capacity Horse Power Year
2.5 Hybrid (AXAH52) 2487 CCM 218 HP From 12/2018
2.0 (MXAA52) 1987 CCM 175 HP From 12/2018
2.0 AWD (MXAA54) 1987 CCM 175 HP From 12/2018
2.0 VVTi (MXAA52) 1987 CCM 173 HP From 12/2018
2.0 VVTi AWD (MXAA54) 1987 CCM 173 HP From 02/2019
2.5 VVTi AWD (AXAA54) 2487 CCM 203 HP From 12/2018
2.5 Hybrid AWD (AXAH54, AXAL54) 2487 CCM 222 HP From 12/2018
LEXUS
RX (_L1_)
Description Cylinder Capacity Horse Power Year
350 AWD (GGL15_, GGL15R) 3456 CCM 277 HP 12/2008 - 08/2015
450h AWD (GYL15, GYL15_, GYL15R, GYL16W) 3456 CCM 299 HP 03/2009 - 09/2015
RX (_L2_)
Description Cylinder Capacity Horse Power Year
200t (AGL20R, AGL20_) 1998 CCM 238 HP 10/2015 - 12/2017
200t AWD (AGL25_) 1998 CCM 238 HP 10/2015 - 12/2017
450h AWD (GYL25_, GYL26_, GYL25, GYL26, GYL25R, GYL26R) 3456 CCM 313 HP From 11/2015
300 AWD (AGL25_, AGL25R) 1998 CCM 238 HP From 12/2017
RZ (_BM1_)
Description Cylinder Capacity Horse Power Year
450e DIRECT4 (XEBM15) 313 HP From 01/2023
300e (XEBM10) 204 HP From 12/2023

The Bosch 0986479H04 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 328 mm outer diameter, 34 mm brake disc thickness, 32 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 328
Brake Disc Thickness [mm] : 34
Minimum thickness [mm] : 32
Height [mm] : 49.2
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : Vented
Centering Diameter [mm] : 62
Number of Holes : 5
Surface : Coated
Machining : High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 14.5
  • Vendor BOSCH
  • SKU 0986479H04
  • Barcode 4047026576184
  • TOYOTA : 43512 48140 43512 78020
  • LEXUS : 4351248140 4351278020
  • APEC : DSK3410
  • BLUE PRINT : ADT343312
  • BREMBO : 09.D988.11
  • DELPHI : BG9358C
  • DELPHI : BG9598C
  • MINTEX : MDC3207C
  • NAPA : NBD5876
  • TEXTAR : 92349505
  • VALEO : 673463
  • BOSCH : BD2948
  • BOSCH : E1 90 R - 02 C0381/0796
