BOSCH

Bosch 0986479H16 Brake Disc

SKU: 0986479H16
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£61.88 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SSANGYONG
KORANDO (CK)
Description Cylinder Capacity Horse Power Year
2.0 e-XDi 4WD 1998 CCM 175 HP From 11/2010
2.0 e-XDi 4WD 1998 CCM 150 HP From 02/2012
2.0 4WD 1998 CCM 150 HP From 02/2012
2.2 Xdi 4WD 2157 CCM 178 HP From 07/2015
KORANDO (C300)
Description Cylinder Capacity Horse Power Year
1.5 e-XGDi 1497 CCM 163 HP From 02/2019
1.5 e-XGDi 4WD 1497 CCM 163 HP From 02/2019
1.6 e-XDi 1597 CCM 136 HP From 02/2019
1.6 e-XDi 4WD 1597 CCM 136 HP From 02/2019
E-Motion 190 HP From 07/2022
E-Motion 207 HP From 08/2023
TIVOLI
Description Cylinder Capacity Horse Power Year
1.6 All-wheel Drive 1597 CCM 128 HP From 03/2015
1.6 XDi 160 All-wheel Drive 1597 CCM 116 HP From 04/2015
1.5 All-wheel Drive 1497 CCM 163 HP From 06/2019
1.6 XDi 160 All-wheel Drive 1597 CCM 136 HP From 06/2019
XLV SUV
Description Cylinder Capacity Horse Power Year
e-XGi 160 All-wheel Drive 1597 CCM 128 HP From 04/2016
e-XDi 160 All-wheel Drive 1597 CCM 116 HP From 04/2016
KG MOBILITY
ACTYON (J120)
Description Cylinder Capacity Horse Power Year
GDI 4x4 1497 CCM 163 HP From 08/2024
GDI 1497 CCM 163 HP From 08/2024
KORANDO (C300)
Description Cylinder Capacity Horse Power Year
1.5 T-GDI 1497 CCM 163 HP From 11/2023
TORRES (U100, J100, J140)
Description Cylinder Capacity Horse Power Year
1.5 1497 CCM 163 HP From 11/2023
1.5 4WD 1497 CCM 163 HP From 11/2023
EVX 207 HP From 01/2024
1.5 Hybrid 1498 CCM 204 HP From 06/2025
TORRES (U100, J100)
Description Cylinder Capacity Horse Power Year
EVX 207 HP From 01/2024

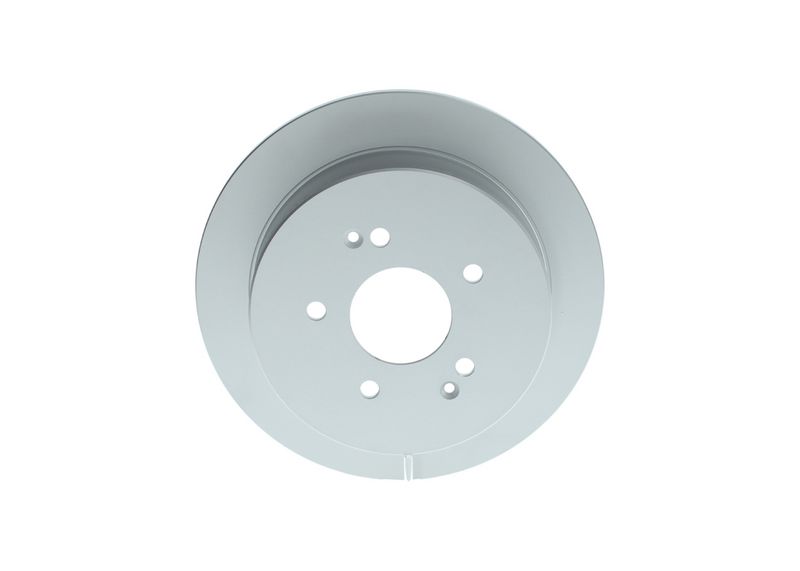

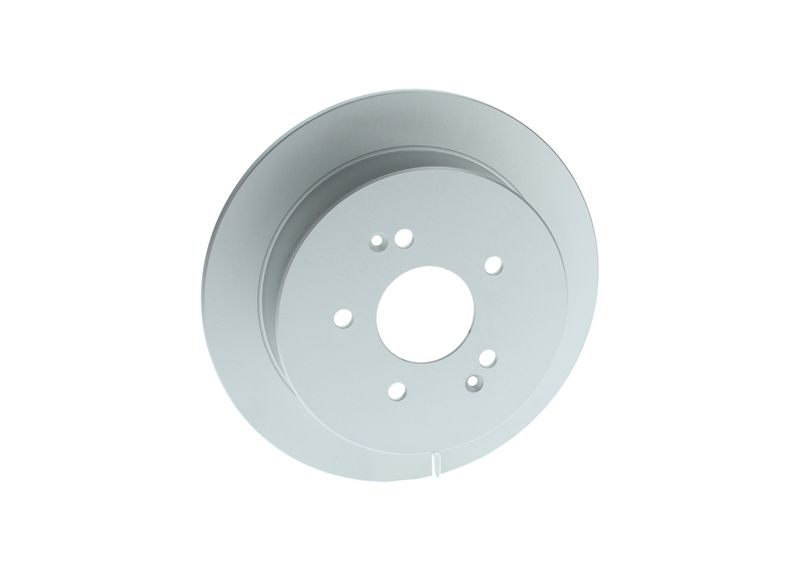

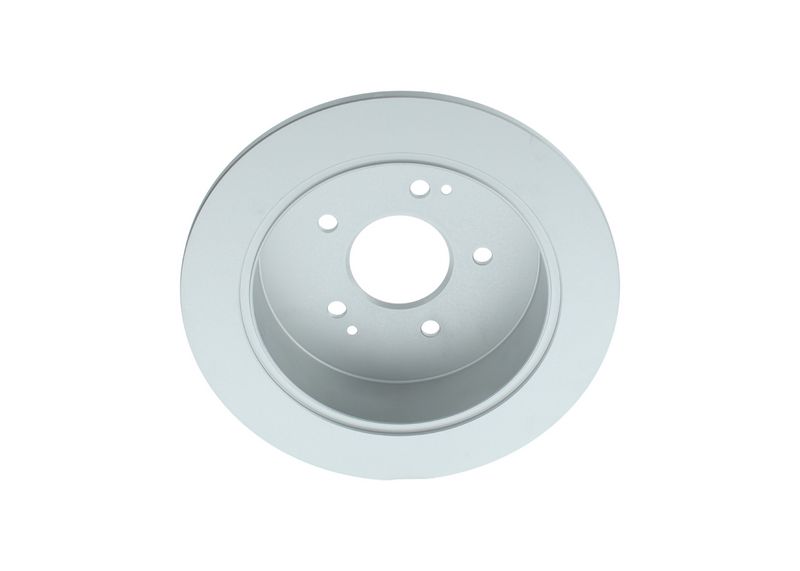

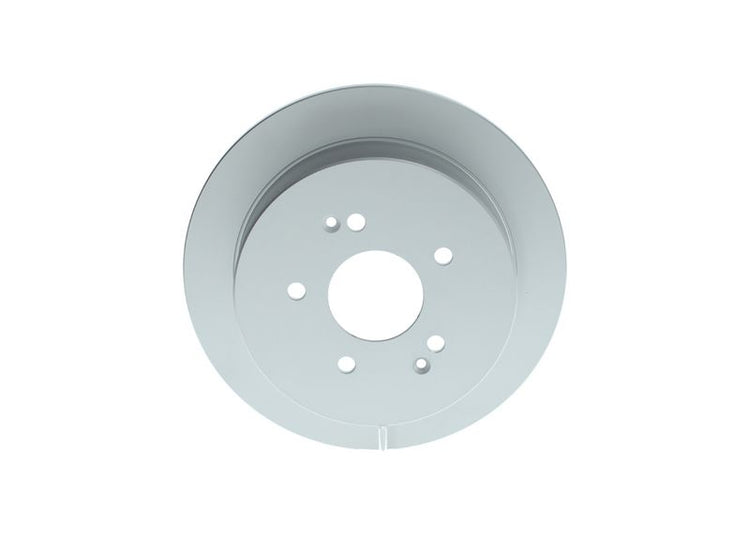

The Bosch 0986479H16 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 284 mm outer diameter, 10 mm brake disc thickness, 8.4 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

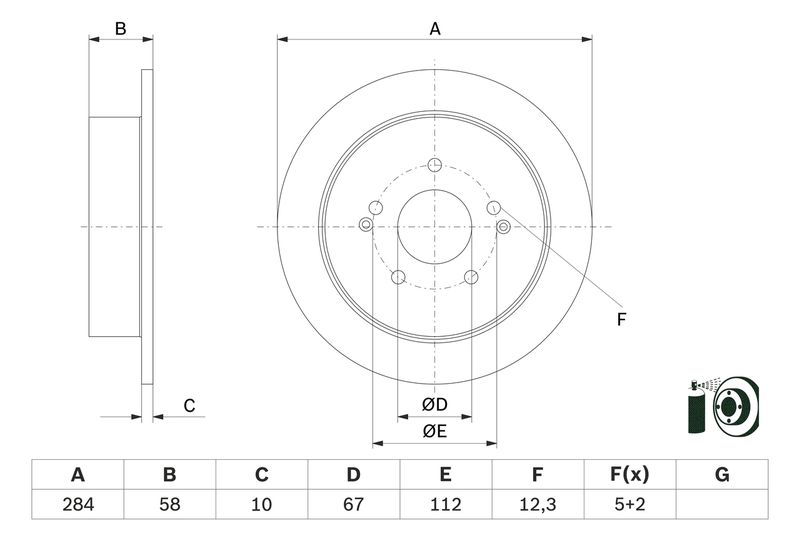

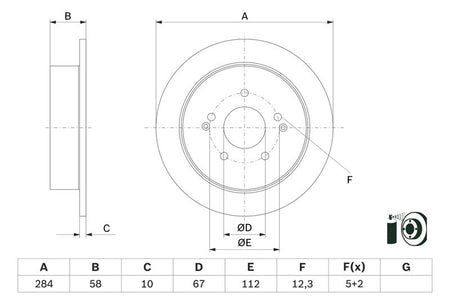

Function : Brake Disc
Outer Diameter [mm] : 284
Brake Disc Thickness [mm] : 10
Minimum thickness [mm] : 8.4
Height [mm] : 58
Bolt Hole Circle Ø [mm] : 112
Brake Disc Type : solid
Centering Diameter [mm] : 67
Number of Holes : 5
Surface : Coated
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 12.3
  • Vendor BOSCH
  • SKU 0986479H16
  • Barcode 4047023067128
  • SSANGYONG : 484 013 41 00 484 013 41 01 484 013 41 02 484 013 51 01
  • APEC : DSK3144
  • BLUE PRINT : ADG043215
  • BORG & BECK : BBD5453
  • BREMBO : 08.D415.11
  • DELPHI : BG4940C
  • FEBI BILSTEIN : 170697
  • MINTEX : MDC3200C
  • NAPA : NBD5836
  • National : NBD2205
  • TEXTAR : 92326603
  • TRW : DF6901
  • BOSCH : BD2960
  • BOSCH : E1 90R-02C0241/0178
