BOSCH

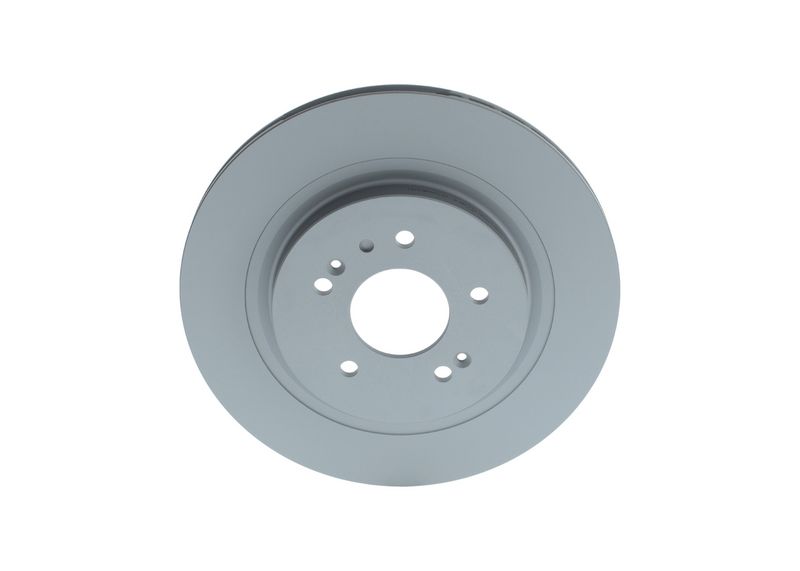

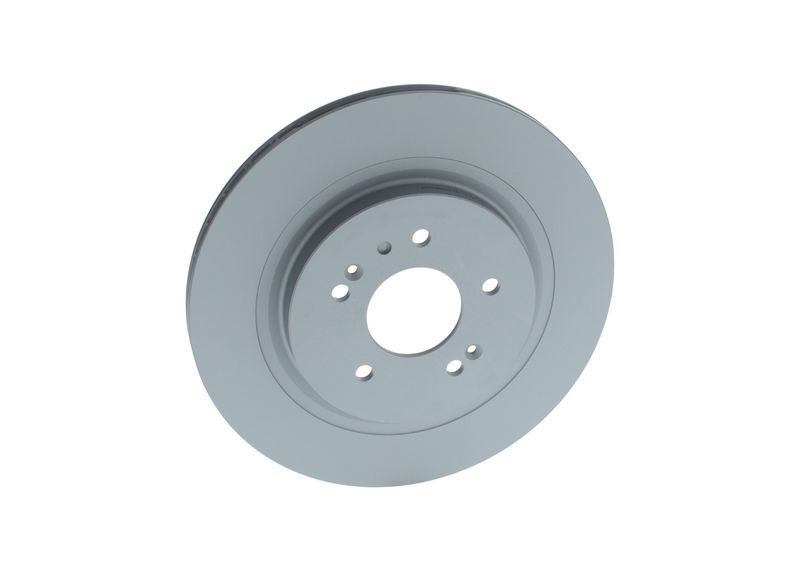

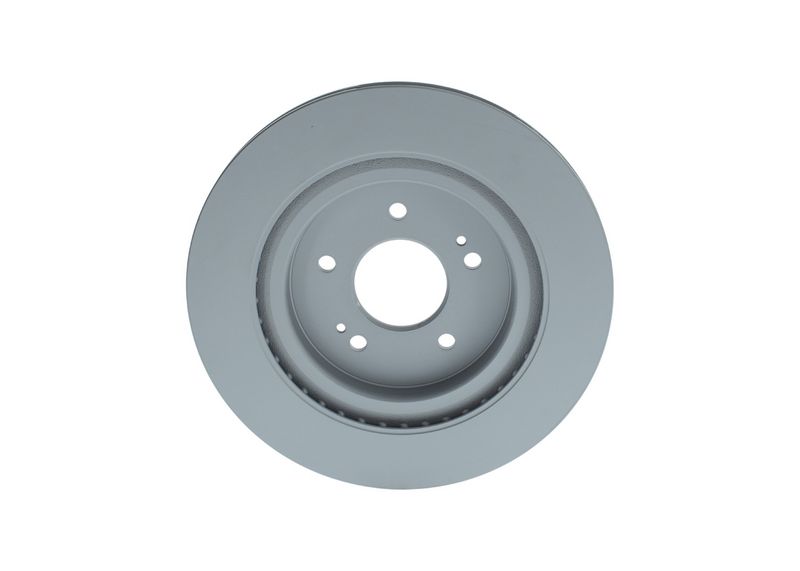

Bosch 0986479H17 Brake Disc

SKU: 0986479H17

Your selected vehicle

Out of stock

Out of Stock

£34.68 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

HYUNDAI

SANTA FÉ III (DM, DMA)

Description	Cylinder Capacity	Horse Power	Year
2.4 GDI	2359 CCM	188 HP	05/2015 - 08/2018

SANTA FE IV (TM, TMA)

Description	Cylinder Capacity	Horse Power	Year
2.0 CRDi	1995 CCM	186 HP	02/2018 - 07/2020
2.0 CRDi AWD	1995 CCM	186 HP	02/2018 - 07/2020
2.2 CRDi AWD	2199 CCM	203 HP	From 02/2018
2.2 CRDi	2199 CCM	200 HP	07/2018 - 11/2020
2.2 CRDi AWD	2199 CCM	200 HP	07/2018 - 11/2020
2.4 GDI AWD	2359 CCM	185 HP	07/2018 - 07/2020
2.0 CRDi	1995 CCM	150 HP	07/2018 - 07/2020
2.0 CRDi AWD	1995 CCM	150 HP	07/2018 - 07/2020
2.4 GDI AWD	2359 CCM	188 HP	07/2018 - 07/2020

The Bosch 0986479H17 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 314 mm outer diameter, 18 mm brake disc thickness, 16 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

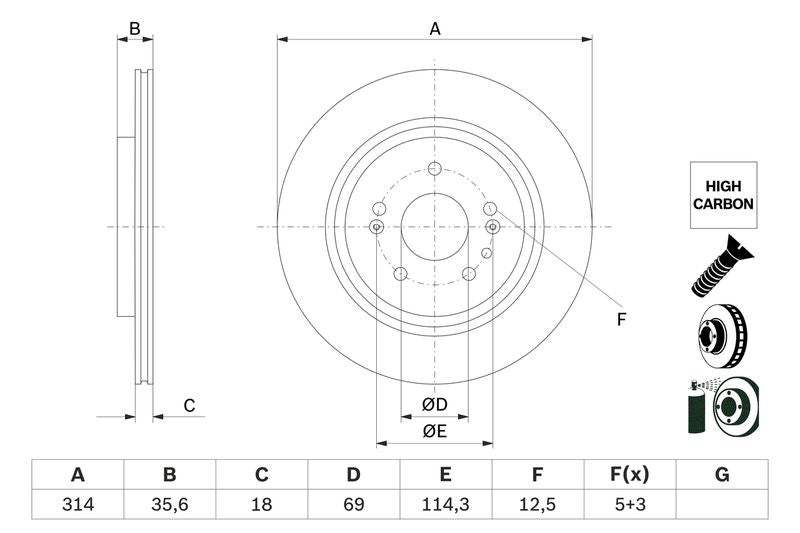

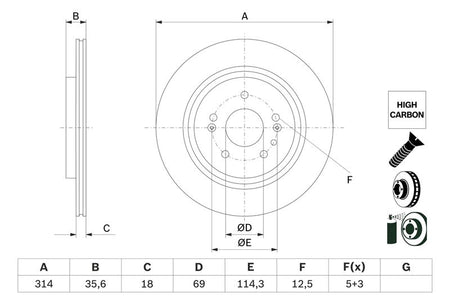

Function : Brake Disc

Outer Diameter [mm] : 314

Brake Disc Thickness [mm] : 18

Minimum thickness [mm] : 16

Height [mm] : 35.6

Bolt Hole Circle Ø [mm] : 114.3

Brake Disc Type : Vented

Centering Diameter [mm] : 69

Number of Holes : 5

Surface : Coated

Machining : High-carbon

Supplementary Article/Supplementary Info 2 : with bolts/screws

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 12.5

Bosch 0986479H17 Brake Disc
