BOSCH

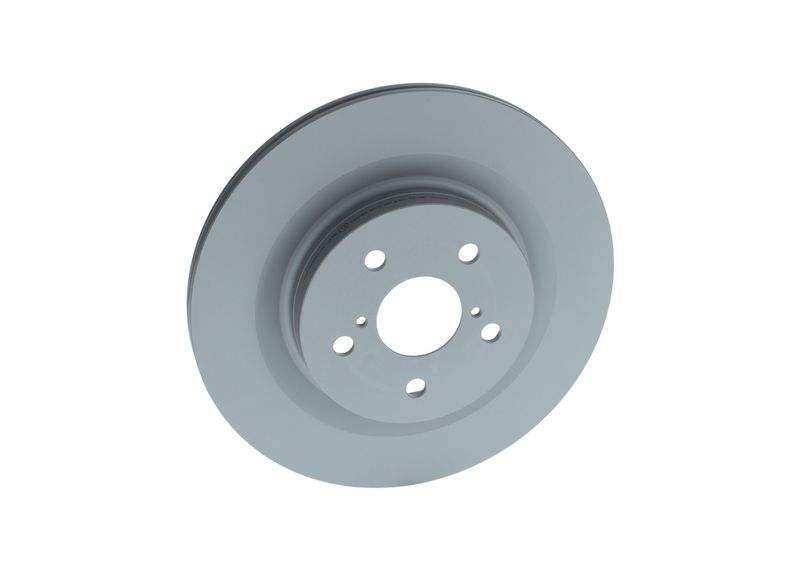

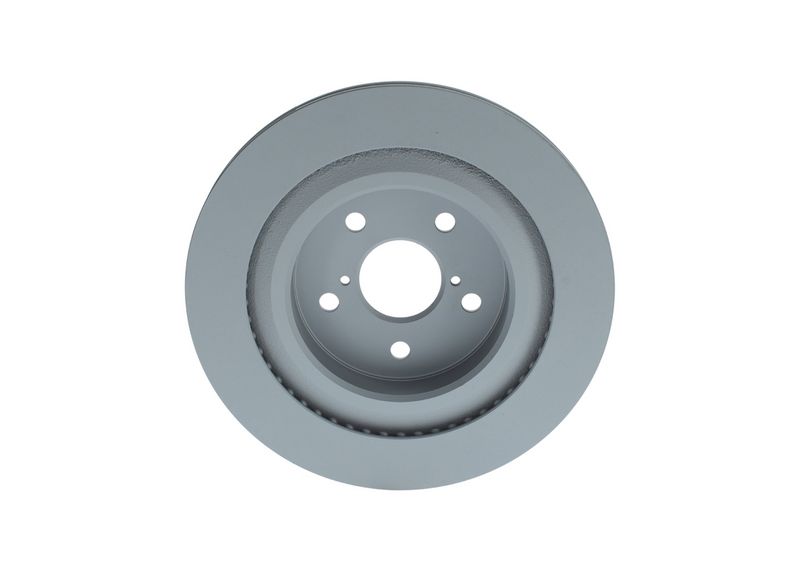

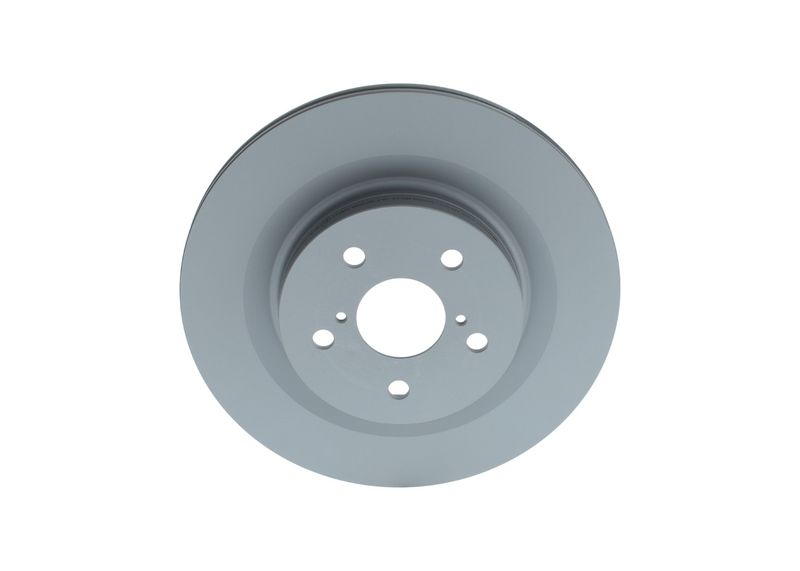

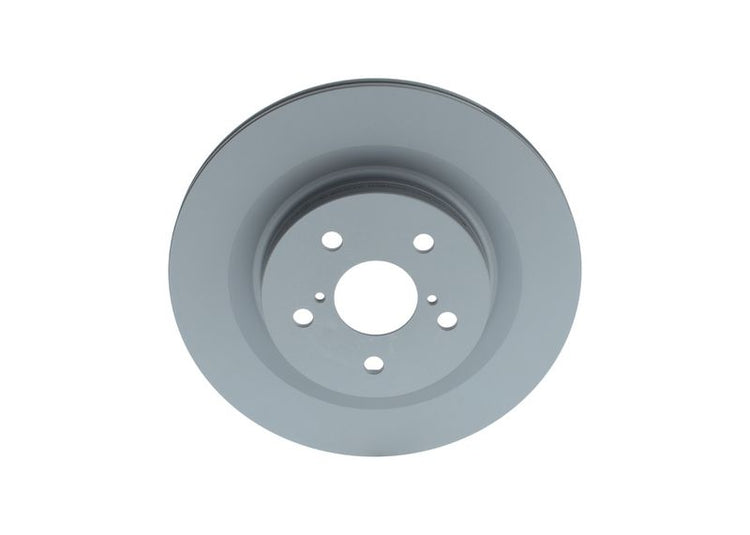

Bosch 0986479H19 Brake Disc

SKU: 0986479H19
Your selected vehicle
Out of stock
Out of Stock
£97.02 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SUBARU
SOLTERRA
Description Cylinder Capacity Horse Power Year
EV 218 HP From 06/2022
EV 343 HP From 10/2025
SUZUKI
ACROSS (A5Z_)
Description Cylinder Capacity Horse Power Year
2.5 Hybrid 2487 CCM 306 HP From 06/2020
TOYOTA
RAV 4 V (_A5_, _H5_)
Description Cylinder Capacity Horse Power Year
2.5 Hybrid (AXAH52) 2487 CCM 218 HP From 12/2018
2.0 (MXAA52) 1987 CCM 175 HP From 12/2018
2.0 AWD (MXAA54) 1987 CCM 175 HP From 12/2018
2.0 VVTi (MXAA52) 1987 CCM 173 HP From 12/2018
2.0 VVTi AWD (MXAA54) 1987 CCM 173 HP From 02/2019
2.5 VVTi AWD (AXAA54) 2487 CCM 203 HP From 12/2018
2.5 Hybrid AWD (AXAH54, AXAL54) 2487 CCM 222 HP From 12/2018
2.5 Hybrid AWD (AXAP54, AXAP54L) 2487 CCM 306 HP From 09/2020
LEXUS
NX II (_A2_, _H2_)
Description Cylinder Capacity Horse Power Year
350h (AAZH20) 2487 CCM 243 HP From 09/2021
350h E-Four (AAZH25) 2487 CCM 243 HP From 09/2021
450h+ E-Four (AAZH26) 2487 CCM 309 HP From 09/2021
RZ (_BM1_)
Description Cylinder Capacity Horse Power Year
450e DIRECT4 (XEBM15) 313 HP From 01/2023
300e (XEBM10) 204 HP From 12/2023
UX (_AA1_, _AH1_, _MA1_)
Description Cylinder Capacity Horse Power Year
300e (KMA10) 204 HP From 04/2020

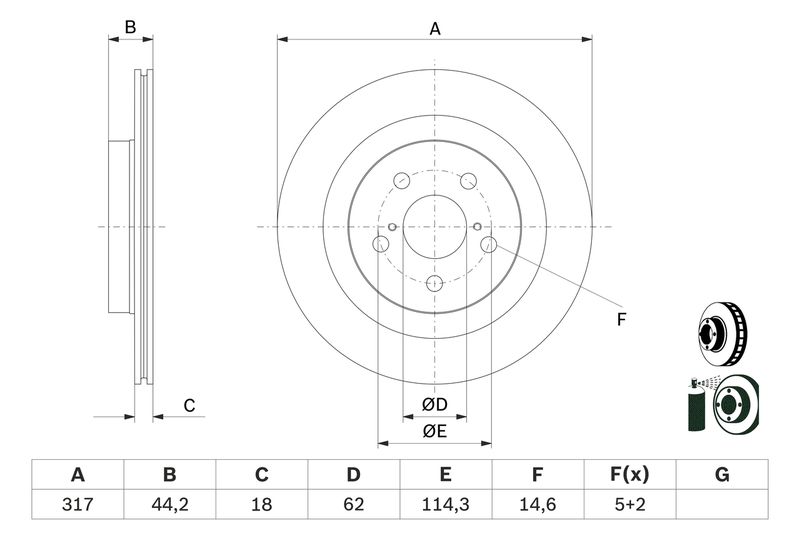

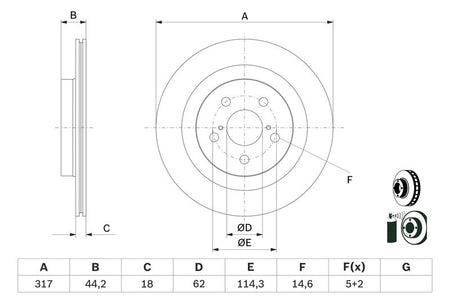

The Bosch 0986479H19 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 317 mm outer diameter, 18 mm brake disc thickness, 16.5 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 317
Brake Disc Thickness [mm] : 18
Minimum thickness [mm] : 16.5
Height [mm] : 44.2
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : Vented
Centering Diameter [mm] : 62
Number of Holes : 5
Surface : Coated
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 14.6
  • Vendor BOSCH
  • SKU 0986479H19
  • Barcode 4047026576207
  • SUZUKI : T424314208
  • TOYOTA : 42431 42080 42431 78030
  • LEXUS : 4243142080 4243178030
  • APEC : DSK3531
  • BLUE PRINT : ADBP430133
  • BORG & BECK : BBD5612
  • BREMBO : 09.D987.11
  • DELPHI : BG5082C
  • DELPHI : BG5228C
  • FEBI BILSTEIN : 179062
  • HELLA : 8DD 355 134-961
  • MINTEX : MDC3167C
  • TEXTAR : 92343103
  • TRW : DF3978
  • BOSCH : BD2963
  • BOSCH : E1 90 R - 02 C0348/0767
