BOSCH

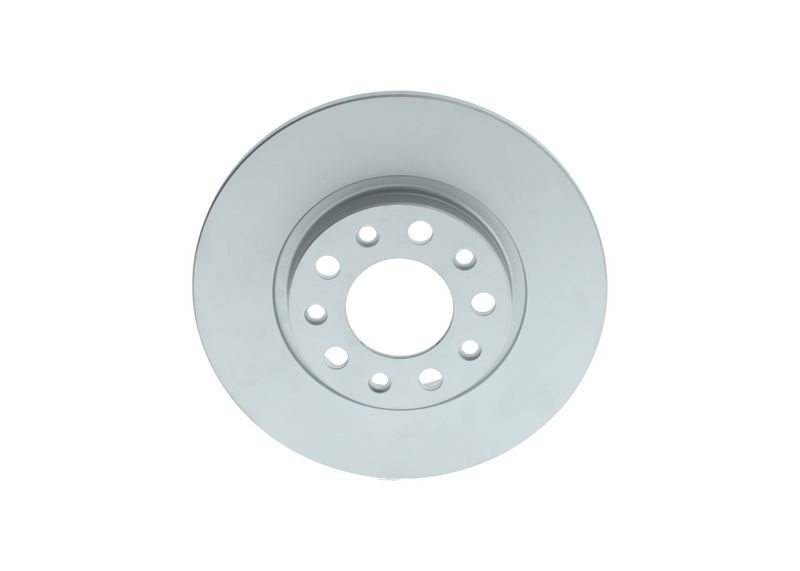

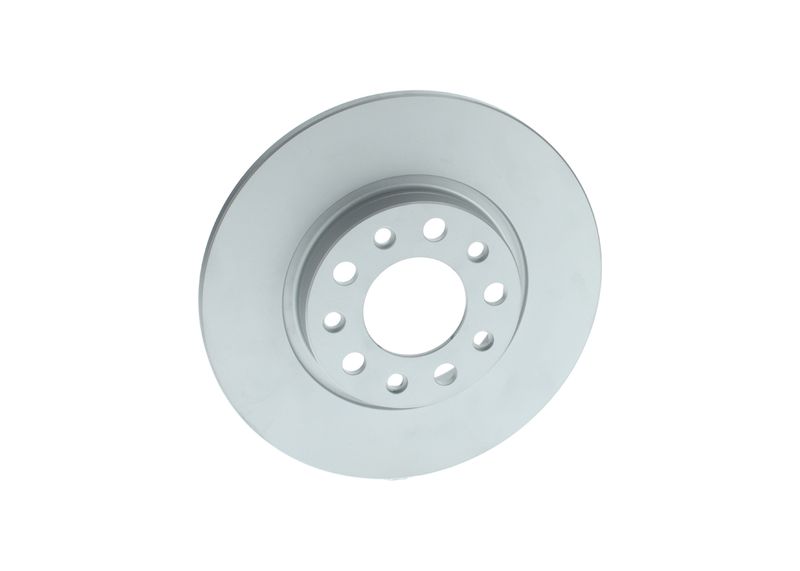

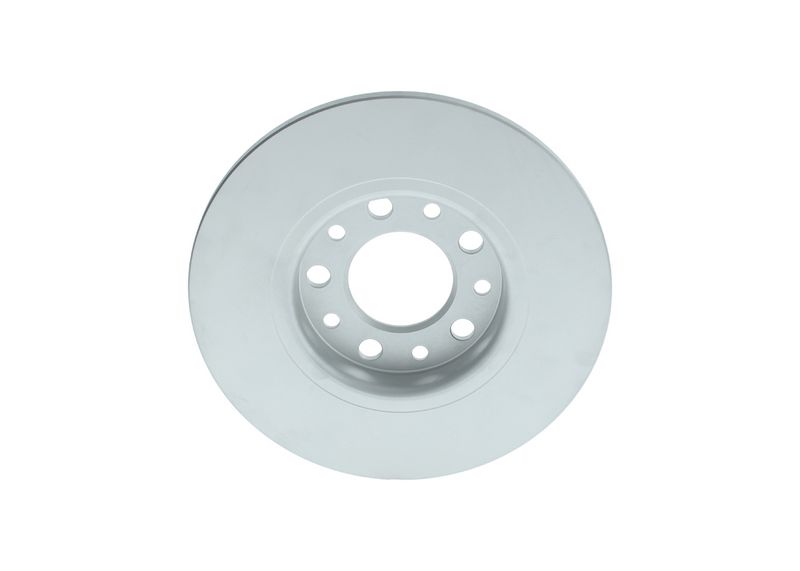

Bosch 0986479H24 Brake Disc

SKU: 0986479H24
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£32.63 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

JEEP
CHEROKEE (KL)
Description Cylinder Capacity Horse Power Year
3.2 V6 4x4 3239 CCM 272 HP From 11/2013
2.0 CRD 4x4 1956 CCM 170 HP 04/2014 - 08/2018
2.0 CRD 1956 CCM 140 HP 04/2014 - 08/2018
2.0 CRD 4x4 1956 CCM 140 HP 04/2014 - 08/2018
3.2 V6 3239 CCM 272 HP From 11/2013
2.2 CRD 4x4 2184 CCM 185 HP 08/2015 - 08/2018
2.2 CRD 4x4 2184 CCM 200 HP 08/2015 - 08/2018
3.2 V6 4x4 3239 CCM 271 HP From 05/2014
3.2 4x4 3239 CCM 275 HP From 01/2014
2.2 CRD 4x4 2184 CCM 195 HP From 09/2018
2.2 CRD 2184 CCM 195 HP From 09/2018
2.2 CRD 2184 CCM 150 HP From 09/2018
CHEROKEE VAN (KL)
Description Cylinder Capacity Horse Power Year
3.2 4x4 3239 CCM 272 HP From 08/2015
2.2 CRD 2184 CCM 185 HP 08/2015 - 08/2018
2.2 CRD 2184 CCM 200 HP 08/2015 - 08/2018

The Bosch 0986479H24 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 278 mm outer diameter, 12 mm brake disc thickness, 10.4 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

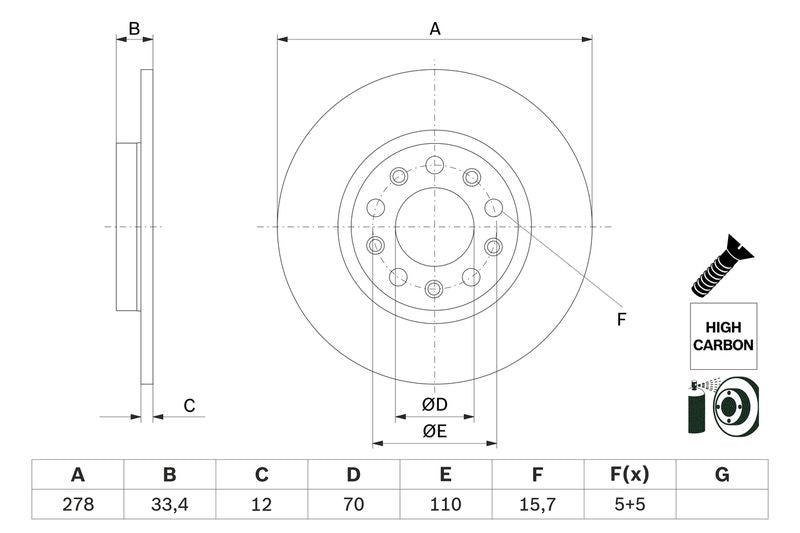

Function : Brake Disc
Outer Diameter [mm] : 278
Brake Disc Thickness [mm] : 12
Minimum thickness [mm] : 10.4
Height [mm] : 33.4
Bolt Hole Circle Ø [mm] : 110
Brake Disc Type : solid
Centering Diameter [mm] : 70
Number of Holes : 5
Surface : Coated
Machining : High-carbon
Supplementary Article/Supplementary Info 2 : with bolts/screws
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 15.7
  • Vendor BOSCH
  • SKU 0986479H24
  • Barcode 4047023067142
  • CHRYSLER : 04779 885AB 04779 885AC 4779 885AB 4779 885AC 68242 659AA 68242 659AB
  • JEEP : 04779 885AB 04779 885AC 4779 885AB 4779 885AC 68242 659AA 68242 659AB
  • APEC : DSK3419
  • APEC : SDK6956
  • BLUE PRINT : ADA104375
  • BREMBO : 08.N282.11
  • DELPHI : BG4960C
  • FEBI BILSTEIN : 170117
  • HELLA : 8DD 355 133-721
  • MEYLE : 57-15 523 0005/PD
  • MINTEX : MDC2999C
  • TEXTAR : 92326503
  • BOSCH : BD2968
  • BOSCH : E1 90R-02C0100/0699
