BOSCH

Bosch 0986479H27 Brake Disc

SKU: 0986479H27

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£37.63 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA

C-HR (_X1_)

Description	Cylinder Capacity	Horse Power	Year
1.2 (NGX10_, NGX10R)	1197 CCM	116 HP	From 10/2016
1.2 4WD (NGX50_, NGX50R)	1197 CCM	116 HP	From 10/2016
1.8 Hybrid (ZYX10_, ZYX11_, ZYX10R, ZYX11R)	1798 CCM	122 HP	From 10/2016
1.2 4WD (NGX50)	1197 CCM	131 HP	From 10/2016
2.0 Hybrid (MAXH10)	1987 CCM	184 HP	From 10/2019

C-HR VAN (_X1_)

Description	Cylinder Capacity	Horse Power	Year
1.8 Hybrid (ZYX10, ZYX11)	1798 CCM	122 HP	From 10/2016

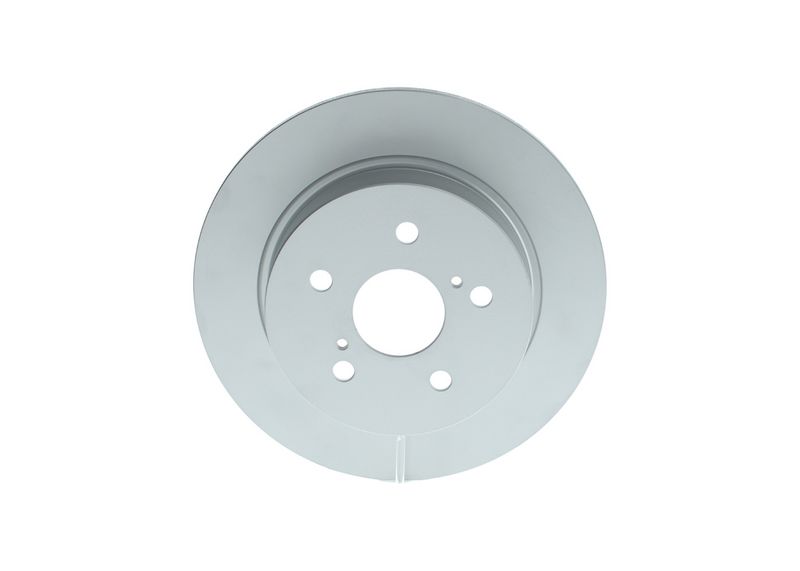

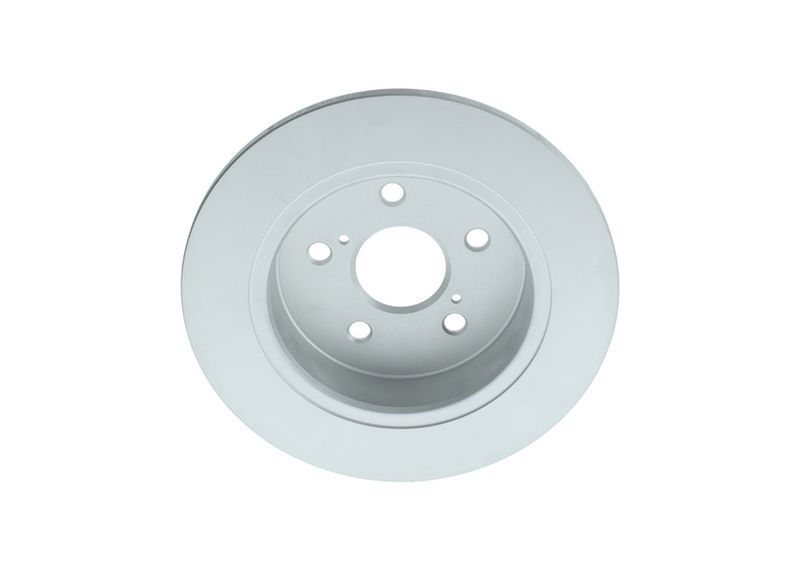

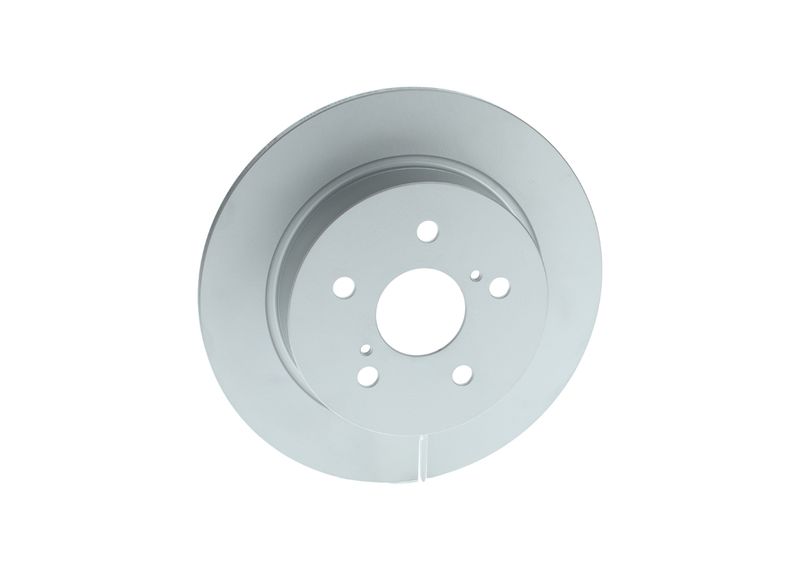

The Bosch 0986479H27 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 292 mm outer diameter, 11 mm brake disc thickness, 9.5 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

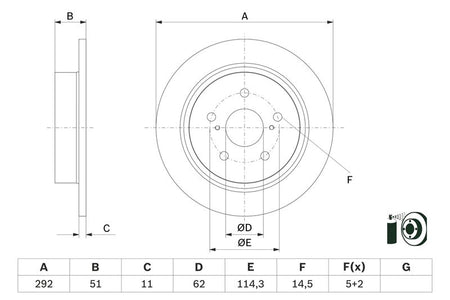

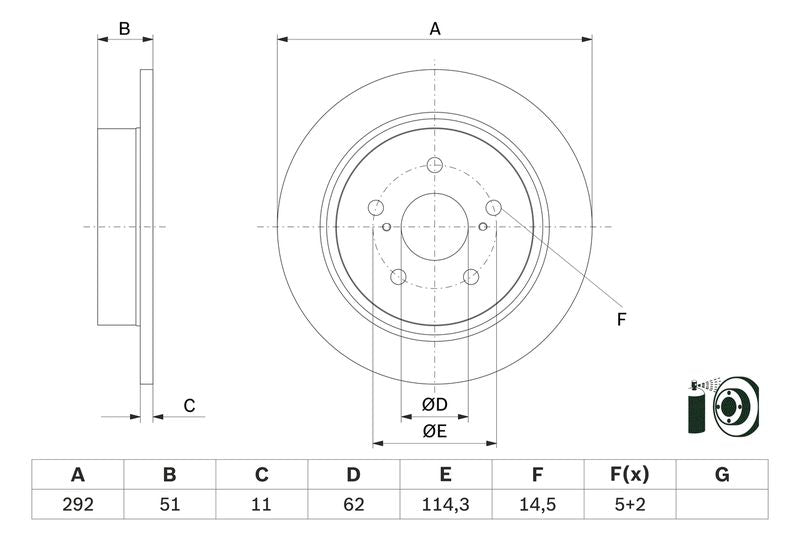

Function : Brake Disc

Outer Diameter [mm] : 292

Brake Disc Thickness [mm] : 11

Minimum thickness [mm] : 9.5

Height [mm] : 51

Bolt Hole Circle Ø [mm] : 114.3

Brake Disc Type : solid

Centering Diameter [mm] : 62

Number of Holes : 5

Surface : Coated

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 14.5

APEC : DSK3849
BLUE PRINT : ADBP430131
BORG & BECK : BBD5665
BREMBO : 08.E033.11
DELPHI : BG5169C
FEBI BILSTEIN : 179054
MEYLE : 30-15 523 0112/PD
MINTEX : MDC3223C
NAPA : NBD5980
National : NBD2240
TEXTAR : 92347803
VALEO : 673602

Bosch 0986479H27 Brake Disc
