BOSCH

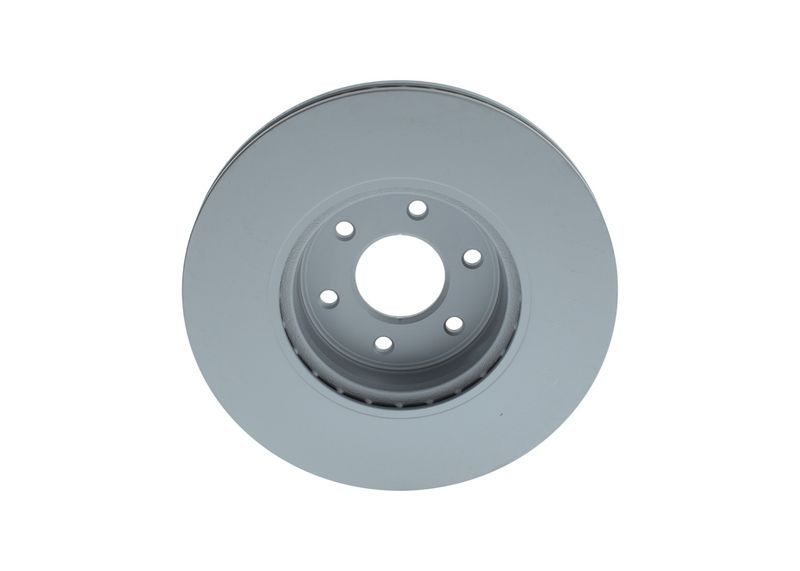

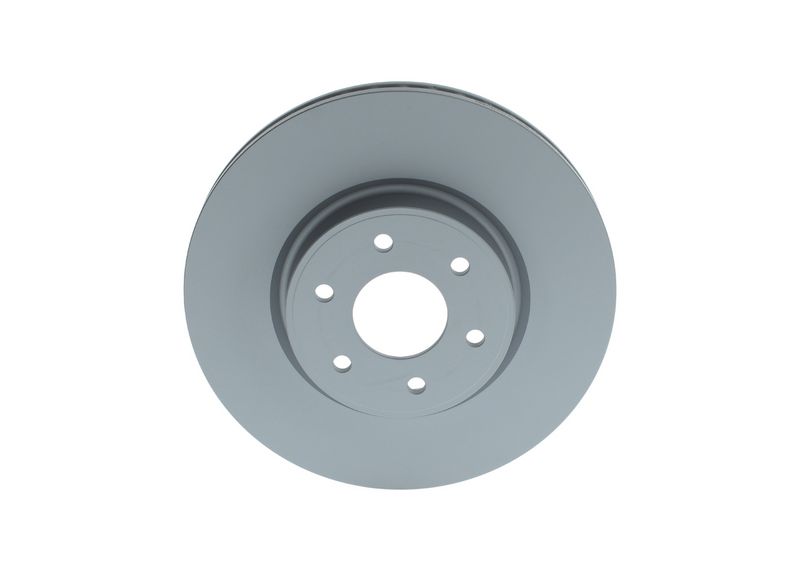

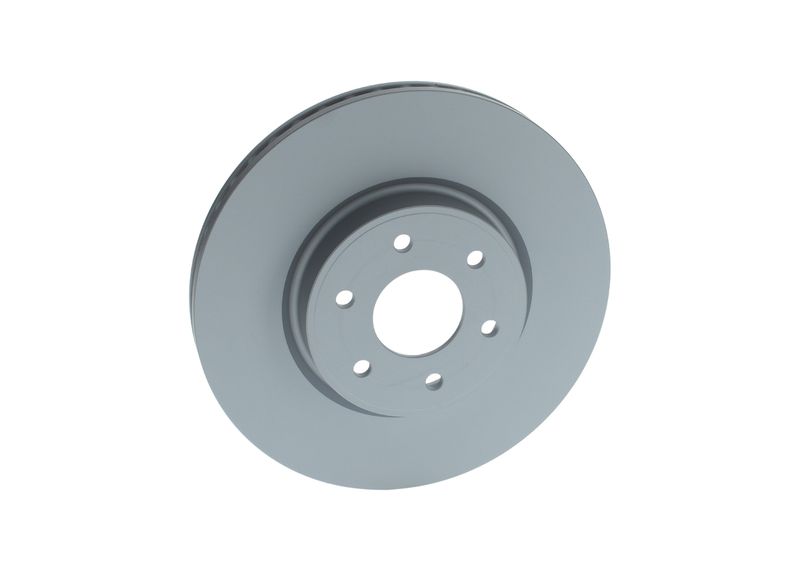

Bosch 0986479H29 Brake Disc

SKU: 0986479H29

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£63.38 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ

X-CLASS (470)

Description	Cylinder Capacity	Horse Power	Year
X 220 d (470.210)	2298 CCM	163 HP	09/2017 - 05/2020
X 220 d 4-matic (470.211)	2298 CCM	163 HP	09/2017 - 05/2020
X 250 d 4-matic (470.231)	2298 CCM	190 HP	09/2017 - 05/2020
X 250 d (470.230)	2298 CCM	190 HP	09/2017 - 05/2020
X 350 d 4-matic (470.252)	2987 CCM	258 HP	07/2018 - 05/2020

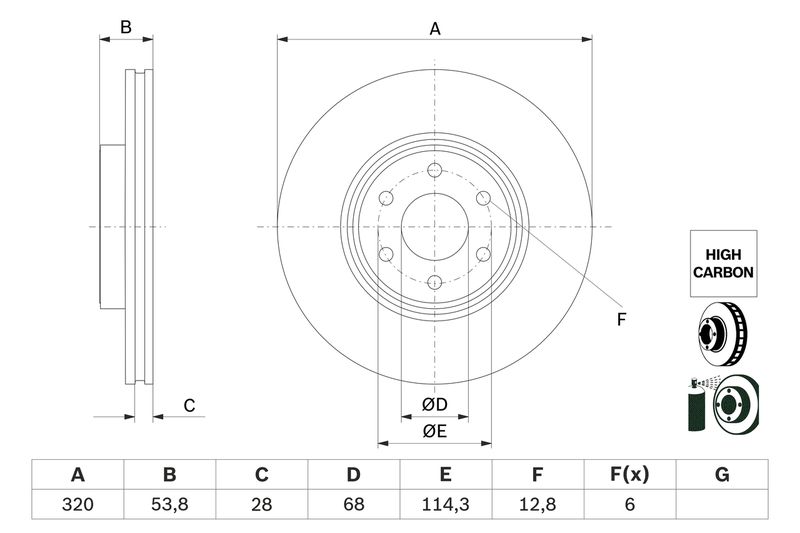

The Bosch 0986479H29 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 320 mm outer diameter, 28 mm brake disc thickness, 26 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 320

Brake Disc Thickness [mm] : 28

Minimum thickness [mm] : 26

Height [mm] : 53.8

Bolt Hole Circle Ø [mm] : 114.3

Brake Disc Type : Vented

Centering Diameter [mm] : 68

Number of Holes : 6

Surface : Coated

Machining : High-carbon

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 12.8

APEC : DSK3422
BLUE PRINT : ADU174394
BREMBO : 09.D751.11
DELPHI : BG9343C
FEBI BILSTEIN : 107222
HELLA : 8DD 355 131-401
MEYLE : 083 521 0042/PD
MINTEX : MDC2846C
NAPA : NBD5871
SKF : VKBD 81373 V1
TEXTAR : 92296503
TRW : DF6968S

Bosch 0986479H29 Brake Disc
