BOSCH

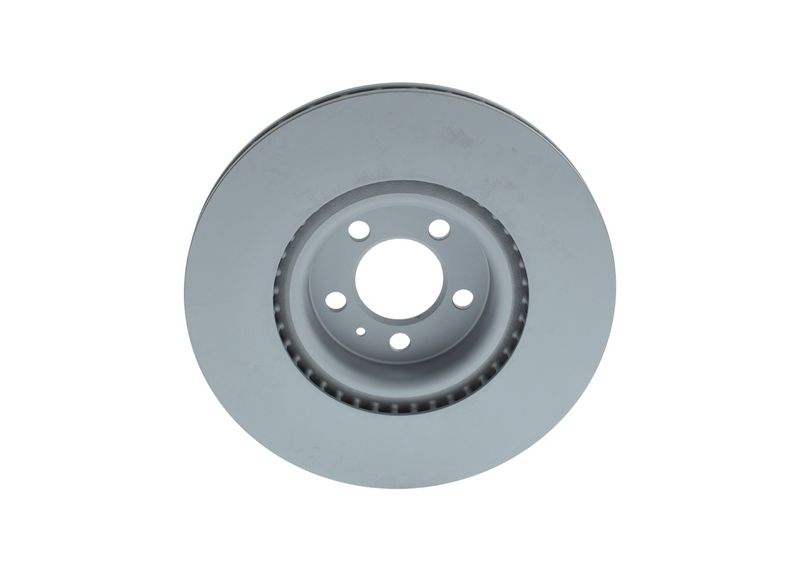

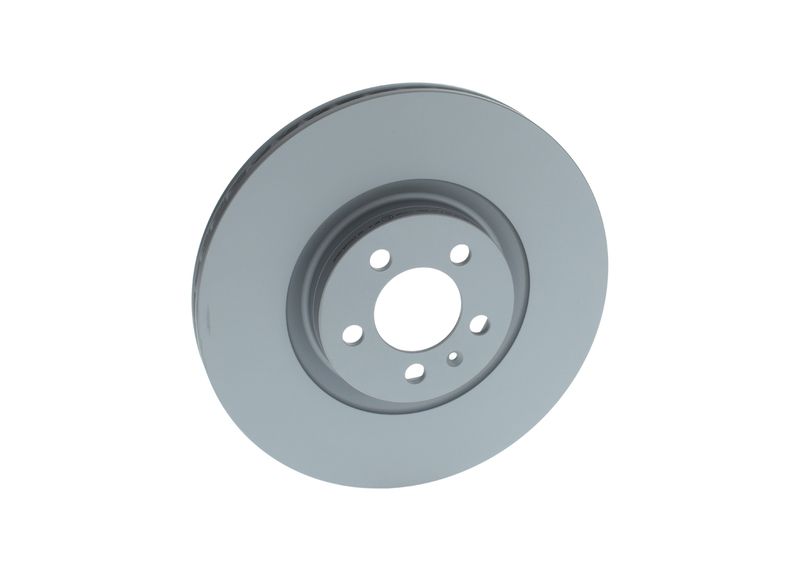

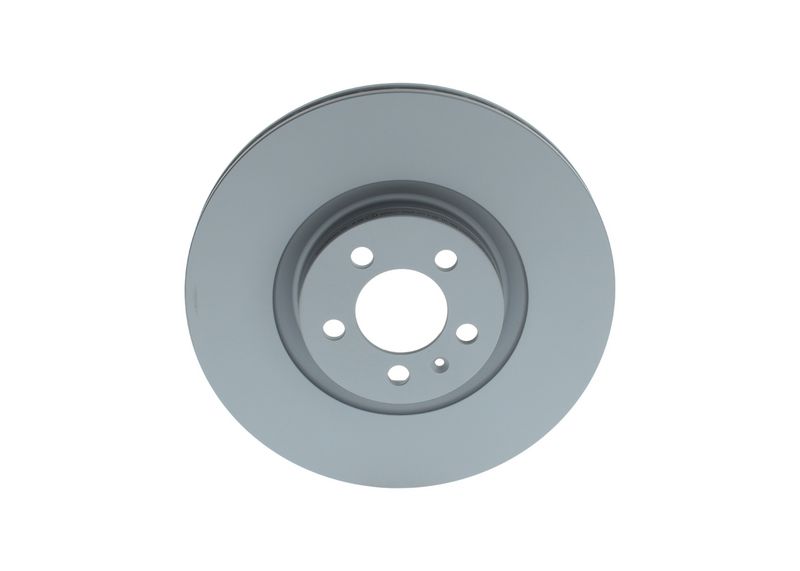

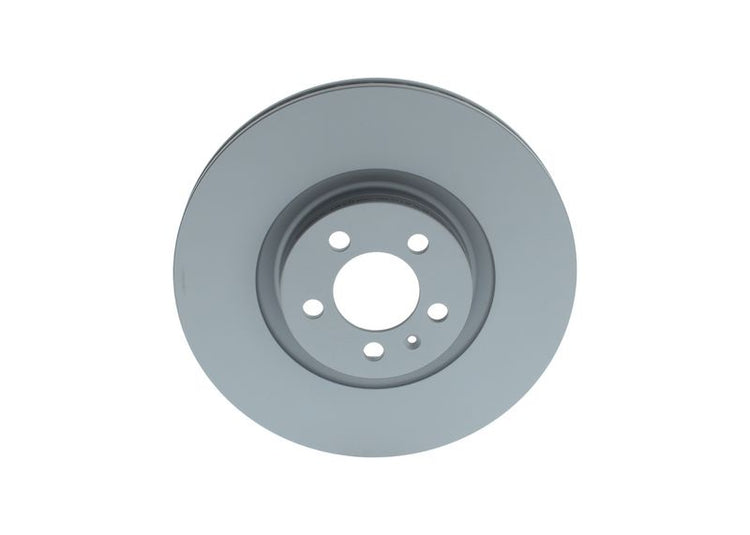

Bosch 0986479H30 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986479H30

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£56.49 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

AUDI
A1 Sportback (GBA)
Description Cylinder Capacity Horse Power Year
30 TFSI 999 CCM 116 HP From 07/2018
25 TFSI 999 CCM 95 HP From 11/2018
35 TFSI 1498 CCM 150 HP From 09/2018
40 TFSI 1984 CCM 200 HP From 09/2018
30 TFSI 999 CCM 110 HP From 09/2020
40 TFSI 1984 CCM 207 HP From 04/2021
A1 City Carver (GBH)
Description Cylinder Capacity Horse Power Year
25 TFSI 999 CCM 95 HP 07/2019 - 06/2022
30 TFSI 999 CCM 116 HP 07/2019 - 06/2022
35 TFSI 1498 CCM 150 HP 07/2019 - 06/2022
30 TFSI 999 CCM 110 HP 09/2020 - 06/2022
A1 Allstreet (GBH)
Description Cylinder Capacity Horse Power Year
25 TFSI 999 CCM 95 HP From 07/2022
30 TFSI 999 CCM 110 HP From 07/2022
35 TFSI 1498 CCM 150 HP From 07/2022
30 TFSI 999 CCM 116 HP From 03/2024

The Bosch 0986479H30 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 312 mm outer diameter, 25 mm brake disc thickness, 22.4 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

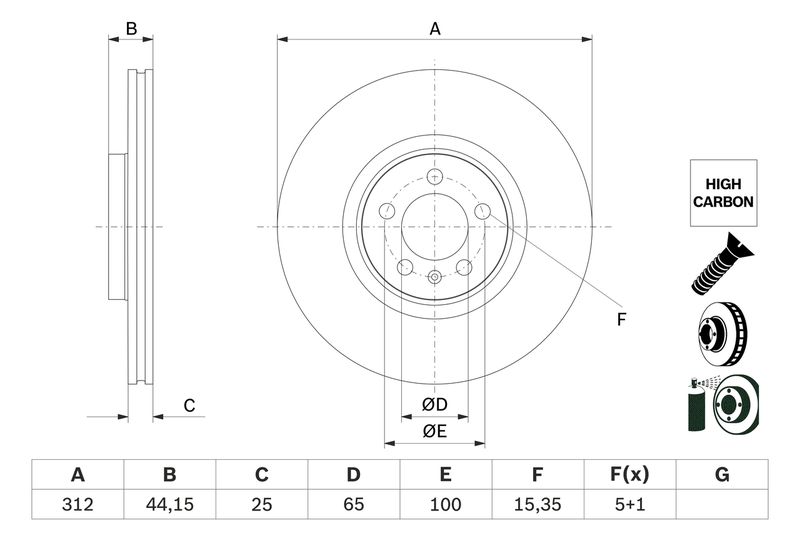

Function : Brake Disc
Outer Diameter [mm] : 312
Brake Disc Thickness [mm] : 25
Minimum thickness [mm] : 22.4
Height [mm] : 44.2
Bolt Hole Circle Ø [mm] : 100
Brake Disc Type : Vented
Centering Diameter [mm] : 65
Number of Holes : 5
Surface : Coated
Machining : High-carbon
Supplementary Article/Supplementary Info 2 : with bolts/screws
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 15.35
  • Vendor BOSCH
  • SKU 0986479H30
  • Barcode 4047026591071
  • AUDI : 2Q0 615 301 J
  • SEAT : 2Q0 615 301 J
  • SKODA : 2Q0 615 301 J
  • VW : 2Q0 615 301 J
  • APEC : DSK3547
  • BLUE PRINT : ADBP430070
  • BREMBO : 09.D974.11
  • DELPHI : BG5044C
  • FEBI BILSTEIN : 174449
  • HELLA : 8DD 355 132-261
  • MEYLE : 115 521 0072/PD
  • MINTEX : MDC2889C
  • TEXTAR : 92306405
  • TRW : DF6797S
  • BOSCH : BD2974
  • BOSCH : E1 90 R - 02 C0348/0806
