BOSCH

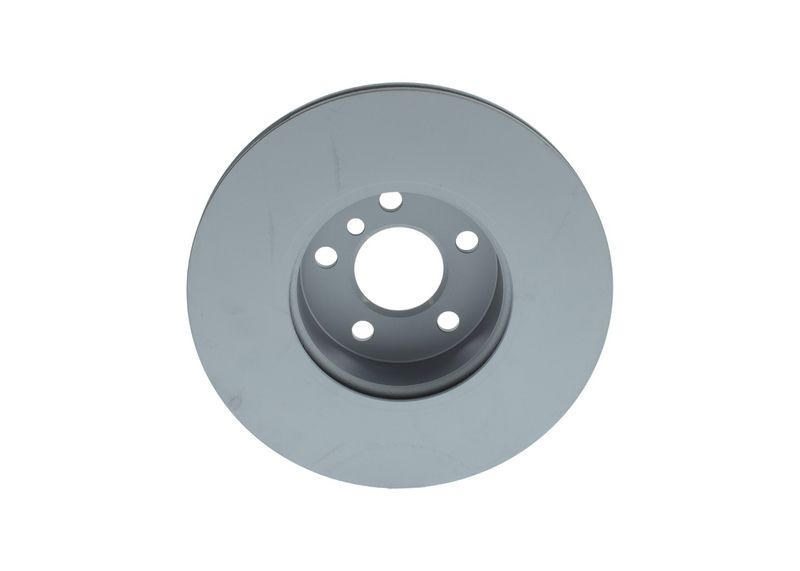

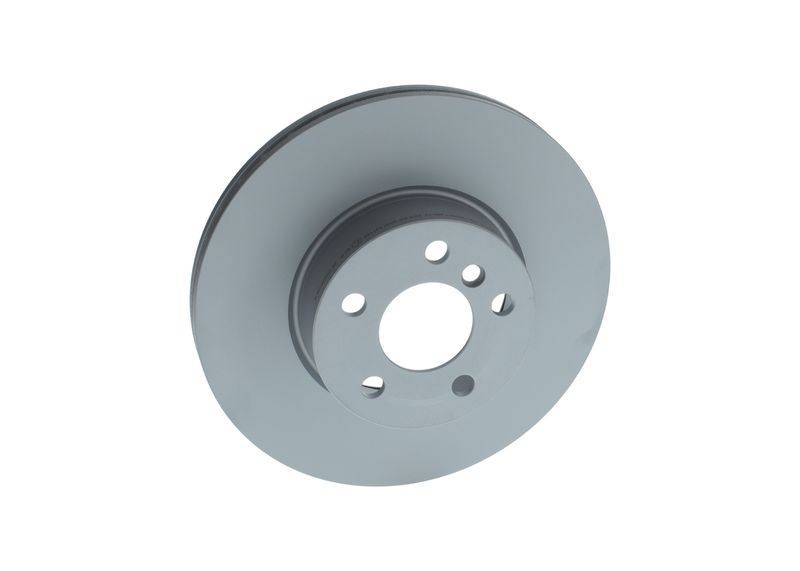

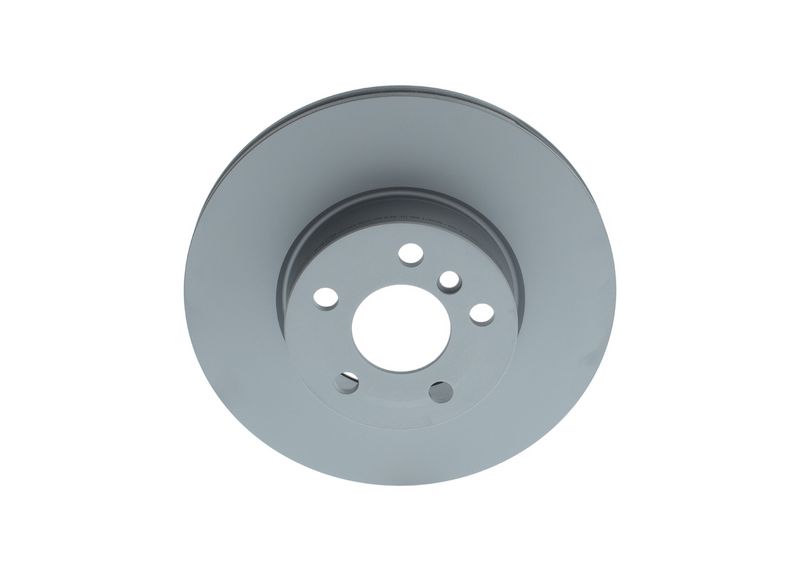

Bosch 0986479H33 Brake Disc

SKU: 0986479H33
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£58.71 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
2 Coupe (G42, G87)
Description Cylinder Capacity Horse Power Year
220 i 1998 CCM 184 HP From 08/2021
220 d Mild-Hybrid 1995 CCM 190 HP From 08/2021
3 (G20, G80, G28)
Description Cylinder Capacity Horse Power Year
320 d 1995 CCM 190 HP From 11/2018
320 d xDrive 1995 CCM 190 HP 11/2018 - 02/2020
320 d 1995 CCM 163 HP 11/2018 - 02/2020
320 d xDrive 1995 CCM 163 HP 11/2018 - 02/2020
320 i 1998 CCM 184 HP From 03/2019
320 i 1.6 1597 CCM 170 HP From 03/2019
320 i xDrive 1998 CCM 184 HP From 07/2019
3 Touring (G21, G81)
Description Cylinder Capacity Horse Power Year
320 i 1998 CCM 184 HP From 11/2019
320 d 1995 CCM 163 HP 07/2019 - 02/2020
320 d 1995 CCM 190 HP 07/2019 - 02/2020
320 d xDrive 1995 CCM 163 HP 07/2019 - 02/2020
320 d xDrive 1995 CCM 190 HP 07/2019 - 02/2020
320 d Mild-Hybrid 1995 CCM 163 HP From 03/2020
320 d Mild-Hybrid 1995 CCM 190 HP From 03/2020
3 Touring Van (G21)
Description Cylinder Capacity Horse Power Year
320 i 1998 CCM 184 HP From 11/2019
320 d 1995 CCM 190 HP 07/2019 - 02/2020
320 d Mild-Hybrid 1995 CCM 190 HP From 03/2020
320 d xDrive 1995 CCM 190 HP 07/2019 - 02/2020
320 d Mild-Hybrid xDrive 1995 CCM 190 HP From 03/2020
4 Coupe (G22, G82)
Description Cylinder Capacity Horse Power Year
420 i 1998 CCM 184 HP From 07/2020
420 d Mild-Hybrid 1995 CCM 190 HP From 07/2020
420 d Mild-Hybrid 1995 CCM 163 HP From 07/2020
420 d Mild-Hybrid xDrive 1995 CCM 190 HP From 07/2020
420 i 1.6 1597 CCM 170 HP From 11/2020
420 i xDrive 1998 CCM 184 HP From 07/2021
4 Convertible (G23, G83)
Description Cylinder Capacity Horse Power Year
420 i 1998 CCM 184 HP From 11/2020
420 d Mild-Hybrid 1995 CCM 190 HP From 11/2020
4 Gran Coupe (G26)
Description Cylinder Capacity Horse Power Year
420 i 1998 CCM 184 HP From 07/2021
420 d Mild-Hybrid 1995 CCM 190 HP From 07/2021
420 d Mild-Hybrid xDrive 1995 CCM 190 HP From 07/2021

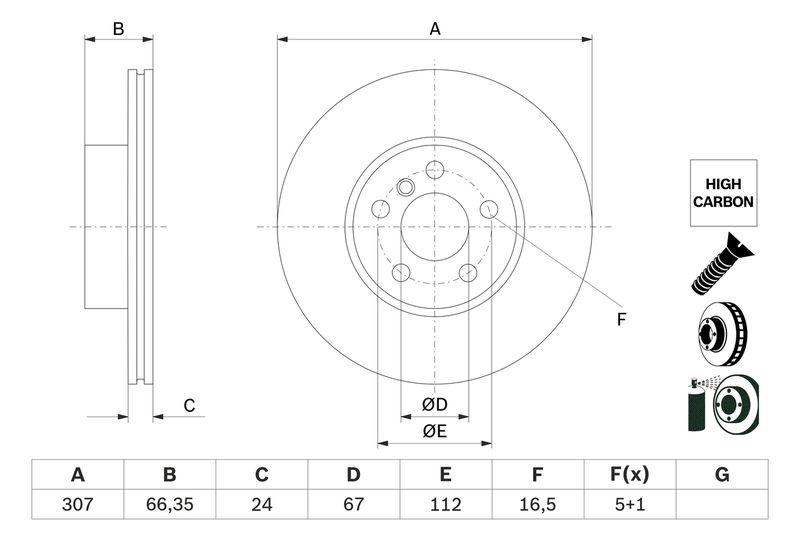

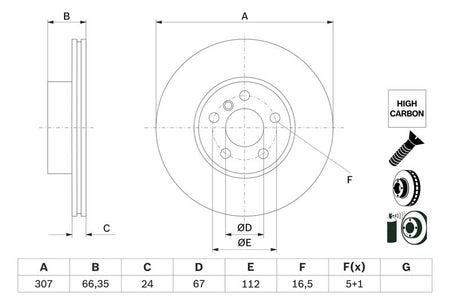

The Bosch 0986479H33 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 307 mm outer diameter, 24 mm brake disc thickness, 22 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 307
Brake Disc Thickness [mm] : 24
Minimum thickness [mm] : 22
Height [mm] : 66.4
Bolt Hole Circle Ø [mm] : 112
Brake Disc Type : Vented
Centering Diameter [mm] : 67
Number of Holes : 5
Surface : Coated
Machining : High-carbon
Supplementary Article/Supplementary Info 2 : with bolts/screws
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 16.5
  • Vendor BOSCH
  • SKU 0986479H33
  • Barcode 4047026591088
  • BMW : 34 10 6 877 212 34 10 6 880 060 34 10 6 890 789
  • APEC : DSK3508
  • BLUE PRINT : ADBP430124
  • BORG & BECK : BBD6266S
  • BREMBO : 09.D338.21
  • DELPHI : BG5074C
  • FEBI BILSTEIN : 177996
  • HELLA : 8DD 355 133-801
  • MINTEX : MDC3008C
  • NAPA : NBD5895
  • TEXTAR : 92326805
  • VALEO : 673599
  • BOSCH : BD2977
  • BOSCH : E1 90 R - 02 C0348/0806
