BOSCH

Bosch 0986479H34 Brake Disc

SKU: 0986479H34

Your selected vehicle

Out of stock

Out of Stock

£65.94 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ

A-CLASS (W177)

Description	Cylinder Capacity	Horse Power	Year
A 250 (177.046)	1991 CCM	224 HP	From 03/2018
A 250 4-matic (177.047)	1991 CCM	224 HP	From 07/2018

A-CLASS Saloon (V177)

Description	Cylinder Capacity	Horse Power	Year
A 250 (177.146)	1991 CCM	224 HP	From 09/2018
A 250 4-matic (177.147)	1991 CCM	224 HP	From 09/2018
AMG A 35 4-matic (177.151)	1991 CCM	306 HP	From 03/2019

B-CLASS Sports Tourer (W247)

Description	Cylinder Capacity	Horse Power	Year
B 250 (247.046)	1991 CCM	224 HP	From 01/2019
B 250 4-matic (247.047)	1991 CCM	224 HP	From 01/2019
B 250 e (247.086)	1332 CCM	218 HP	From 06/2020

CLA (C118)

Description	Cylinder Capacity	Horse Power	Year
CLA 220 (118.344)	1991 CCM	190 HP	From 03/2019
CLA 250 (118.346)	1991 CCM	224 HP	From 03/2019
CLA 250 4-matic (118.347)	1991 CCM	224 HP	From 03/2019

CLA Shooting Brake (X118)

Description	Cylinder Capacity	Horse Power	Year
CLA 250 e (118.686)	1332 CCM	218 HP	From 06/2020

EQA (H243)

Description	Horse Power	Year
EQA 250 (243.701)	190 HP	From 02/2021
EQA 300 4-matic (243.708, 243.709)	228 HP	From 05/2021
EQA 350 4-matic (243.712)	292 HP	From 05/2021
EQA 250+ (243.702)	190 HP	From 03/2022
EQA 350 4-matic (243.713)	292 HP	From 06/2024

EQB (X243)

Description	Horse Power	Year
EQB 350 4-matic (243.612)	292 HP	12/2021 - 08/2024
EQB 300 4-matic (243.608, 243.609)	228 HP	From 12/2021
EQB 250 (243.601)	190 HP	From 02/2022
EQB 250+ (243.602)	190 HP	From 09/2022
EQB 350 4-matic (243.613)	292 HP	From 06/2024

GLA (H247)

Description	Cylinder Capacity	Horse Power	Year
GLA 250 (247.746)	1991 CCM	224 HP	From 02/2020
GLA 250 4-matic (247.747)	1991 CCM	224 HP	From 02/2020
GLA 220 d 4-matic (247.715)	1950 CCM	190 HP	From 02/2020
GLA 220 d (247.714)	1950 CCM	190 HP	From 02/2020
GLA 180 d (247.710)	1950 CCM	116 HP	From 03/2020
GLA 250 e (247.786)	1332 CCM	218 HP	From 06/2020

GLB (X247)

Description	Cylinder Capacity	Horse Power	Year
GLB 180 d (247.610)	1950 CCM	116 HP	From 08/2019
GLB 200 d (247.612)	1950 CCM	150 HP	From 08/2019
GLB 200 d 4-matic (247.613)	1950 CCM	150 HP	From 08/2019
GLB 220 d 4-matic (247.615)	1950 CCM	190 HP	From 08/2019
GLB 250 4-matic (247.647)	1991 CCM	224 HP	From 08/2019
AMG GLB 35 4-matic (247.651)	1991 CCM	306 HP	From 08/2019
GLB 250 (247.646)	1991 CCM	224 HP	From 12/2019
GLB 220 d (247.614)	1950 CCM	190 HP	From 12/2019
GLB 220 Mild-Hybrid 4-matic (247.645)	1991 CCM	190 HP	From 03/2023
GLB 250 Mild-Hybrid 4-matic (247.647)	1991 CCM	224 HP	From 03/2023

The Bosch 0986479H34 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 330 mm outer diameter, 30 mm brake disc thickness, 27.4 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

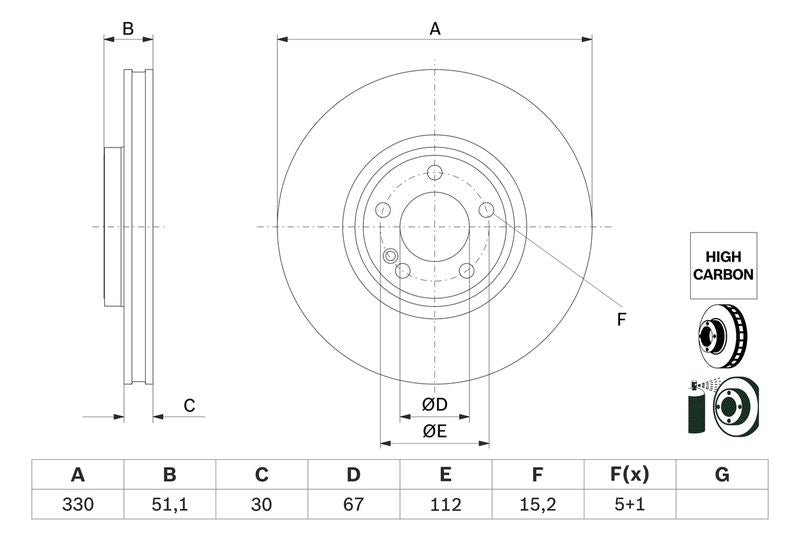

Function : Brake Disc

Outer Diameter [mm] : 330

Brake Disc Thickness [mm] : 30

Minimum thickness [mm] : 27.4

Height [mm] : 51.1

Bolt Hole Circle Ø [mm] : 112

Brake Disc Type : Vented

Centering Diameter [mm] : 67

Number of Holes : 5

Surface : Coated

Machining : High-carbon

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 15.2

APEC : DSK3436
BLUE PRINT : ADU1743118
BORG & BECK : BBD6250S
BREMBO : 09.D770.11
BREMBO : 09.D770.1X
DELPHI : BG9402C
FEBI BILSTEIN : 107515
FTE : 9082863
MINTEX : MDC2978C
National : NBD2322
TEXTAR : 92323305
TRW : DF6896S
