BOSCH

Bosch 0986479H37 Brake Disc

SKU: 0986479H37

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£88.89 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ

C-CLASS (W205)

Description	Cylinder Capacity	Horse Power	Year
C 200 (205.042)	1991 CCM	184 HP	12/2013 - 08/2018
C 220 BlueTEC / d (205.002, 205.004)	2143 CCM	170 HP	02/2014 - 05/2018
C 180 (205.040, 205.140)	1595 CCM	156 HP	03/2014 - 03/2021
C 220 BlueTEC / d (205.003)	2143 CCM	163 HP	03/2014 - 05/2016
C 180 BlueTEC / d (205.036)	1598 CCM	116 HP	05/2014 - 05/2018
C 200 BlueTEC / d (205.037)	1598 CCM	136 HP	05/2014 - 05/2018

C-CLASS T-Model (S205)

Description	Cylinder Capacity	Horse Power	Year
C 220 BlueTEC / d (205.204)	2143 CCM	170 HP	09/2014 - 05/2018
C 180 (205.240)	1595 CCM	156 HP	09/2014 - 08/2020
C 200 (205.242)	1991 CCM	184 HP	09/2014 - 05/2018
C 180 BlueTEC / d (205.236)	1598 CCM	116 HP	09/2014 - 05/2018
C 200 BlueTEC / d (205.237)	1598 CCM	136 HP	09/2014 - 05/2018
C 220 BlueTEC / d (205.204)	2143 CCM	163 HP	09/2014 - 05/2018
C 160 (205.244)	1595 CCM	129 HP	04/2015 - 11/2019

C-CLASS Coupe (C205)

Description	Cylinder Capacity	Horse Power	Year
C 220 d (205.304)	2143 CCM	170 HP	10/2015 - 05/2018
C 180 (205.340)	1595 CCM	156 HP	10/2015 - 08/2020
C 200 (205.342)	1991 CCM	184 HP	10/2015 - 05/2018
C 220 d (205.304)	2143 CCM	163 HP	10/2015 - 05/2018
C 220 d 4-matic (205.305)	2143 CCM	170 HP	04/2016 - 05/2018
C 200 4-matic (205.343)	1991 CCM	184 HP	04/2016 - 05/2018
C 220 d (205.314)	1950 CCM	194 HP	04/2018 - 04/2023

C-CLASS Convertible (A205)

Description	Cylinder Capacity	Horse Power	Year
C 180 (205.440)	1595 CCM	156 HP	06/2016 - 08/2020
C 200 (205.442)	1991 CCM	184 HP	06/2016 - 05/2018
C 200 4-matic (205.443)	1991 CCM	184 HP	06/2016 - 05/2018
C 220 d (205.404)	2143 CCM	170 HP	06/2016 - 05/2018
C 220 d 4-matic (205.405)	2143 CCM	170 HP	06/2016 - 05/2018
C 220 d (205.404)	2143 CCM	163 HP	06/2016 - 05/2018
C 220 d (205.414)	1950 CCM	194 HP	04/2018 - 04/2023
C 200 EQ Boost (205.477)	1497 CCM	184 HP	05/2018 - 04/2023

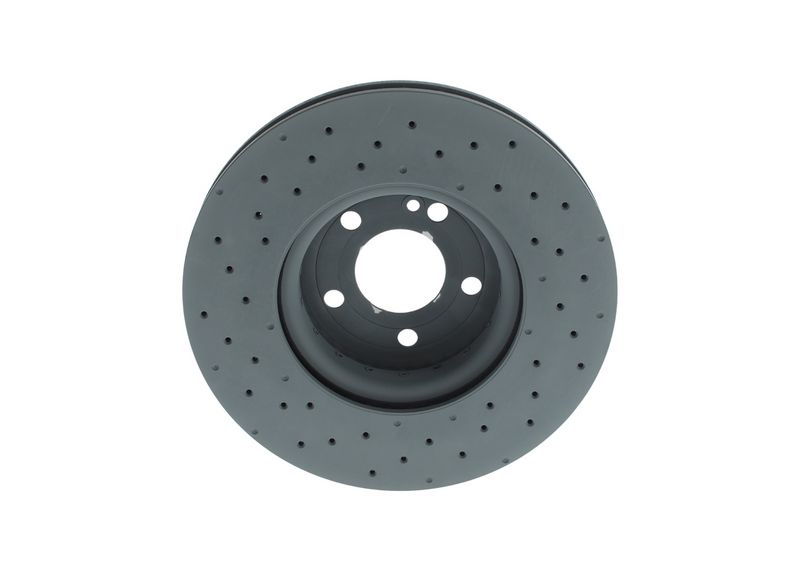

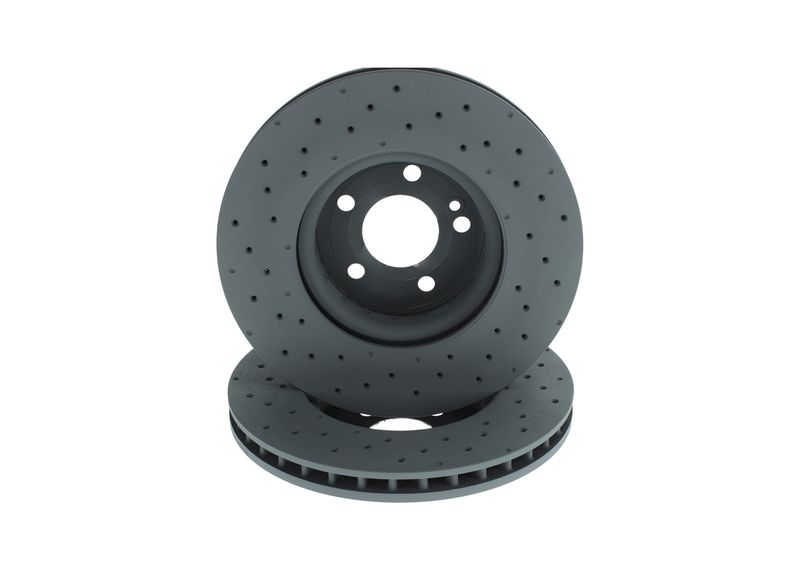

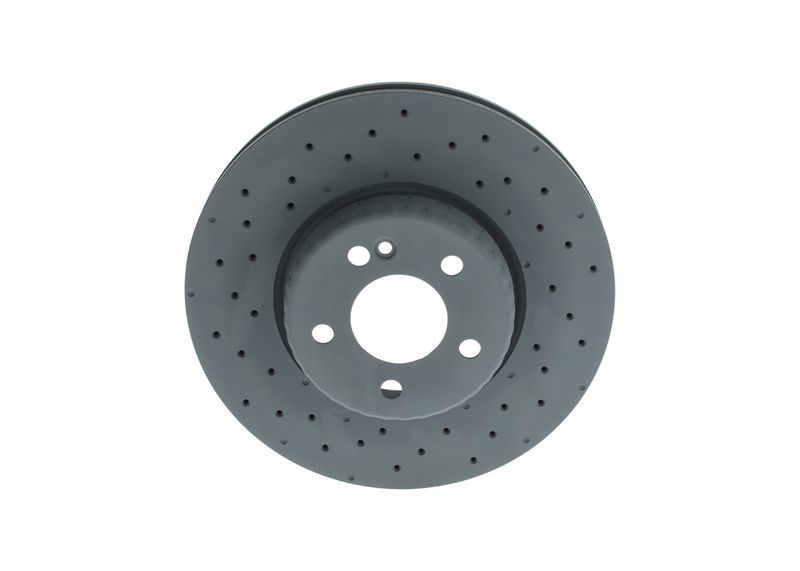

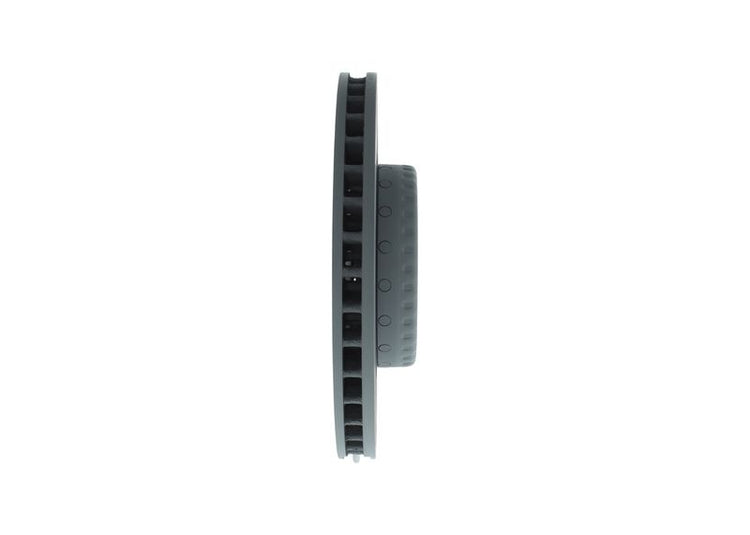

The Bosch 0986479H37 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 318 mm outer diameter, 30 mm brake disc thickness, 28 mm minimum thickness, and perforated, two-piece brake disc, and Vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

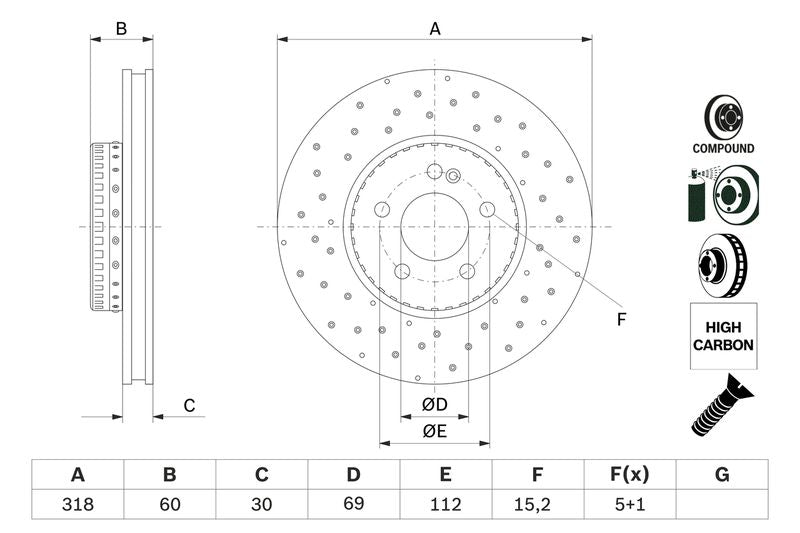

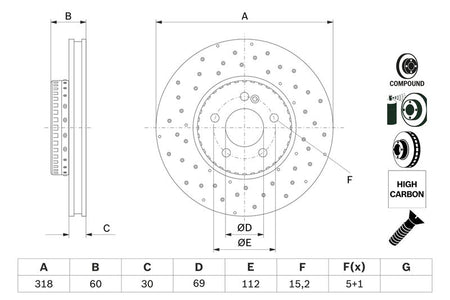

Function : Brake Disc

Outer Diameter [mm] : 318

Brake Disc Thickness [mm] : 30

Minimum thickness [mm] : 28

Height [mm] : 62.5

Bolt Hole Circle Ø [mm] : 112

Brake Disc Type : Perforated

Brake Disc Type : two-piece brake disc

Brake Disc Type : Vented

Centering Diameter [mm] : 69

Number of Holes : 5

Surface : Coated

Machining : High-carbon

Supplementary Article/Supplementary Info 2 : with bolts/screws

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 15.2
