BOSCH

Bosch 0986479H41 Brake Disc

SKU: 0986479H41

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£84.31 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ

CLS (C257)

Description	Cylinder Capacity	Horse Power	Year
CLS 300 d (257.318)	1950 CCM	245 HP	From 04/2018
CLS 350 EQ Boost (257.350)	1991 CCM	299 HP	From 08/2018
CLS 350 EQ Boost 4-matic (257.351)	1991 CCM	299 HP	From 08/2018
CLS 300 d 4-matic (257.319)	1992 CCM	265 HP	From 04/2021

E-CLASS (W213)

Description	Cylinder Capacity	Horse Power	Year
E 350 d (213.033)	2987 CCM	258 HP	01/2016 - 05/2018
E 300 (213.048)	1991 CCM	245 HP	07/2016 - 06/2020
E 350 e (213.050)	1991 CCM	286 HP	07/2016 - 06/2019

E-CLASS T-Model (S213)

Description	Cylinder Capacity	Horse Power	Year
E 350 d (213.233)	2987 CCM	258 HP	10/2016 - 05/2018

E-CLASS Coupe (C238)

Description	Cylinder Capacity	Horse Power	Year
E 300 (238.348)	1991 CCM	245 HP	From 12/2016

E-CLASS Convertible (A238)

Description	Cylinder Capacity	Horse Power	Year
E 300 (238.448)	1991 CCM	245 HP	From 06/2017

GLC (X253)

Description	Cylinder Capacity	Horse Power	Year
220 d 4-matic (253.905, 253.903)	2143 CCM	170 HP	06/2015 - 04/2019
250 d 4-matic (253.909)	2143 CCM	204 HP	06/2015 - 04/2019
250 4-matic (253.946)	1991 CCM	211 HP	06/2015 - 04/2019
300 4-matic (253.949)	1991 CCM	245 HP	07/2015 - 04/2019
350 d 4-matic (253.925)	2987 CCM	258 HP	10/2016 - 04/2019
200 d (253.913)	1950 CCM	163 HP	04/2019 - 06/2022
200 d 4-matic (253.916)	1950 CCM	163 HP	04/2019 - 06/2022
220 d (253.914)	1950 CCM	194 HP	04/2019 - 06/2022
220 d 4-matic (253.915)	1950 CCM	194 HP	04/2019 - 06/2022
300 d 4-matic (253.919)	1950 CCM	245 HP	04/2019 - 06/2022
200 EQ Boost 4-matic (253.981)	1991 CCM	197 HP	04/2019 - 06/2022

GLC Coupe (C253)

Description	Cylinder Capacity	Horse Power	Year
250 4-matic (253.346)	1991 CCM	211 HP	06/2016 - 04/2019
220 d 4-matic (253.303, 253.305)	2143 CCM	170 HP	06/2016 - 04/2019
250 d 4-matic (253.309)	2143 CCM	204 HP	06/2016 - 04/2019
350 d 4-matic (253.325)	2987 CCM	258 HP	10/2016 - 04/2019
300 4-matic (253.349)	1991 CCM	245 HP	10/2016 - 04/2019
200 d (253.313)	1950 CCM	163 HP	04/2019 - 08/2021
200 d 4-matic (253.316)	1950 CCM	163 HP	04/2019 - 03/2023
220 d 4-matic (253.315)	1950 CCM	194 HP	04/2019 - 03/2023
300 d 4-matic (253.319)	1950 CCM	245 HP	04/2019 - 03/2023
200 EQ Boost (253.380)	1991 CCM	197 HP	04/2019 - 03/2023
200 EQ Boost 4-matic (253.381)	1991 CCM	197 HP	04/2019 - 03/2023

The Bosch 0986479H41 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 342 mm outer diameter, 32 mm brake disc thickness, 29.4 mm minimum thickness, and two-piece brake disc and Vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

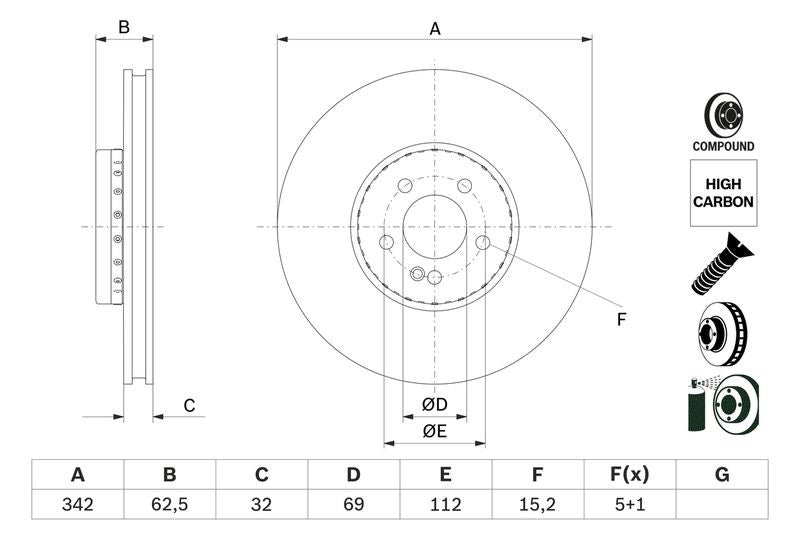

Function : Brake Disc

Outer Diameter [mm] : 342

Brake Disc Thickness [mm] : 32

Minimum thickness [mm] : 29.4

Height [mm] : 62.5

Bolt Hole Circle Ø [mm] : 112

Brake Disc Type : two-piece brake disc

Brake Disc Type : Vented

Centering Diameter [mm] : 69

Number of Holes : 5

Surface : Coated

Machining : High-carbon

Supplementary Article/Supplementary Info 2 : with bolts/screws

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 15.2
