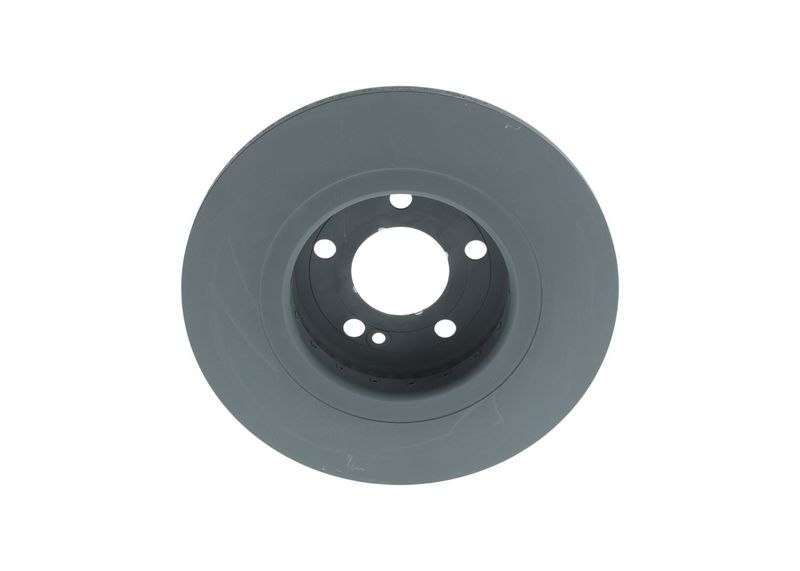

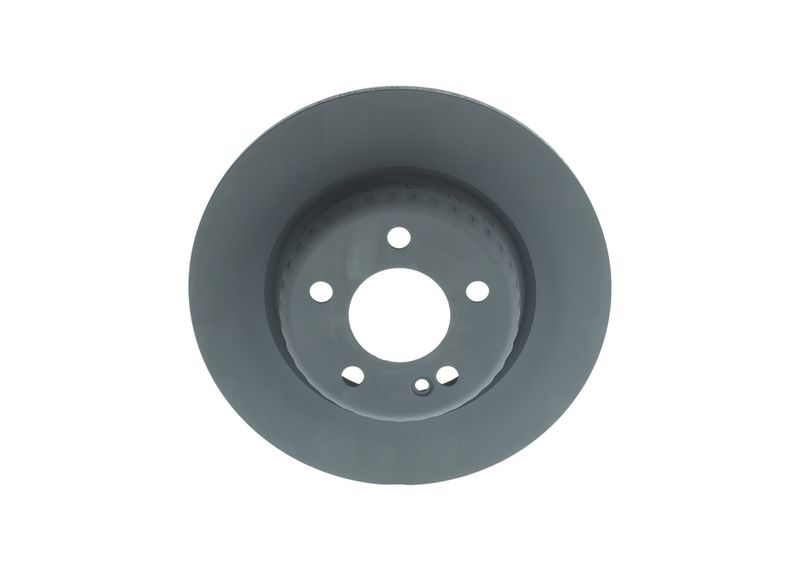

Bosch 0986479H49 Brake Disc

5.0/5 65 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986479H49

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

In stock
Orders placed by 17:00 are usually dispatched the same working day
£147.49 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

MERCEDES-BENZ
C-CLASS (W205)
Description Cylinder Capacity Horse Power Year
C 200 (205.042) 1991 CCM 184 HP 12/2013 - 08/2018
C 220 BlueTEC / d (205.002, 205.004) 2143 CCM 170 HP 02/2014 - 05/2018
C 180 (205.040, 205.140) 1595 CCM 156 HP 03/2014 - 03/2021
C 220 BlueTEC / d (205.003) 2143 CCM 163 HP 03/2014 - 05/2016
C 250 BlueTEC / d (205.008, 205.006) 2143 CCM 204 HP 02/2014 - 05/2018
C 250 (205.045) 1991 CCM 211 HP 03/2014 - 05/2018
C 180 BlueTEC / d (205.036) 1598 CCM 116 HP 05/2014 - 05/2018
C 200 BlueTEC / d (205.037) 1598 CCM 136 HP 05/2014 - 05/2018
C 250 BlueTEC / d 4-matic (205.009) 2143 CCM 204 HP 02/2014 - 05/2018
AMG C 63 (205.086) 3982 CCM 476 HP 10/2014 - 05/2021
AMG C 63 S (205.087) 3982 CCM 510 HP 10/2014 - 05/2021
C 300 (205.048) 1991 CCM 245 HP 09/2015 - 08/2018
C-CLASS T-Model (S205)
Description Cylinder Capacity Horse Power Year
C 220 BlueTEC / d (205.204) 2143 CCM 170 HP 09/2014 - 05/2018
C 250 BlueTEC / d (205.208) 2143 CCM 204 HP 09/2014 - 05/2018
C 180 (205.240) 1595 CCM 156 HP 09/2014 - 08/2020
C 200 (205.242) 1991 CCM 184 HP 09/2014 - 05/2018
C 250 (205.245) 1991 CCM 211 HP 09/2014 - 05/2018
C 180 BlueTEC / d (205.236) 1598 CCM 116 HP 09/2014 - 05/2018
C 200 BlueTEC / d (205.237) 1598 CCM 136 HP 09/2014 - 05/2018
C 250 BlueTEC / d 4-matic (205.209) 2143 CCM 204 HP 10/2014 - 05/2018
C 220 BlueTEC / d (205.204) 2143 CCM 163 HP 09/2014 - 05/2018
C 160 (205.244) 1595 CCM 129 HP 04/2015 - 11/2019
C-CLASS Coupe (C205)
Description Cylinder Capacity Horse Power Year
C 220 d (205.304) 2143 CCM 170 HP 10/2015 - 05/2018
C 250 d (205.308) 2143 CCM 204 HP 10/2015 - 05/2018
C 180 (205.340) 1595 CCM 156 HP 10/2015 - 08/2020
C 200 (205.342) 1991 CCM 184 HP 10/2015 - 05/2018
C 250 (205.345) 1991 CCM 211 HP 10/2015 - 05/2018
C 300 (205.348) 1991 CCM 245 HP 10/2015 - 12/2018
C 220 d (205.304) 2143 CCM 163 HP 10/2015 - 05/2018
C 220 d 4-matic (205.305) 2143 CCM 170 HP 04/2016 - 05/2018
C 250 d 4-matic (205.309) 2143 CCM 204 HP 04/2016 - 05/2018
C 200 4-matic (205.343) 1991 CCM 184 HP 04/2016 - 05/2018
C 220 d (205.314) 1950 CCM 194 HP 04/2018 - 04/2023
C-CLASS Convertible (A205)
Description Cylinder Capacity Horse Power Year
C 180 (205.440) 1595 CCM 156 HP 06/2016 - 08/2020
C 200 (205.442) 1991 CCM 184 HP 06/2016 - 05/2018
C 200 4-matic (205.443) 1991 CCM 184 HP 06/2016 - 05/2018
C 250 (205.445) 1991 CCM 211 HP 06/2016 - 05/2018
C 220 d (205.404) 2143 CCM 170 HP 06/2016 - 05/2018
C 220 d 4-matic (205.405) 2143 CCM 170 HP 06/2016 - 05/2018
C 250 d (205.408) 2143 CCM 204 HP 06/2016 - 05/2018
C 220 d (205.404) 2143 CCM 163 HP 06/2016 - 05/2018
C 220 d (205.414) 1950 CCM 194 HP 04/2018 - 04/2023
C 200 EQ Boost (205.477) 1497 CCM 184 HP 05/2018 - 04/2023

The Bosch 0986479H49 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 300 mm outer diameter, 12 mm brake disc thickness, 10.3 mm minimum thickness, and two-piece brake disc and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

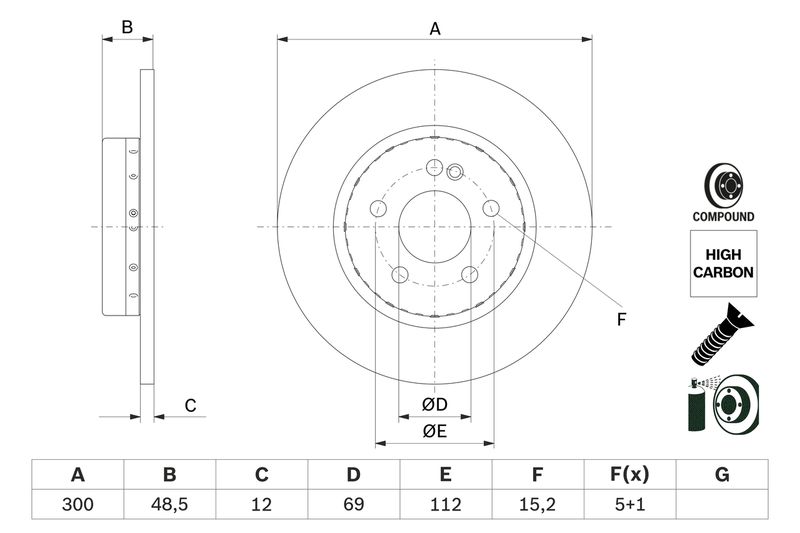

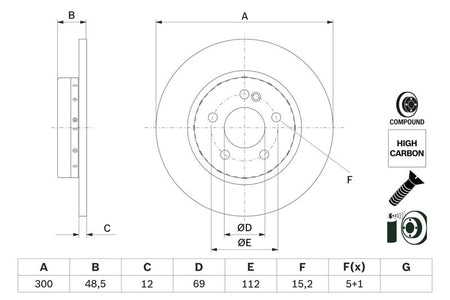

Function : Brake Disc
Outer Diameter [mm] : 300
Brake Disc Thickness [mm] : 12
Minimum thickness [mm] : 10.3
Height [mm] : 48.5
Bolt Hole Circle Ø [mm] : 112
Brake Disc Type : two-piece brake disc
Brake Disc Type : solid
Centering Diameter [mm] : 69
Number of Holes : 5
Surface : Coated
Machining : High-carbon
Supplementary Article/Supplementary Info 2 : with bolts/screws
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 15.2
  • Vendor BOSCH
  • SKU 0986479H49
  • Barcode 4047026559415
  • MERCEDES-BENZ : A 000 423 05 12 000 423 05 12
  • BLUE PRINT : ADU1743119
  • BREMBO : 08.D530.13
  • FEBI BILSTEIN : 107726
  • MEYLE : 083 523 1000/PD
  • SKF : VKBD 91110 S1
  • TRW : DF6646S
  • TRW : DF6680
  • BOSCH : BD3001
  • BOSCH : E1 90R-02C0811/1919
