BOSCH

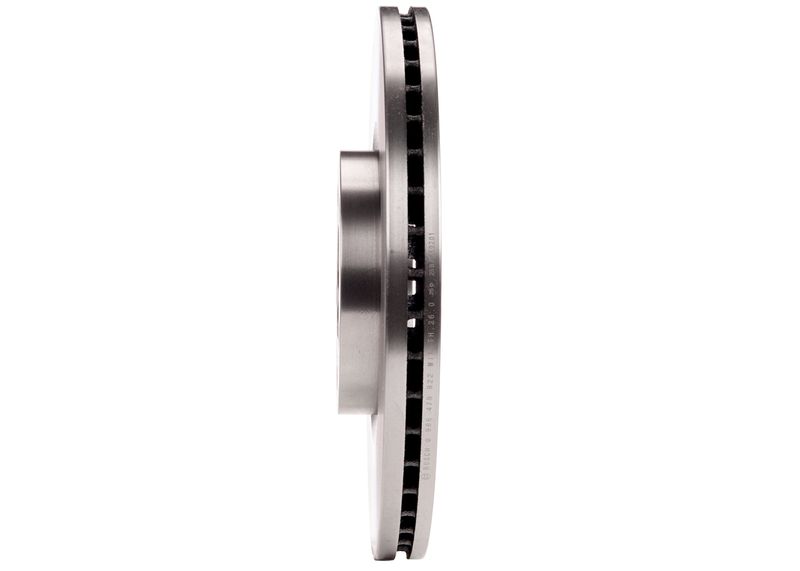

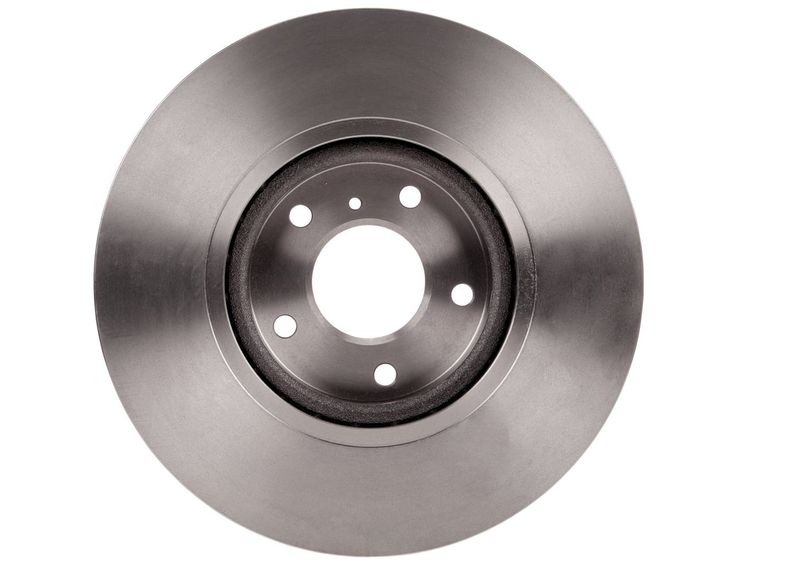

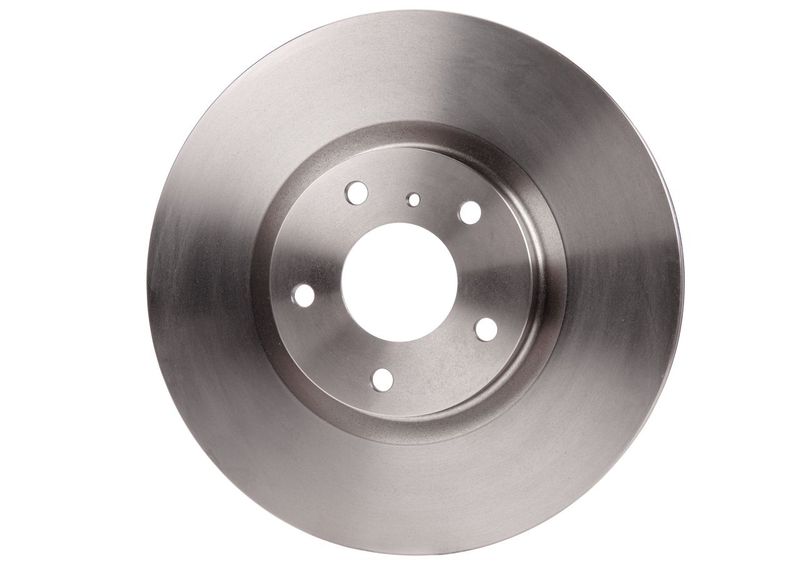

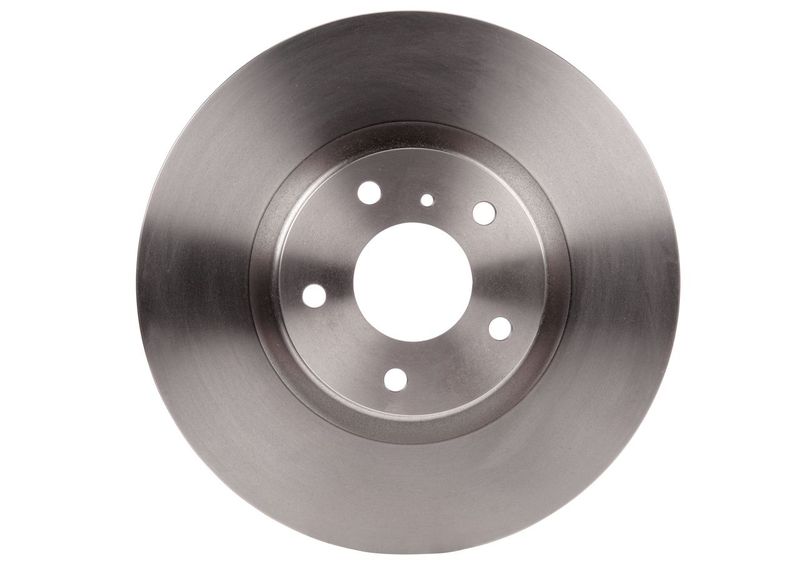

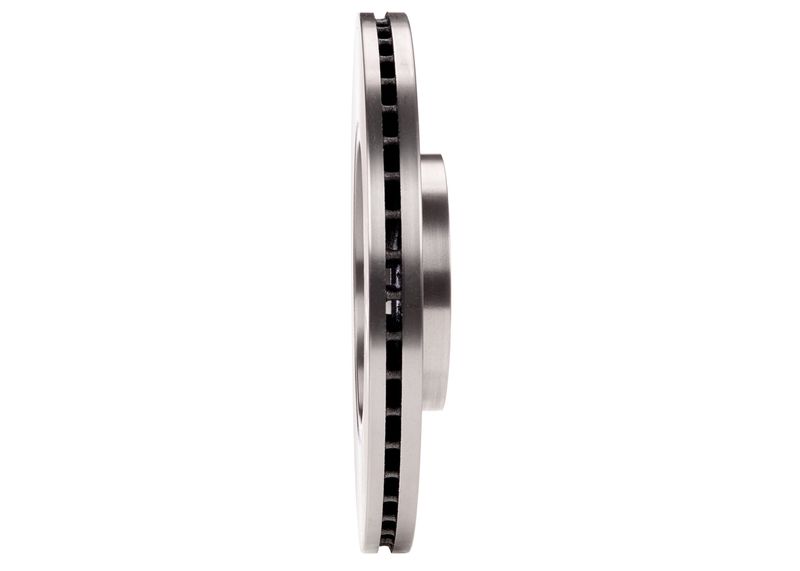

Bosch 0986479R22 Brake Disc

5.0/5 65 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986479R22

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£54.40 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

NISSAN
370Z Coupe (Z34)
Description Cylinder Capacity Horse Power Year
3.7 3696 CCM 328 HP From 06/2009
3.7 3696 CCM 337 HP From 04/2009
MURANO I (Z50)
Description Cylinder Capacity Horse Power Year
3.5 4x4 3498 CCM 234 HP 08/2003 - 09/2008
3.5 4x4 3498 CCM 245 HP 11/2004 - 06/2008
3.5 4x4 3498 CCM 231 HP 01/2006 - 09/2008
MURANO II (Z51)
Description Cylinder Capacity Horse Power Year
2.5 dCi 4x4 2488 CCM 190 HP 01/2010 - 09/2014
3.5 4x4 3498 CCM 256 HP 10/2008 - 09/2014
3.5 3498 CCM 265 HP 11/2007 - 09/2014
3.5 4x4 3498 CCM 265 HP 11/2007 - 09/2014
3.5 4x4 3498 CCM 260 HP 12/2009 - 09/2014
3.5 4x4 3498 CCM 249 HP 12/2010 - 09/2014
SKYLINE Coupe (V35)
Description Cylinder Capacity Horse Power Year
3.5 4x4 3498 CCM 280 HP 08/2003 - 08/2007

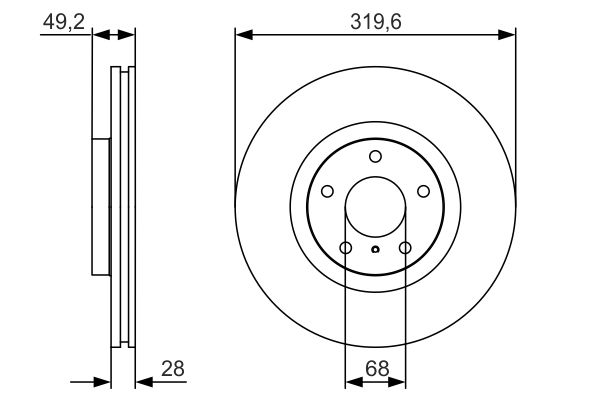

The Bosch 0986479R22 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 319.5 mm outer diameter, 28 mm brake disc thickness, 26 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 319.5
Brake Disc Thickness [mm] : 28
Minimum thickness [mm] : 26
Height [mm] : 49.2
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : Vented
Centering Diameter [mm] : 68
Number of Holes : 5
Surface : Oiled
Bore Diameter up to [mm] : 12.8
  • Vendor BOSCH
  • SKU 0986479R22
  • Barcode 4047025120982
  • NISSAN : 40206 CA010 40206 EG000 402061AA0A
  • INFINITI : 40206 CA010 40206 EG000
  • APEC : DSK2567
  • BLUE PRINT : ADN143143
  • BORG & BECK : BBD5799S
  • BREMBO : 09.B266.10
  • BREMBO : 09.B266.11
  • BREMBO : 09.B266.1X
  • DELPHI : BG4107
  • FTE : 9071318
  • FTE : 9081200
  • HELLA : 8DD 355 114-101
  • MEYLE : 36-15 521 0072/PD
  • MINTEX : MDC1829
  • SKF : VKBD 80633 V1
  • TEXTAR : 92162405
  • TRW : DF4983S
  • BOSCH : BD1757
