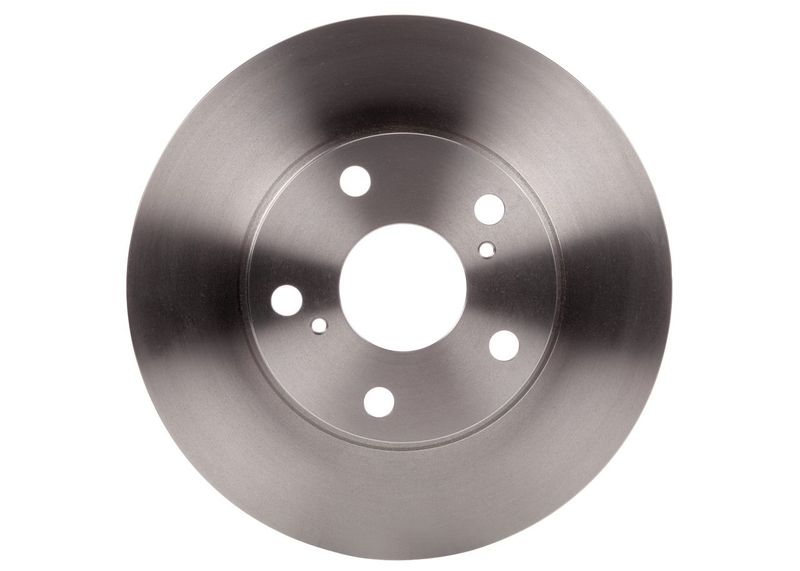

Bosch 0986479R45 Brake Disc - 1

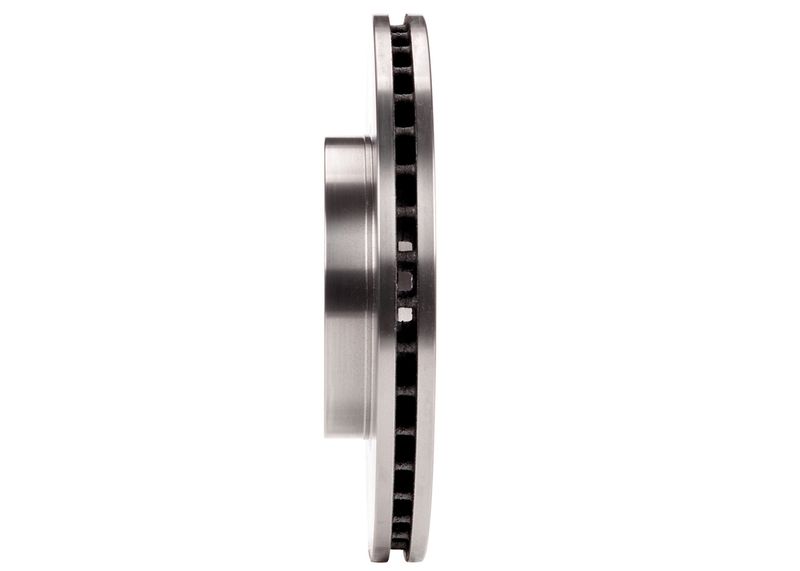

Bosch 0986479R45 Brake Disc - 2

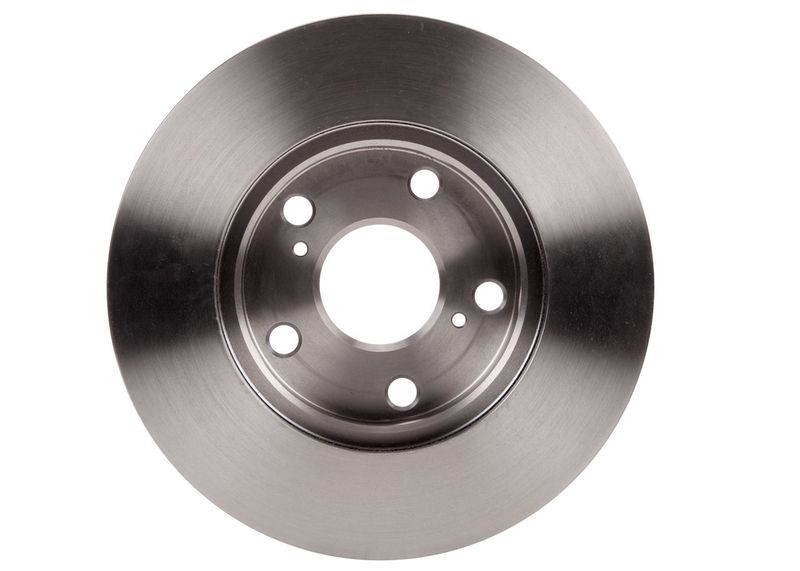

Bosch 0986479R45 Brake Disc - 3

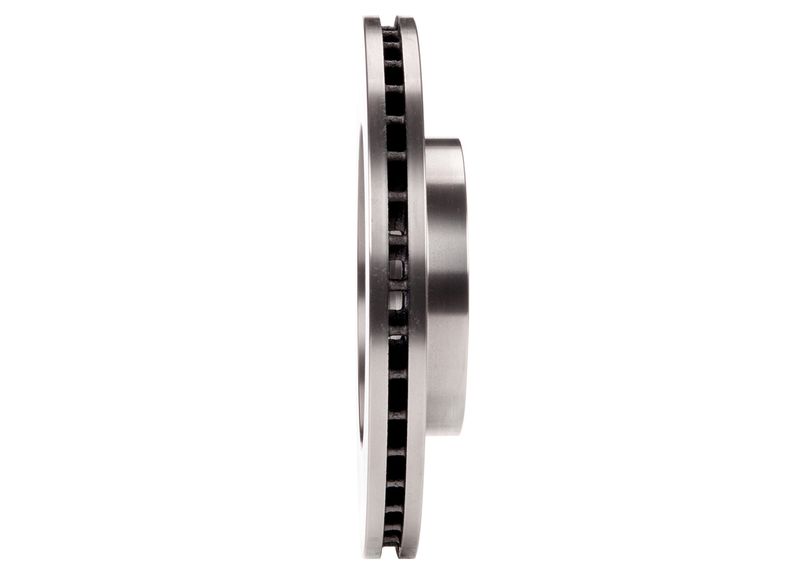

Bosch 0986479R45 Brake Disc - 4

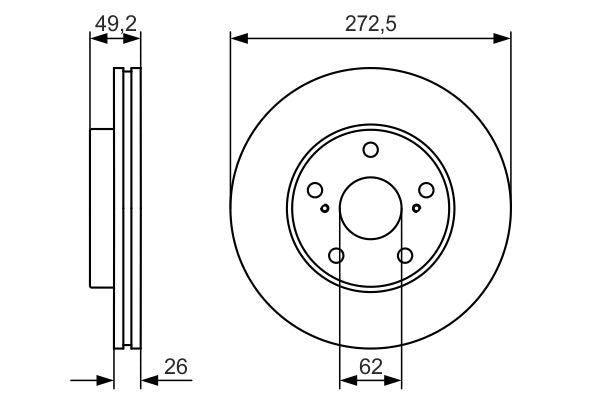

Bosch 0986479R45 Brake Disc - 5

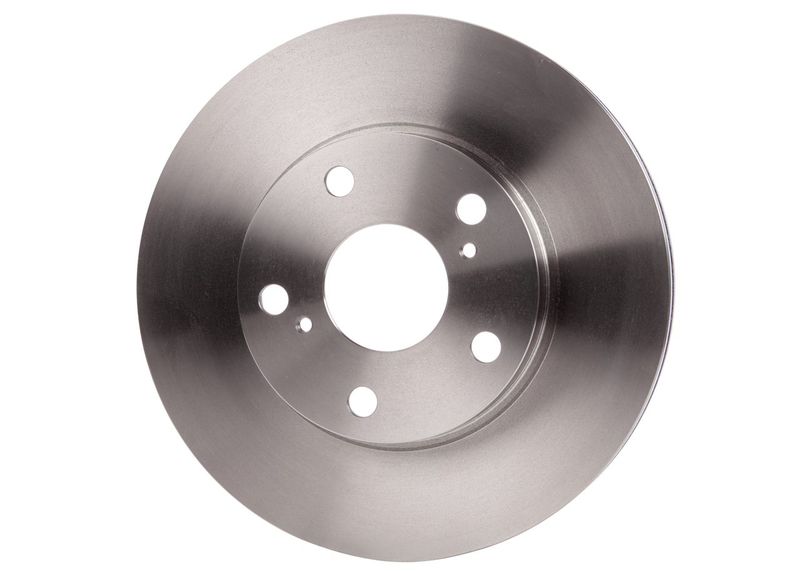

Bosch 0986479R45 Brake Disc - 6
Bosch 0986479R45 Brake Disc - 1
Bosch 0986479R45 Brake Disc - 2
Bosch 0986479R45 Brake Disc - 3
Bosch 0986479R45 Brake Disc - 4
Bosch 0986479R45 Brake Disc - 5
Bosch 0986479R45 Brake Disc - 6
BOSCH

Bosch 0986479R45 Brake Disc

SKU: 0986479R45
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£54.95 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
AURIS (_E15_)
Description Cylinder Capacity Horse Power Year
1.8 (ZRE152_, ZRE152) 1798 CCM 144 HP 02/2009 - 09/2012
1.4 D-4D (NDE150_, NDE150R) 1364 CCM 90 HP 03/2007 - 09/2012
1.6 (ZRE151_, ZRE151R) 1598 CCM 124 HP 03/2007 - 09/2012
1.4 (ZZE150_, ZZE150R) 1398 CCM 97 HP 03/2007 - 09/2012
1.33 Dual-VVTi (NRE150_, NRE150R) 1329 CCM 101 HP 05/2009 - 09/2012
1.6 (ZRE151_, ZRE151R) 1598 CCM 132 HP 05/2009 - 09/2012
1.8 (ZRE152_, ZRE152) 1798 CCM 147 HP 02/2009 - 09/2012
1.8 Hybrid (ZWE150_, ZWE150R) 1798 CCM 136 HP 09/2010 - 09/2012
1.33 Dual-VVTi (NRE150_, NRE150R) 1329 CCM 99 HP 01/2010 - 09/2012
AURIS Hatchback Van (_E15_)
Description Cylinder Capacity Horse Power Year
1.4 D-4D (NDE150) 1364 CCM 90 HP 03/2007 - 09/2012
COROLLA Saloon (_E15_)
Description Cylinder Capacity Horse Power Year
1.4 VVT-i (ZZE150_) 1398 CCM 97 HP 11/2006 - 11/2013
1.3 (NRE150) 1329 CCM 101 HP 12/2008 - 07/2014
1.4 D-4D (NDE150) 1364 CCM 90 HP 10/2006 - 07/2014
1.8 (ZRE142, ZRE152) 1798 CCM 136 HP 10/2006 - 07/2014
1.6 VVTi (ZRE151) 1598 CCM 136 HP 03/2007 - 12/2010

The Bosch 0986479R45 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 273 mm outer diameter, 26 mm brake disc thickness, 23 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 273
Brake Disc Thickness [mm] : 26
Minimum thickness [mm] : 23
Height [mm] : 49.2
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : Vented
Centering Diameter [mm] : 62
Number of Holes : 5
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 14.7
  • Vendor BOSCH
  • SKU 0986479R45
  • Barcode 4047025126694
  • TOYOTA : 43512 02180 43512 02200 43512 12690
  • APEC : DSK2745
  • APEC : SDK6272
  • BLUE PRINT : ADT343279
  • BORG & BECK : BBD4682
  • BREMBO : 09.A865.11
  • BREMBO : 09.A865.14
  • BREMBO : 09.A865.1X
  • DELPHI : BG4234C
  • Fahren : FBD6272
  • FEBI BILSTEIN : 108453
  • HELLA : 8DD 355 118-951
  • MEYLE : 30-15 521 0063
  • MINTEX : MDC2017C
  • NAPA : NBD5183
  • SKF : VKBD 80494 V2
  • TEXTAR : 92163703
  • TRW : DF4808
  • VALEO : 672755
  • BOSCH : BD1780
