BOSCH

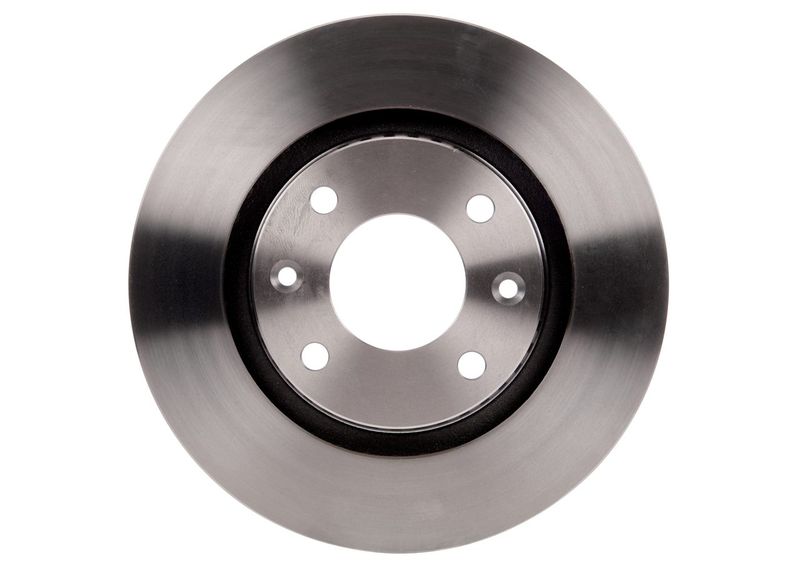

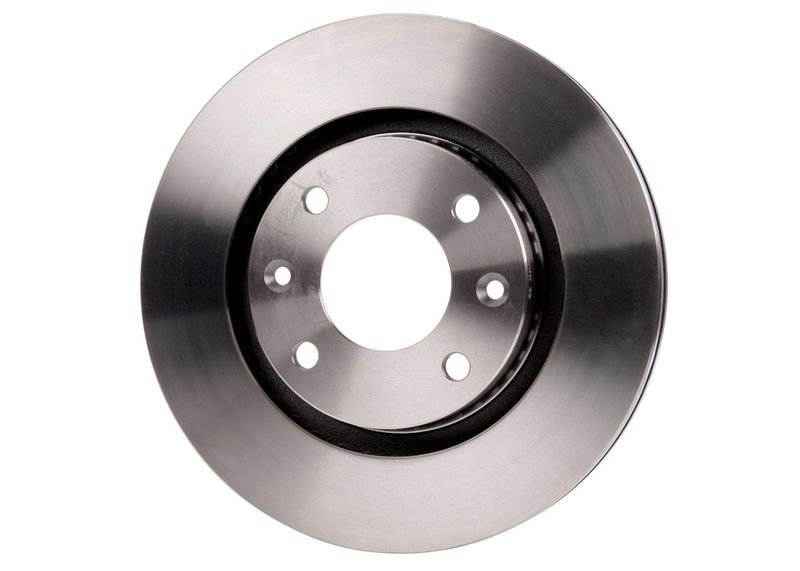

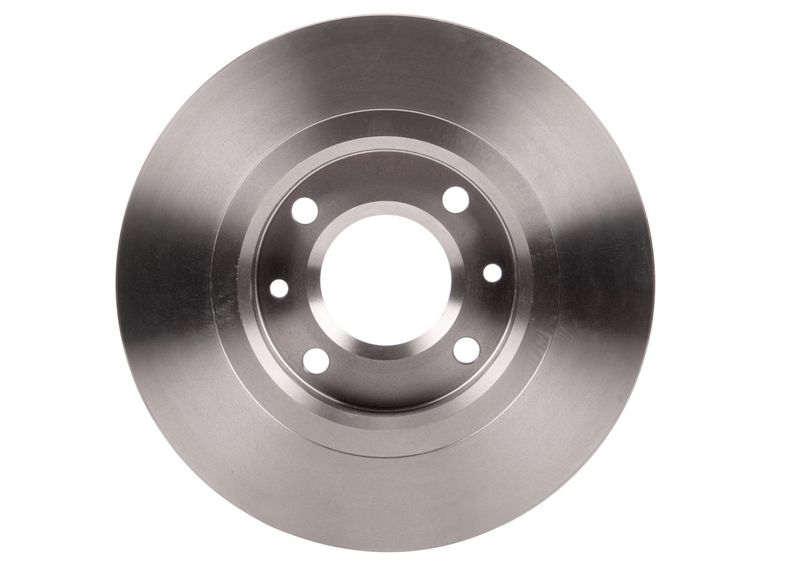

Bosch 0986479R63 Brake Disc

SKU: 0986479R63
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£46.06 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

OPEL
CROSSLAND X / CROSSLAND (P17, P2QO)
Description Cylinder Capacity Horse Power Year
1.2 (75) 1199 CCM 131 HP From 03/2017
1.2 (75) 1199 CCM 82 HP From 03/2017
1.2 (75) 1199 CCM 110 HP From 03/2017
1.6 Turbo D (75) 1560 CCM 99 HP 03/2017 - 05/2018
1.6 Turbo D (75) 1560 CCM 120 HP 03/2017 - 05/2018
1.6 Turbo D (75) 1560 CCM 116 HP 08/2017 - 04/2019
1.2 LPG (75) 1199 CCM 82 HP From 10/2017
1.5 Turbo D (75) 1499 CCM 102 HP From 06/2018
1.5 Turbo D (75) 1499 CCM 120 HP From 08/2018
1.2 1199 CCM 83 HP From 07/2019
1.5 (75) 1499 CCM 110 HP From 10/2020
ROCKS-E
Description Cylinder Capacity Horse Power Year
Electric (9AZ2CA) 8 HP From 10/2021
VAUXHALL
CROSSLAND X / CROSSLAND (P17)
Description Cylinder Capacity Horse Power Year
1.2 (75) 1199 CCM 83 HP From 03/2017
1.2 (75) 1199 CCM 110 HP From 03/2017
1.2 (75) 1199 CCM 131 HP From 03/2017
1.6 Turbo D (75) 1560 CCM 99 HP 03/2017 - 05/2018
1.6 Turbo D (75) 1560 CCM 120 HP 03/2017 - 05/2018
1.5 Turbo D (75) 1499 CCM 102 HP From 06/2018
1.5 Turbo D (75) 1499 CCM 120 HP From 08/2018
1.5 Turbo D ((75)) 1499 CCM 110 HP From 10/2020

The Bosch 0986479R63 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 266 mm outer diameter, 22 mm brake disc thickness, 20 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 266
Brake Disc Thickness [mm] : 22
Minimum thickness [mm] : 20
Height [mm] : 34.2
Bolt Hole Circle Ø [mm] : 108
Brake Disc Type : Vented
Centering Diameter [mm] : 66
Number of Holes : 4
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 13
  • Vendor BOSCH
  • SKU 0986479R63
  • Barcode 4047025145800
  • APEC : DSK2136
  • APEC : SDK6040
  • BLUE PRINT : ADP154311
  • BORG & BECK : BBD4245
  • BREMBO : 09.8695.11
  • BREMBO : 09.8695.14
  • BREMBO : 09.8695.1X
  • BREMBO : 09.8695.75
  • DELPHI : BG3620
  • Fahren : FBD6040
  • FEBI BILSTEIN : 21120
  • HELLA : 8DD 355 108-351
  • MEYLE : 11-15 521 0017
  • MEYLE : 11-83 521 0017/PD
  • MINTEX : MDC1491C
  • NAPA : NBD5185
  • SKF : VKBD 80001 V2
  • TEXTAR : 92111500
  • TEXTAR : 92111503
  • TRW : DF4184
  • BOSCH : BD1983
  • BOSCH : E1 90R-02C0141/0112
