BOSCH

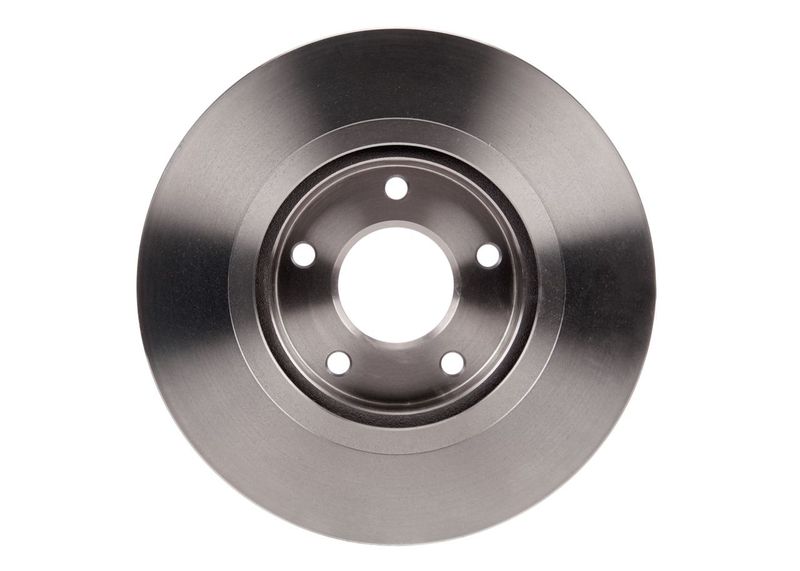

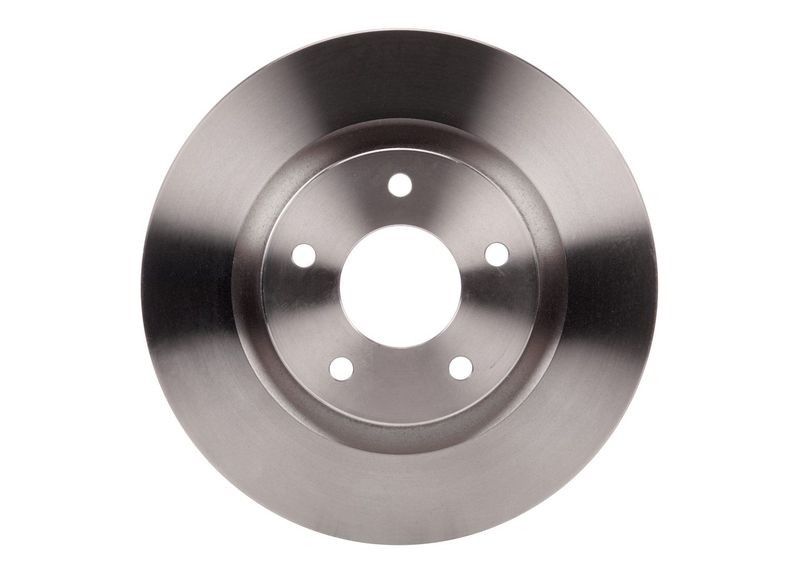

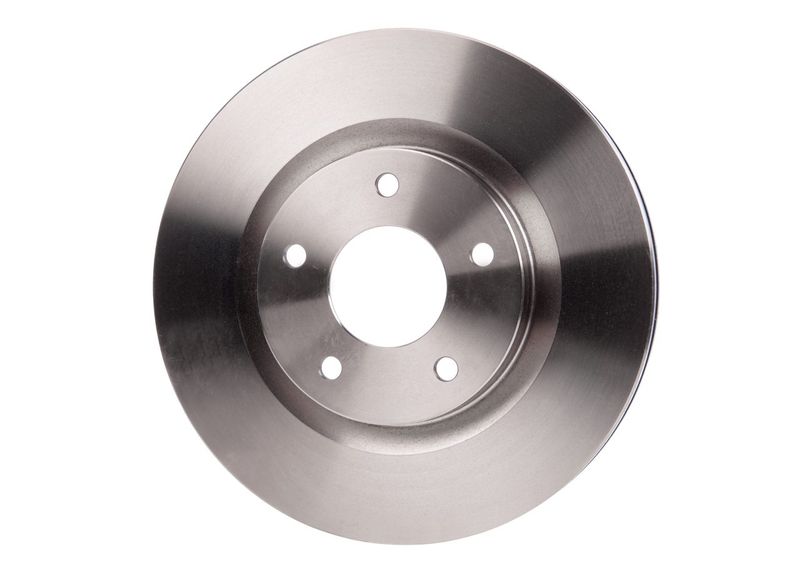

Bosch 0986479R89 Brake Disc

SKU: 0986479R89

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£75.45 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

NISSAN

JUKE (F15)

Description	Cylinder Capacity	Horse Power	Year
1.6 DIG-T 4x4	1618 CCM	190 HP	06/2010 - 12/2019
1.6 DIG-T	1618 CCM	190 HP	06/2010 - 12/2019
1.6 DIG-T NISMO 4x4	1618 CCM	200 HP	11/2012 - 12/2019

QASHQAI I (J10, NJ10)

Description	Cylinder Capacity	Horse Power	Year
1.5 dCi	1461 CCM	110 HP	01/2010 - 12/2013
1.6	1598 CCM	117 HP	11/2010 - 12/2013
2.0	1997 CCM	141 HP	02/2007 - 12/2013
2.0 All-wheel Drive	1997 CCM	141 HP	02/2007 - 12/2013
1.6 dCi All-wheel Drive	1598 CCM	130 HP	10/2011 - 12/2013
1.6 dCi	1598 CCM	130 HP	10/2011 - 12/2013
1.6	1598 CCM	114 HP	02/2007 - 12/2013
1.5 dCi	1461 CCM	106 HP	11/2006 - 11/2013
2.0 dCi	1995 CCM	150 HP	02/2007 - 12/2013
2.0 dCi All-wheel Drive	1995 CCM	150 HP	02/2007 - 12/2013
1.5 dCi	1461 CCM	103 HP	08/2008 - 01/2010
2.0	1997 CCM	139 HP	02/2007 - 12/2013
2.0 All-wheel Drive	1997 CCM	139 HP	02/2007 - 12/2013

QASHQAI +2 (JJ10E)

Description	Cylinder Capacity	Horse Power	Year
1.6	1598 CCM	114 HP	02/2007 - 12/2013
1.6	1598 CCM	117 HP	02/2010 - 11/2013
2.0	1997 CCM	139 HP	02/2007 - 12/2013
2.0	1997 CCM	141 HP	08/2008 - 04/2014
1.5 dCi	1461 CCM	103 HP	08/2008 - 01/2010
1.5 dCi	1461 CCM	106 HP	08/2008 - 11/2013
1.5 dCi	1461 CCM	110 HP	02/2010 - 11/2013

X-TRAIL I (T30)

Description	Cylinder Capacity	Horse Power	Year
2.5 4x4	2488 CCM	179 HP	11/2002 - 01/2013

X-TRAIL II (T31)

Description	Cylinder Capacity	Horse Power	Year
2.0 dCi	1995 CCM	150 HP	06/2007 - 11/2013
2.0 dCi 4x4	1995 CCM	173 HP	06/2007 - 11/2013
2.0 4x4	1997 CCM	141 HP	06/2007 - 11/2013
2.0 dCi 4x4	1995 CCM	150 HP	06/2007 - 11/2013
2.5 4x4	2488 CCM	169 HP	06/2007 - 11/2013
2.0 FWD	1997 CCM	141 HP	03/2007 - 11/2013
2.0 FWD	1998 CCM	140 HP	06/2008 - 11/2013
2.0 4x4	1998 CCM	140 HP	06/2008 - 11/2013
2.0 4x4	1997 CCM	137 HP	06/2007 - 11/2013
2.0 dCi 4x4	1995 CCM	177 HP	10/2009 - 11/2013

X-TRAIL VAN (T31)

Description	Cylinder Capacity	Horse Power	Year
dCi	1995 CCM	150 HP	01/2011 - 02/2014
dCi 4x4	1995 CCM	173 HP	03/2013 - 02/2014

The Bosch 0986479R89 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 296.2 mm outer diameter, 26 mm brake disc thickness, 24 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 296.2

Brake Disc Thickness [mm] : 26

Minimum thickness [mm] : 24

Height [mm] : 44

Bolt Hole Circle Ø [mm] : 114.3

Brake Disc Type : Vented

Centering Diameter [mm] : 68

Number of Holes : 5

Surface : Oiled

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 12.8

APEC : DSK2554
APEC : SDK6239
BLUE PRINT : ADN143130
BLUE PRINT : ADN143155
BORG & BECK : BBD4657
BREMBO : 09.A716.20
BREMBO : 09.A716.21
DELPHI : BG4109
DELPHI : BG4109C
Fahren : FBD6239
FEBI BILSTEIN : 108381
FEBI BILSTEIN : 108505
FEBI BILSTEIN : 170850
HELLA : 8DD 355 114-601
HELLA : 8DD 355 116-761
MEYLE : 36-15 521 0071/PD
MINTEX : MDC1905
MINTEX : MDC1905C
NAPA : NBD5157
SKF : VKBD 80070 V2
TEXTAR : 92167403
TEXTAR : 92167405
TRW : DF4964
TRW : DF4989S
VALEO : 673115

Bosch 0986479R89 Brake Disc
