Bosch 0986479R96 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986479R96

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£39.35 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

SUBARU
JUSTY Mk II (JMA, MS)
Description Cylinder Capacity Horse Power Year
1.3 GX 4x4 1298 CCM 68 HP 10/1995 - 11/2003
SUZUKI
ALTO IV (EF, SH410_)
Description Cylinder Capacity Horse Power Year
1.0 (SH410) 993 CCM 53 HP 09/1994 - 06/2002
ALTO V (HA12_, HA23_, HA22_)
Description Cylinder Capacity Horse Power Year
1.0 993 CCM 58 HP 01/2000 - 06/2002
CAPPUCCINO (EE)
Description Cylinder Capacity Horse Power Year
0.7 (SX306, EA11) 657 CCM 64 HP 02/1992 - 08/1995
0.7 (SX306, EA21) 657 CCM 64 HP 08/1995 - 08/1998
SWIFT Mk II Saloon (AH, AJ)
Description Cylinder Capacity Horse Power Year
1.3 (SF413, AH35, MA) 1298 CCM 68 HP 01/1991 - 12/1995
1.0 993 CCM 53 HP 01/1994 - 05/2001
SWIFT Mk II Hatchback (EA, MA)
Description Cylinder Capacity Horse Power Year
1.0 (SF310, AA44) 993 CCM 50 HP 03/1989 - 05/2001
1.0 i (SF310, AA44) 993 CCM 53 HP 01/1995 - 12/2005
1.0 i (SF310, AA44) 993 CCM 54 HP 03/1989 - 12/1991
1.3 (SF413, AB35) 1298 CCM 68 HP 03/1989 - 05/2001
1.3 4WD (SF413, AA35) 1324 CCM 68 HP 03/1989 - 05/2001
1.3 4WD (SF413, AF35) 1324 CCM 71 HP 10/1989 - 12/1991
1.3 (SF 413) 1298 CCM 69 HP 03/1989 - 10/1996
1.3 (SF 413) 1298 CCM 71 HP 03/1989 - 12/1997
SWIFT Convertible (SF413)
Description Cylinder Capacity Horse Power Year
1.3 i (SF413, AK35, SY415, E35) 1298 CCM 68 HP 09/1991 - 10/1996

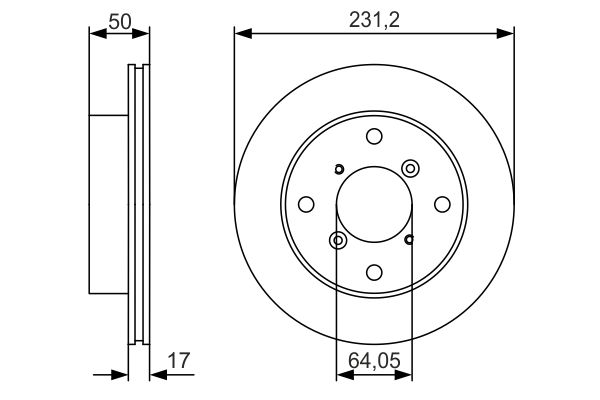

The Bosch 0986479R96 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 231.2 mm outer diameter, 17 mm brake disc thickness, 15 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 231.2
Brake Disc Thickness [mm] : 17
Minimum thickness [mm] : 15
Height [mm] : 50
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : Vented
Centering Diameter [mm] : 64.1
Number of Holes : 4
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 12.7
  • Vendor BOSCH
  • SKU 0986479R96
  • Barcode 4047025138222
  • APEC : DSK229
  • BLUE PRINT : ADK84308
  • BLUE PRINT : ADK84333
  • BORG & BECK : BBD5025
  • BREMBO : 09.5857.14
  • BREMBO : 09.5857.75
  • DELPHI : BG2645
  • FEBI BILSTEIN : 10867
  • FTE : 9082750
  • HELLA : 8DD 355 103-921
  • MEYLE : 33-15 521 0002
  • MINTEX : MDC791
  • TEXTAR : 92069000
  • TEXTAR : 92069003
  • TRW : DF3032
  • BOSCH : BD1892
  • BOSCH : E1 90R-02C0349/0289
