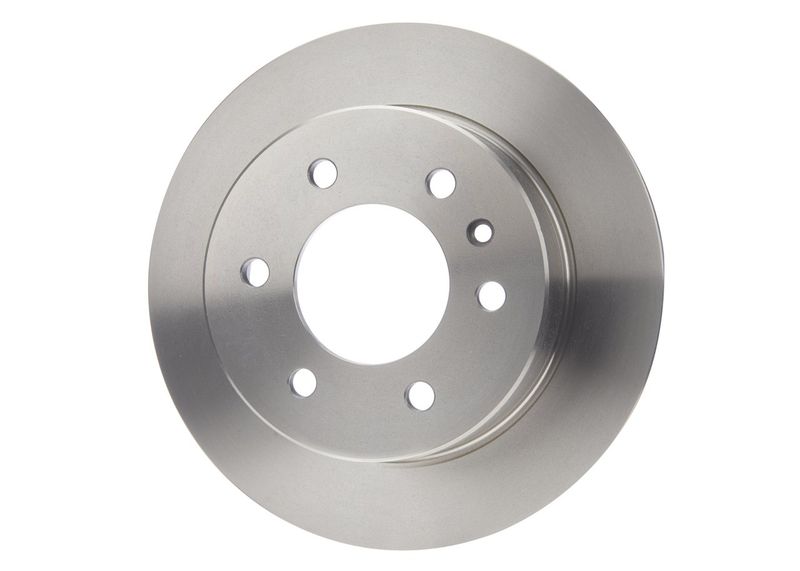

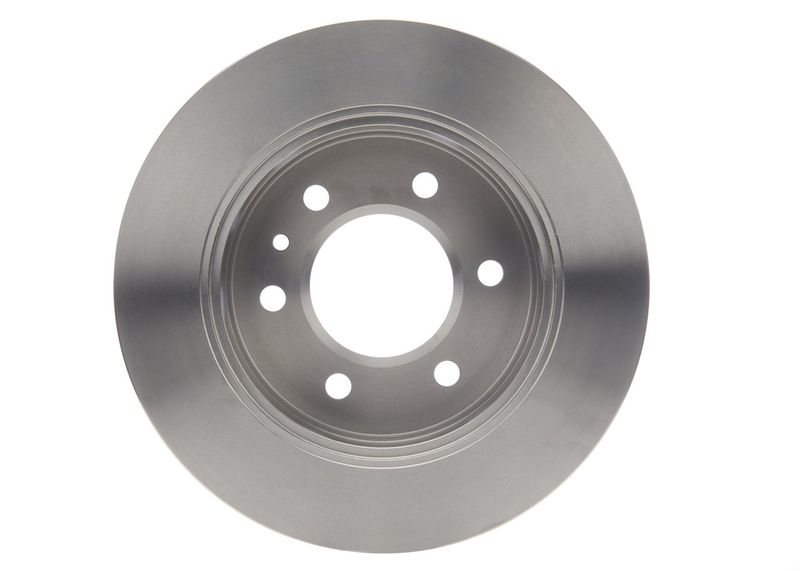

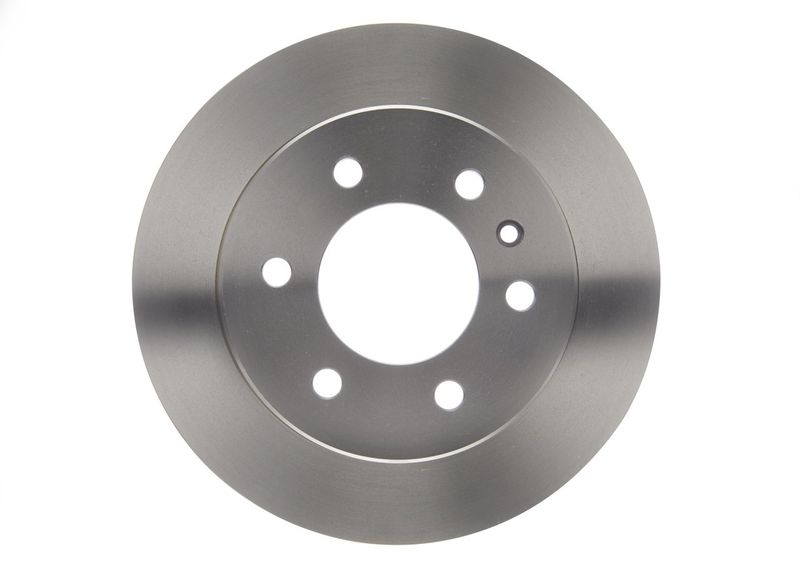

Bosch 0986479S05 Brake Disc
Your selected vehicle
Regular price
£87.20
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

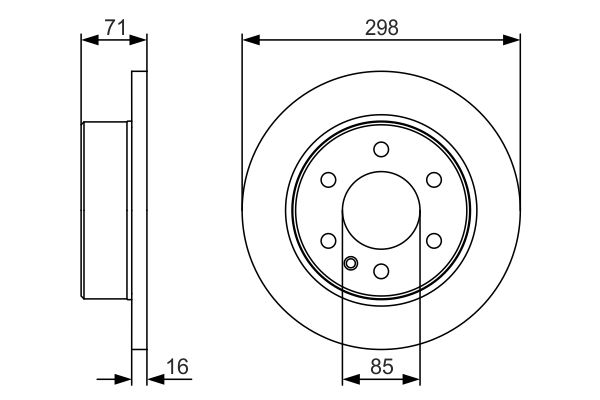

The Bosch 0986479S05 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 298 mm outer diameter, 16 mm brake disc thickness, 14 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Disc
Outer Diameter [mm] :
298
Brake Disc Thickness [mm] :
16
Minimum thickness [mm] :
14
Height [mm] :
71
Bolt Hole Circle Ø [mm] :
130
Brake Disc Type :
solid
Centering Diameter [mm] :
85
Number of Holes :
6
Surface :
Oiled
fulfils ECE standard :
ECE-R90
Bore Diameter up to [mm] :
15
- Vendor BOSCH
- SKU 0986479S05
- MERCEDES-BENZ : A 906 423 00 12 A 910 423 00 00 A 910 423 01 00 906 423 00 12 910 423 00 00 910 423 01 00
- VW : 2E0 615 601 A
- APEC : DSK2449
- APEC : SDK6023
- BLUE PRINT : ADU174351
- DELPHI : BG4033
- Fahren : FBD6023
- FEBI BILSTEIN : 27699
- HELLA : 8DD 355 117-641
- MINTEX : MDC1772
- MINTEX : MDC1772C
- NAPA : NBD5184
- SKF : VKBD 90032 S1
- TEXTAR : 93143303
- TRW : DF4823S
- VALEO : 672918
- BOSCH : BD1901
- BOSCH : E1 90R-02C0357/1551
