BOSCH

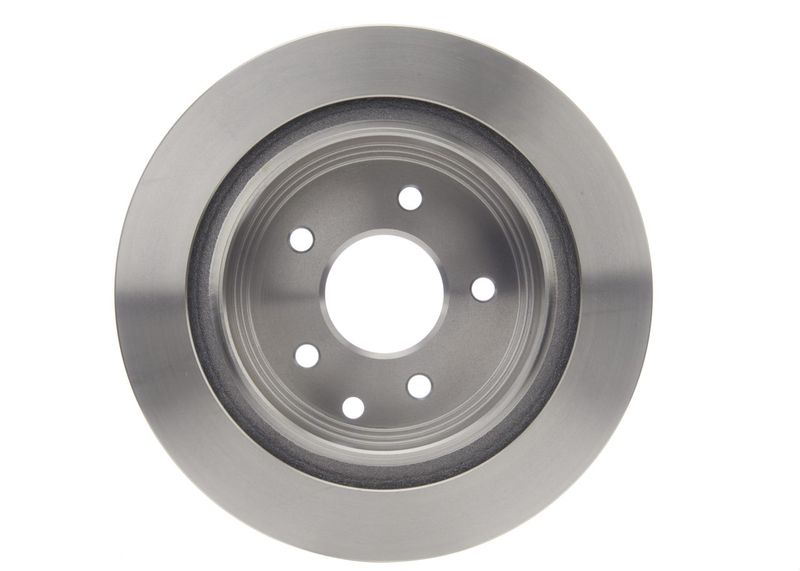

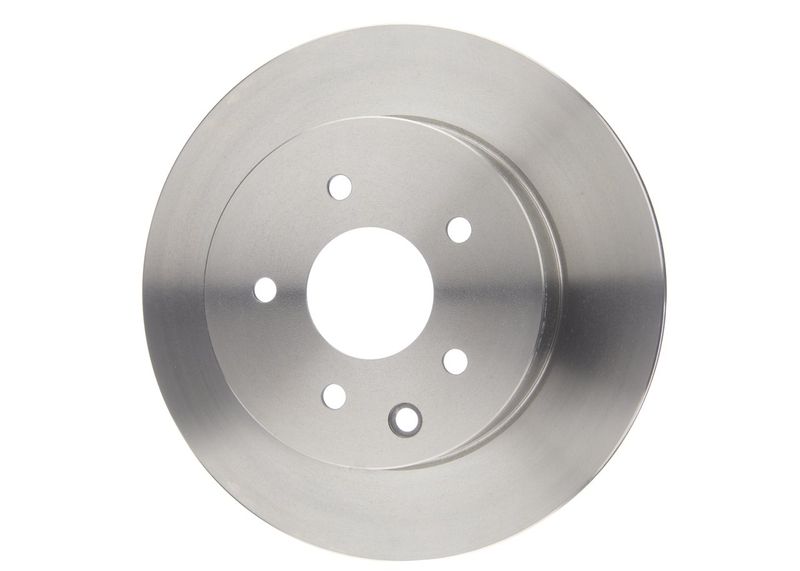

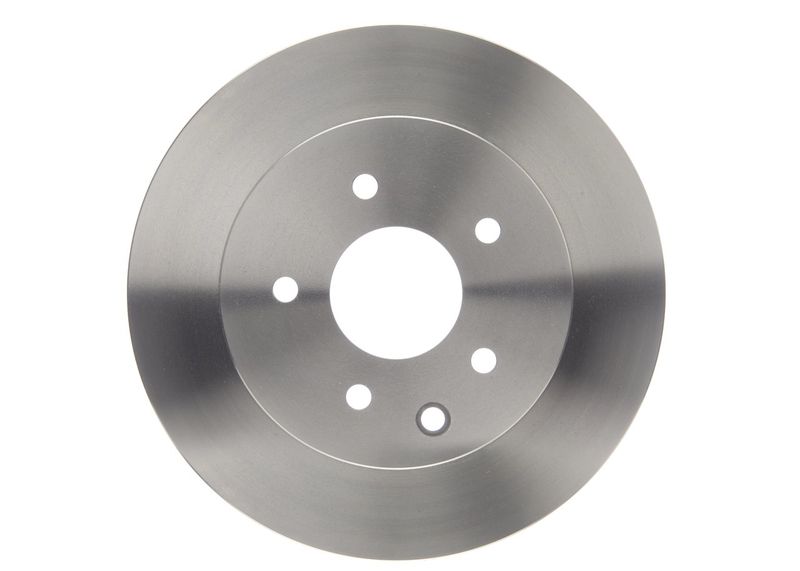

Bosch 0986479S31 Brake Disc

SKU: 0986479S31
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£61.57 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

PORSCHE
MACAN (95B)
Description Cylinder Capacity Horse Power Year
3.0 S 2997 CCM 340 HP 02/2014 - 09/2018
3.6 Turbo 3604 CCM 400 HP 02/2014 - 09/2018
3.0 S Diesel 2967 CCM 258 HP 02/2014 - 09/2018
3.0 S Diesel 2967 CCM 211 HP 02/2014 - 09/2018
3.0 S Diesel 2967 CCM 250 HP 02/2014 - 09/2018
2.0 1984 CCM 237 HP 05/2014 - 09/2018
3.0 S Diesel 2967 CCM 245 HP 02/2014 - 09/2018
3.0 GTS 2997 CCM 360 HP 10/2015 - 09/2018
2.0 1984 CCM 252 HP From 05/2015
3.6 Turbo 3604 CCM 441 HP From 09/2016
3.0 S 2995 CCM 354 HP From 05/2018

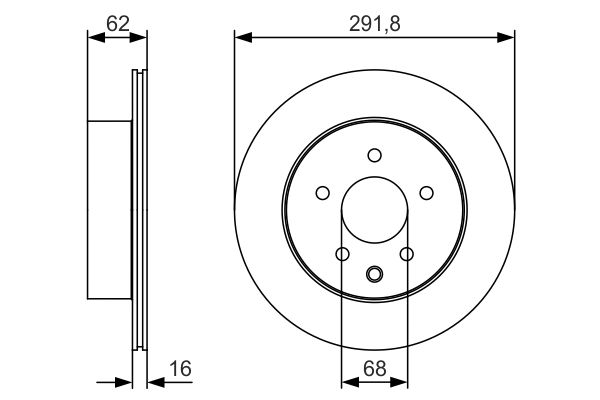

The Bosch 0986479S31 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 291.8 mm outer diameter, 16 mm brake disc thickness, 14 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 291.8
Brake Disc Thickness [mm] : 16
Minimum thickness [mm] : 14
Height [mm] : 62
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : Vented
Centering Diameter [mm] : 68
Number of Holes : 5
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 12.8
  • Vendor BOSCH
  • SKU 0986479S31
  • Barcode 4047025138574
  • NISSAN : 43206 8H305 43206 8H700 43206 8H701 43206 8H702 432063NF0A
  • RENAULT : 43 20 000 16R 43 20 65H A0A
  • DACIA : 432065HA0A
  • APEC : DSK2330
  • APEC : SDK6169
  • BLUE PRINT : ADN143174
  • BLUE PRINT : ADP154314
  • BORG & BECK : BBD4368
  • BREMBO : 09.8969.20
  • BREMBO : 09.8969.21
  • DELPHI : BG3765
  • Fahren : FBD6169
  • FEBI BILSTEIN : 44119
  • HELLA : 8DD 355 118-711
  • MEYLE : 36-15 523 0050
  • MEYLE : 36-15 523 0050/PD
  • MINTEX : MDC1786C
  • NAPA : NBD5417
  • SKF : VKBD 90355 V2
  • TEXTAR : 92144003
  • TRW : DF4745
  • VALEO : 672937
  • BOSCH : BD1930
  • BOSCH : E1 90R-02C0443/1359
