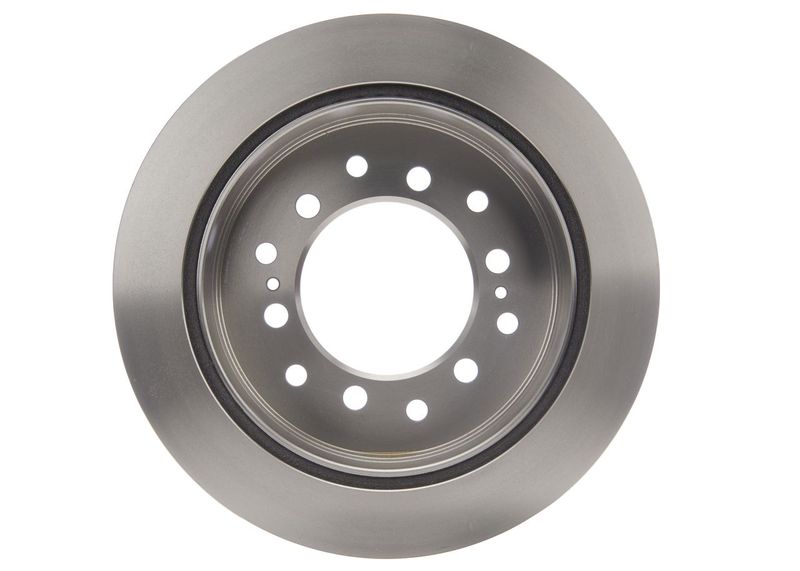

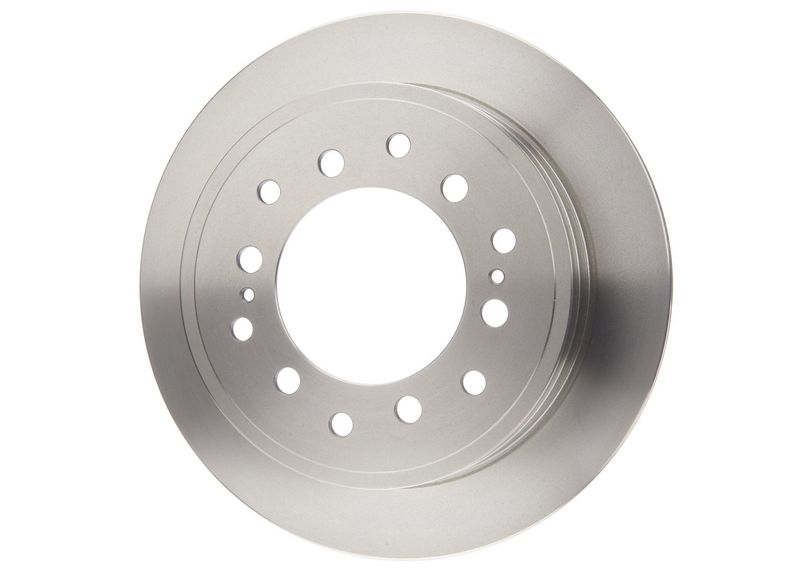

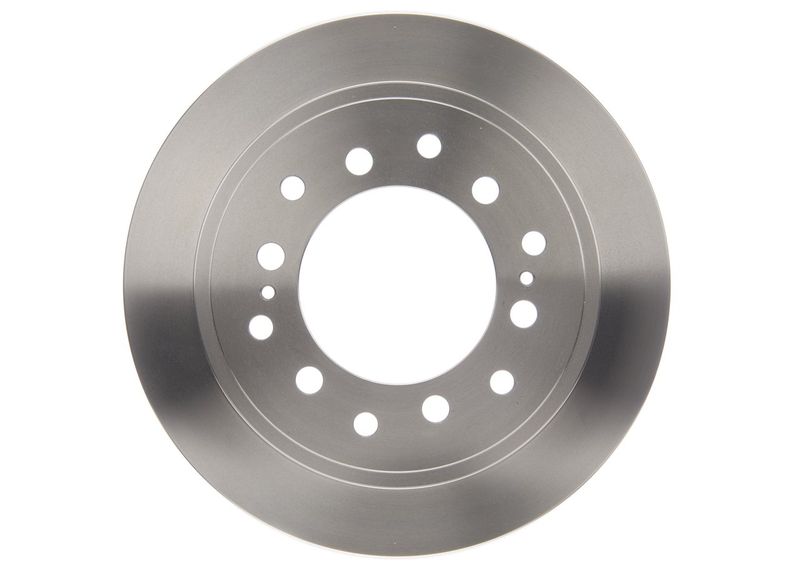

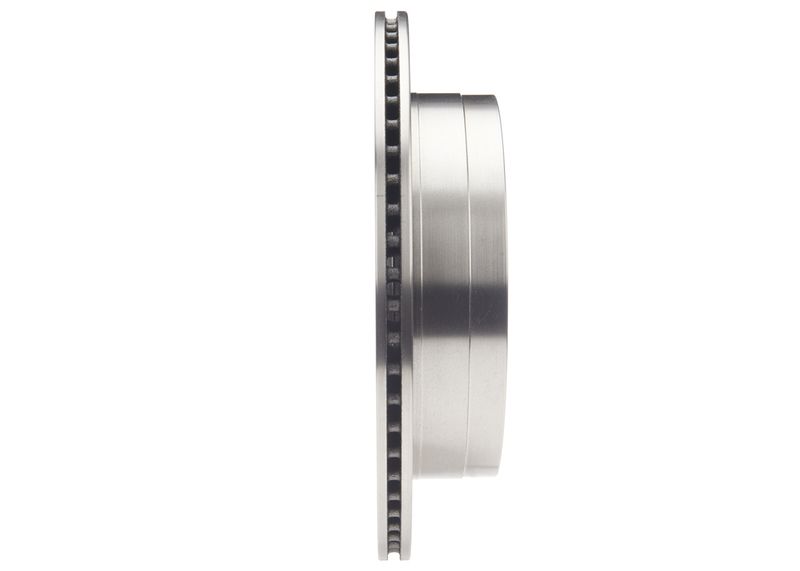

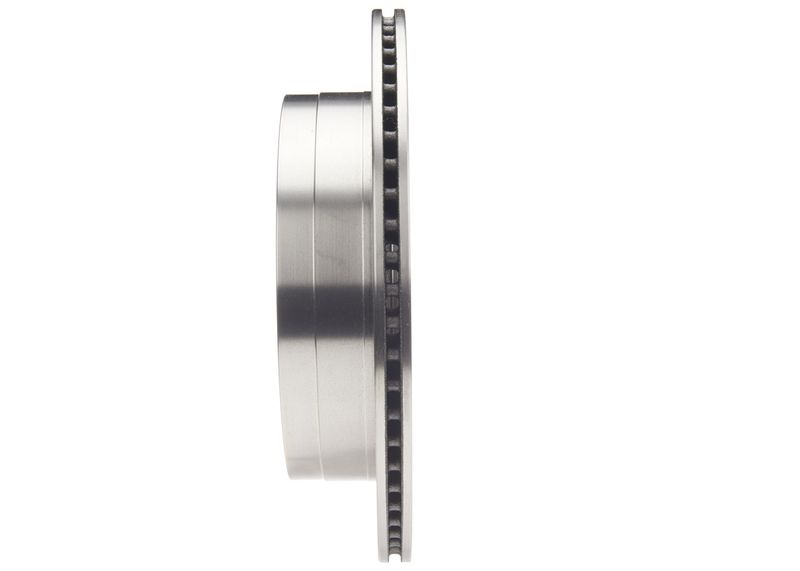

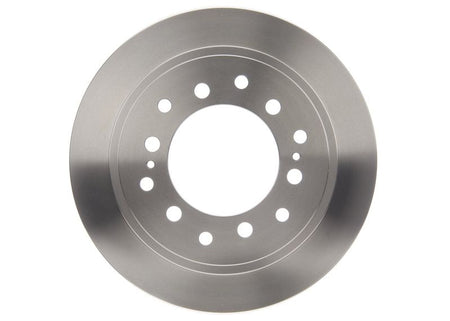

Bosch 0986479S36 Brake Disc - 1
Bosch 0986479S36 Brake Disc - 2
Bosch 0986479S36 Brake Disc - 3
Bosch 0986479S36 Brake Disc - 4
Bosch 0986479S36 Brake Disc - 5
Bosch 0986479S36 Brake Disc - 6
Bosch 0986479S36 Brake Disc - 1
Bosch 0986479S36 Brake Disc - 2
Bosch 0986479S36 Brake Disc - 3
Bosch 0986479S36 Brake Disc - 4
Bosch 0986479S36 Brake Disc - 5
Bosch 0986479S36 Brake Disc - 6
BOSCH

Bosch 0986479S36 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986479S36

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£70.49 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

TOYOTA
4 RUNNER IV (_N21_)
Description Cylinder Capacity Horse Power Year
4.7 4WD (UZN215) 4663 CCM 264 HP 01/2005 - 12/2009
FJ CRUISER (GSJ1_)
Description Cylinder Capacity Horse Power Year
4.0 4WD (GSJ15_) 3956 CCM 242 HP 01/2006 - 01/2018
LAND CRUISER COLORADO (_J9_)
Description Cylinder Capacity Horse Power Year
3.4 i 24V (VZJ90_, VZJ95_, VZJ90R, VZJ95R, VZJ90W,... 3378 CCM 178 HP 03/1996 - 08/2002
3.0 TD (KZJ90_, KZJ95_, KZJ90R, KZJ95R, KZJ90W, KZJ95W) 2982 CCM 125 HP 04/1996 - 12/2002
3.0 D-4D 4WD (KDJ90_, KDJ95_, KDJ90W, KDJ95W) 2982 CCM 163 HP 08/2000 - 08/2002
3.0 TD (KZJ90, KZJ95) 2982 CCM 140 HP 04/1995 - 07/2000
2.7 (RZJ95, RZJ90) 2694 CCM 150 HP 06/1995 - 08/2002
LAND CRUISER PRADO (_J12_)
Description Cylinder Capacity Horse Power Year
3.0 D (LJ120, LJ125) 2986 CCM 95 HP 09/2002 - 02/2010
4.0 (GRJ120, GRJ125, GRJ121) 3956 CCM 249 HP 12/2002 - 12/2010
3.0 D-4D (KDJ120, KDJ125) 2982 CCM 163 HP 09/2002 - 08/2009
3.0 D-4D (KDJ120, KDJ125) 2982 CCM 166 HP 07/2004 - 08/2009
3.0 D-4D (KDJ120, KDJ125, KDJ121) 2982 CCM 173 HP 09/2002 - 12/2010
4.0 (GRJ120, GRJ125) 3956 CCM 243 HP 09/2002 - 08/2010
2.7 (TRJ120, TRJ125) 2694 CCM 163 HP 11/2003 - 02/2010
3.0 D-4D (KDJ120_) 2982 CCM 204 HP 08/2006 - 07/2009
4.0 V6 VVT-i (GRJ125) 3956 CCM 282 HP 01/2003 - 07/2009

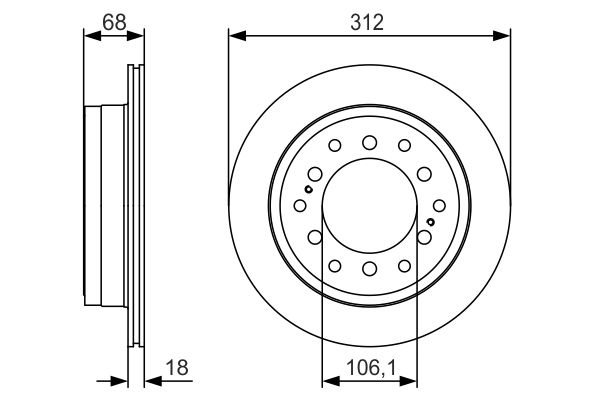

The Bosch 0986479S36 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 312.2 mm outer diameter, 18 mm brake disc thickness, 16 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 312.2
Brake Disc Thickness [mm] : 18
Minimum thickness [mm] : 16
Height [mm] : 68
Bolt Hole Circle Ø [mm] : 139.7
Brake Disc Type : Vented
Centering Diameter [mm] : 106
Number of Holes : 6
Surface : Oiled
Bore Diameter up to [mm] : 14.4
  • Vendor BOSCH
  • SKU 0986479S36
  • Barcode 4047025138611
  • TOYOTA : 42431 60200 42431 60201
  • LEXUS : 4243160200 4243160201
  • APEC : DSK2151
  • APEC : SDK6351
  • BLUE PRINT : ADT343129
  • BORG & BECK : BBD5111
  • BREMBO : 09.A334.10
  • BREMBO : 09.A334.11
  • DELPHI : BG3557
  • Fahren : FBD6351
  • FEBI BILSTEIN : 108393
  • HELLA : 8DD 355 114-861
  • MEYLE : 30-15 523 0109/PD
  • MINTEX : MDC1406C
  • NAPA : NBD5562
  • SKF : VKBD 90272 V2
  • TEXTAR : 92170103
  • TRW : DF4484
  • TRW : DF6342
  • VALEO : 673113
  • VALEO : 673226
  • BOSCH : BD1941
