BOSCH

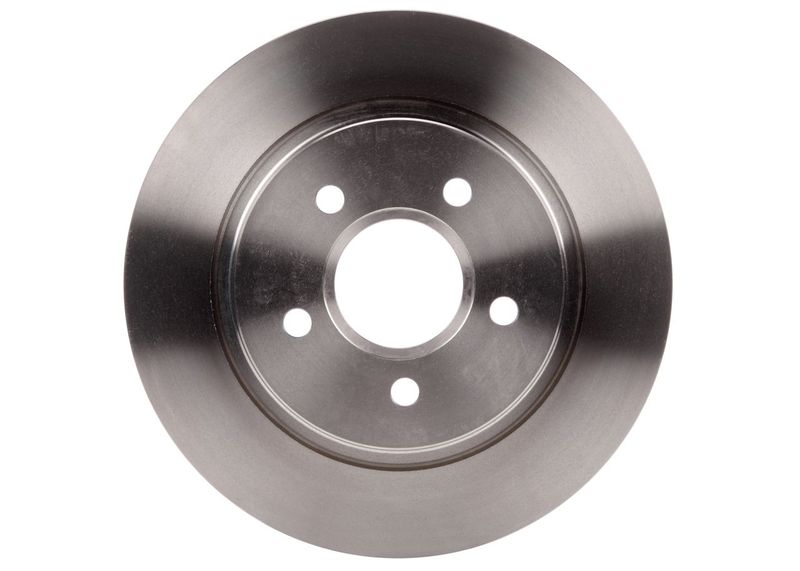

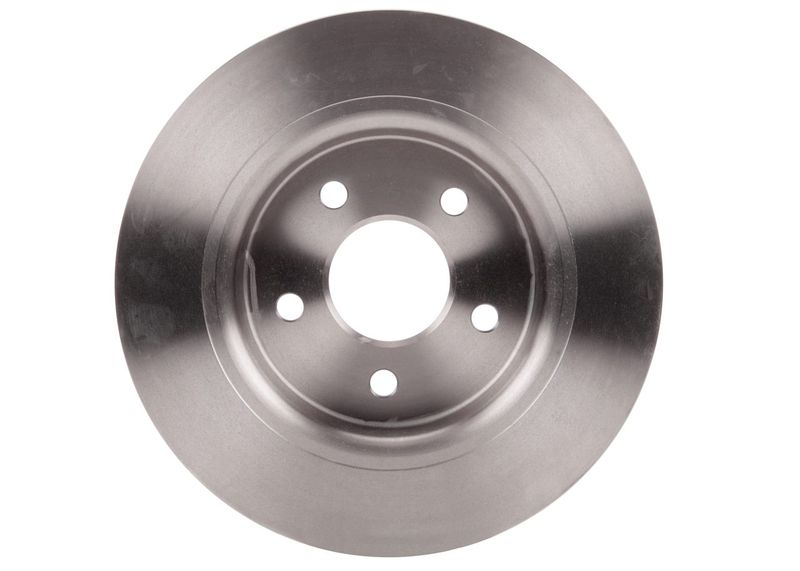

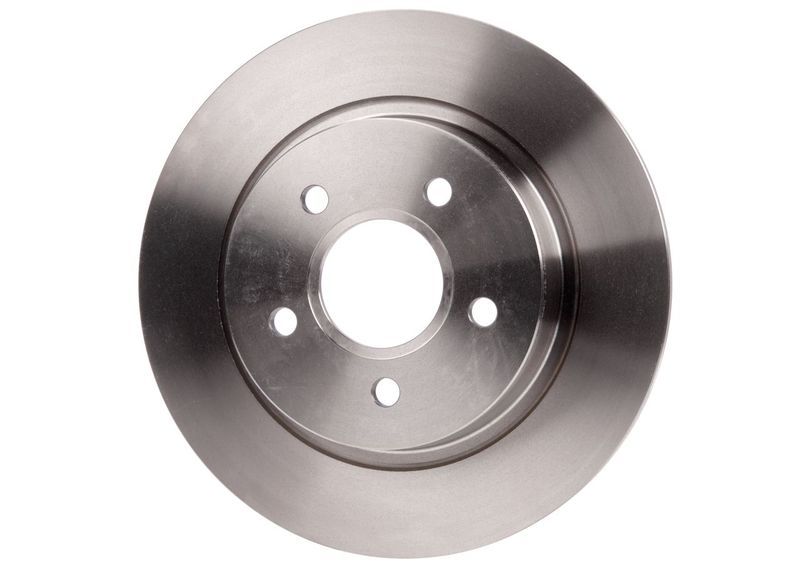

Bosch 0986479S49 Brake Disc

Position: Rear
5.0/5 78 reviews
SKU: 0986479S49

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

In stock
Orders placed by 17:00 are usually dispatched the same working day
£46.98 inc. VAT

Complete the job

APEC — Aerosol Brake cleaner 600ml
£6.92

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

Spend & Earn

Earn 2% store credit on eligible parts spend. Available 30 days after fulfilment. Sign in at checkout to use your balance.

Excludes VAT, delivery, discounts and amounts paid with store credit.

VOLVO
C30 (533)
Description Cylinder Capacity Horse Power Year
D2 1560 CCM 115 HP 10/2010 - 12/2012
D3 1984 CCM 150 HP 10/2010 - 12/2012
D4 1984 CCM 177 HP 10/2010 - 12/2012
1.6 1596 CCM 100 HP 10/2006 - 12/2012
1.8 1798 CCM 125 HP 10/2006 - 12/2012
2.0 1999 CCM 145 HP 10/2006 - 12/2012
2.4 i 2435 CCM 170 HP 10/2006 - 12/2012
T5 2521 CCM 220 HP 10/2006 - 12/2012
1.6 D 1560 CCM 109 HP 10/2006 - 12/2012
2.0 D 1998 CCM 136 HP 10/2006 - 12/2012
D5 2400 CCM 180 HP 10/2006 - 12/2012
T5 2521 CCM 230 HP 03/2007 - 12/2012
1.8 FlexFuel 1798 CCM 125 HP 01/2007 - 12/2012
D5 2400 CCM 163 HP 10/2006 - 12/2012
2.0 FlexFuel 1999 CCM 146 HP 01/2010 - 12/2012
C70 II Convertible (542)
Description Cylinder Capacity Horse Power Year
D3 1984 CCM 150 HP 10/2010 - 06/2013
D4 1984 CCM 177 HP 10/2010 - 06/2013
2.4 2435 CCM 140 HP 03/2006 - 10/2009
2.4 i 2435 CCM 170 HP 03/2006 - 10/2009
T5 2521 CCM 220 HP 03/2006 - 02/2007
D5 2400 CCM 180 HP 03/2006 - 06/2013
T5 2521 CCM 230 HP 03/2007 - 06/2013
2.0 D 1998 CCM 136 HP 01/2008 - 10/2009
2.4 D 2400 CCM 163 HP 03/2007 - 06/2013
S40 II (544)
Description Cylinder Capacity Horse Power Year
D3 1984 CCM 150 HP 10/2010 - 12/2012
D4 1984 CCM 177 HP 10/2010 - 12/2012
D2 1560 CCM 115 HP 10/2010 - 12/2012
2.0 F 1999 CCM 146 HP 10/2009 - 12/2012
2.4 2435 CCM 140 HP 01/2004 - 12/2010
2.4 2435 CCM 170 HP 01/2004 - 12/2012
T5 2521 CCM 220 HP 01/2004 - 12/2007
2.0 D 1998 CCM 136 HP 01/2004 - 12/2010
T5 AWD 2521 CCM 220 HP 04/2004 - 12/2007
1.8 1798 CCM 125 HP 04/2004 - 12/2010
1.6 1596 CCM 101 HP 01/2005 - 12/2012
1.6 D 1560 CCM 110 HP 01/2005 - 12/2012
2.0 1999 CCM 146 HP 10/2006 - 12/2012
D5 2400 CCM 179 HP 03/2006 - 12/2010
T5 2521 CCM 230 HP 03/2007 - 12/2012
V50 (545)
Description Cylinder Capacity Horse Power Year
D4 1984 CCM 177 HP 10/2010 - 12/2012
D3 1984 CCM 150 HP 10/2010 - 12/2012
2.4 2435 CCM 140 HP 04/2004 - 12/2010
2.4 2435 CCM 170 HP 04/2004 - 12/2010
T5 2521 CCM 220 HP 04/2004 - 12/2007
2.0 D 1998 CCM 136 HP 04/2004 - 12/2010
T5 AWD 2521 CCM 220 HP 04/2004 - 12/2007
1.8 1798 CCM 125 HP 04/2004 - 12/2010
1.6 1596 CCM 101 HP 01/2005 - 12/2012
1.6 D 1560 CCM 110 HP 01/2005 - 12/2011
2.0 1999 CCM 146 HP 10/2006 - 12/2012
D5 2400 CCM 179 HP 04/2006 - 02/2008
T5 2521 CCM 230 HP 03/2007 - 12/2012
T5 AWD 2521 CCM 230 HP 03/2007 - 12/2010
1.8 FlexFuel 1798 CCM 125 HP 01/2005 - 12/2010

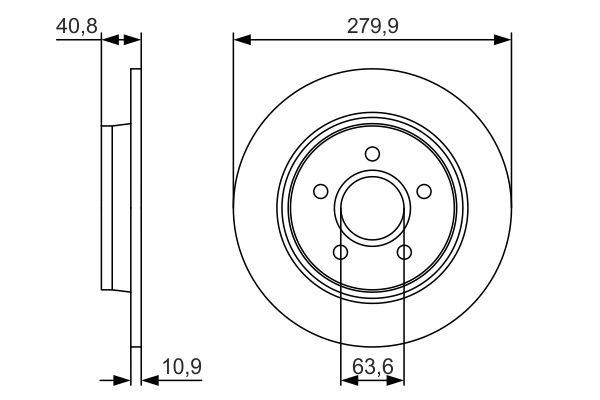

The Bosch 0986479S49 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 280 mm outer diameter, 11 mm brake disc thickness, 9 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 280
Brake Disc Thickness [mm] : 11
Minimum thickness [mm] : 9
Height [mm] : 40.7
Bolt Hole Circle Ø [mm] : 108
Brake Disc Type : solid
Centering Diameter [mm] : 63.6
Number of Holes : 5
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 13.9
  • Vendor BOSCH
  • SKU 0986479S49
  • Barcode 4047025138673
  • FORD : 1223566 1223568 1253962 1253963 1323551 1373361 1500156 3M512A315EA 3M512A315EC 3M512A315ED 7M512A315BA
  • VOLVO : 30666802 30769113 31471039
  • APEC : DSK2232
  • APEC : SDK6114
  • BLUE PRINT : ADF124316
  • BLUE PRINT : ADF124360
  • BREMBO : 08.9975.10
  • BREMBO : 08.9975.11
  • BREMBO : 08.9975.1X
  • BREMBO : 08.9975.75
  • DELPHI : BG3897C
  • Fahren : FBD6114
  • FEBI BILSTEIN : 105714
  • FEBI BILSTEIN : 24620
  • HELLA : 8DD 355 119-501
  • MEYLE : 515 523 0008
  • MEYLE : 515 523 0008/PD
  • MINTEX : MDC1643
  • MINTEX : MDC2529
  • MINTEX : MDC2529C
  • NAPA : NBD5523
  • National : NBD1298
  • SKF : VKBD 90203 S2
  • TEXTAR : 92133803
  • TEXTAR : 92255603
  • TRW : DF4422
  • VALEO : 672909
  • BOSCH : BD1926
  • BOSCH : E1 90R-02C0355/0246
