BOSCH

Bosch 0986479S50 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986479S50
Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£62.07 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

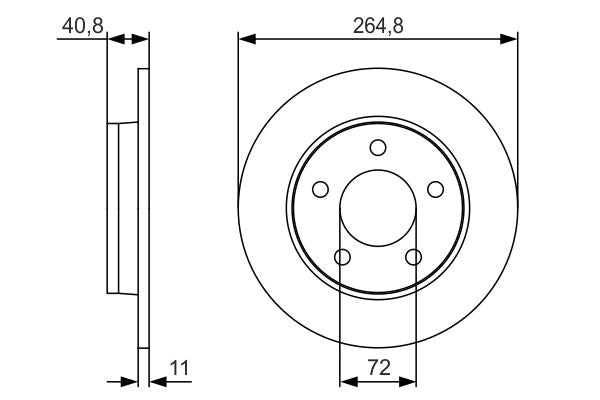

The Bosch 0986479S50 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 264.8 mm outer diameter, 11 mm brake disc thickness, 9 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 264.8
Brake Disc Thickness [mm] : 11
Minimum thickness [mm] : 9
Height [mm] : 40.8
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : solid
Centering Diameter [mm] : 72
Number of Holes : 5
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 13.8
  • Vendor BOSCH
  • SKU 0986479S50
  • Barcode 4047025138680
  • MAZDA : BP4Y-26-251B BP4Y-26-251C BP4Y-26-251D C24Y-26-251B C24Y-26-251C C24Y26251C9A C24Y-26-251D
  • APEC : DSK2196
  • APEC : SDK6229
  • BLUE PRINT : ADM543115
  • BORG & BECK : BBD4448
  • BOSCH : 0 986 479 C77
  • BREMBO : 08.A029.10
  • BREMBO : 08.A029.11
  • BREMBO : 08.A029.1X
  • DELPHI : BG4025C
  • Fahren : FBD6229
  • FEBI BILSTEIN : 175209
  • HELLA : 8DD 355 110-901
  • MEYLE : 35-15 523 0022
  • MEYLE : 35-15 523 0022/PD
  • MINTEX : MDC1908
  • NAPA : NBD5597
  • TEXTAR : 92130500
  • TRW : DF4419
  • VALEO : 672941
  • BOSCH : BD1929
  • BOSCH : E1 90R-02C0355/0102
