BOSCH

Bosch 0986479S51 Brake Disc

5.0/5 65 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986479S51

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£70.02 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

FORD
TOURNEO CONNECT
Description Cylinder Capacity Horse Power Year
1.8 TDCi /TDDi /DI 1753 CCM 75 HP 06/2002 - 12/2013
1.8 TDCi 1753 CCM 90 HP 06/2002 - 12/2013
1.8 16V 1796 CCM 116 HP 06/2002 - 12/2013
1.8 TDCi 1753 CCM 110 HP 08/2006 - 12/2013
TRANSIT CONNECT (P65_, P70_, P80_)
Description Cylinder Capacity Horse Power Year
1.8 16V LPG 1796 CCM 116 HP 06/2002 - 12/2013
1.8 16V 1796 CCM 116 HP 06/2002 - 12/2013
1.8 Di 1753 CCM 75 HP 06/2002 - 12/2013
1.8 TDCi 1753 CCM 90 HP 06/2002 - 12/2013
1.8 TDCi 1753 CCM 110 HP 08/2006 - 12/2013

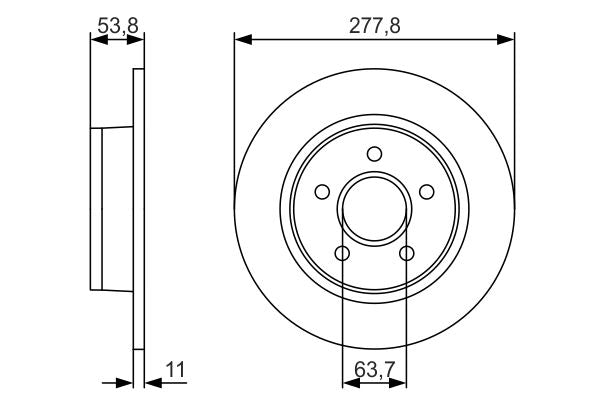

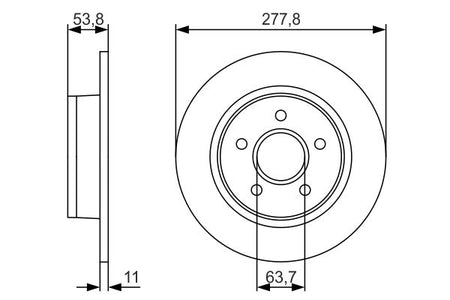

The Bosch 0986479S51 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 277.8 mm outer diameter, 11 mm brake disc thickness, 9.6 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 277.8
Brake Disc Thickness [mm] : 11
Minimum thickness [mm] : 9.6
Height [mm] : 53.8
Bolt Hole Circle Ø [mm] : 108
Brake Disc Type : solid
Centering Diameter [mm] : 63.7
Number of Holes : 5
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 13.8
  • Vendor BOSCH
  • SKU 0986479S51
  • Barcode 4047025138697
  • FORD : 1362867 1362868 2T142A315AA 2T142A315AB 2T142A315AC 2T142A315BA 2T142A315BC 4457989 4475316
  • APEC : DSK2358
  • APEC : SDK6262
  • BLUE PRINT : ADF124328
  • BORG & BECK : BBD4403
  • BREMBO : 08.A297.10
  • BREMBO : 08.A297.11
  • DELPHI : BG3873
  • Fahren : FBD6262
  • FEBI BILSTEIN : 44016
  • HELLA : 8DD 355 110-291
  • MEYLE : 715 523 7034
  • MINTEX : MDC1663
  • NAPA : NBD5331
  • TEXTAR : 92124903
  • TRW : DF4407
  • BOSCH : BD1933
  • BOSCH : E1 90R-02C0355/0245
