Bosch 0986479S96 Brake Disc
Your selected vehicle
Regular price
£50.06
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

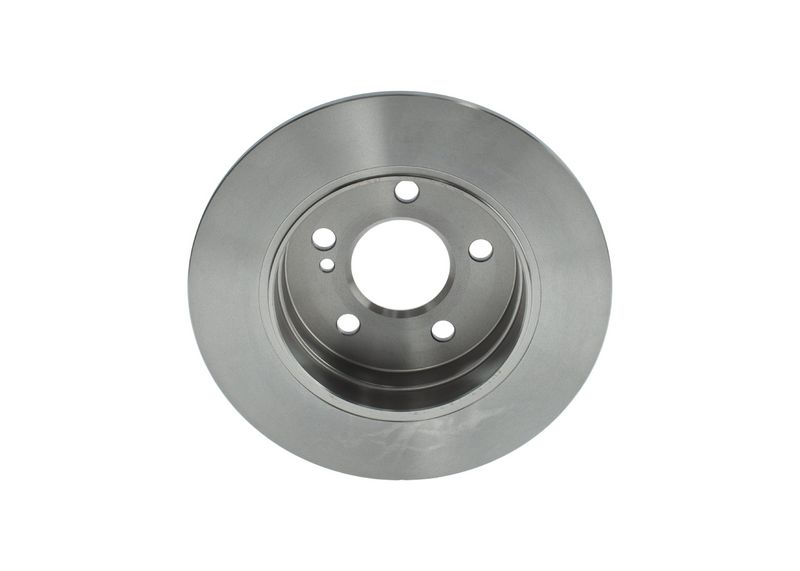

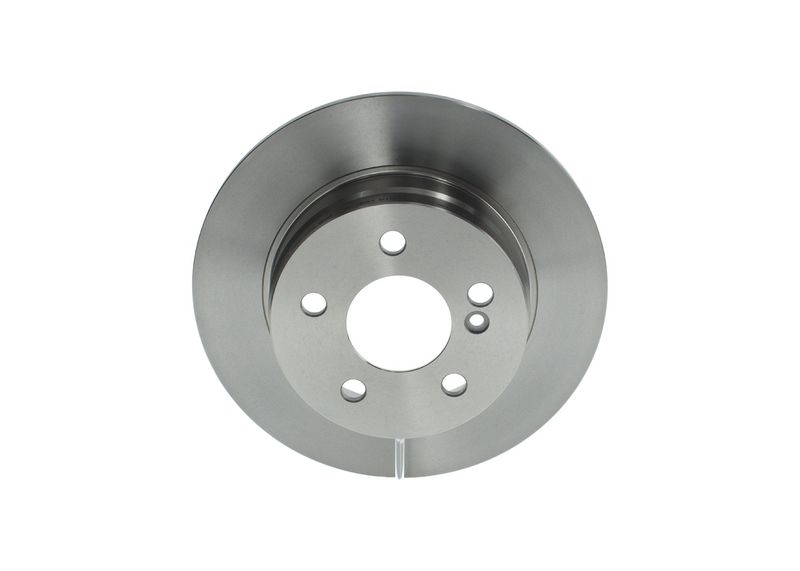

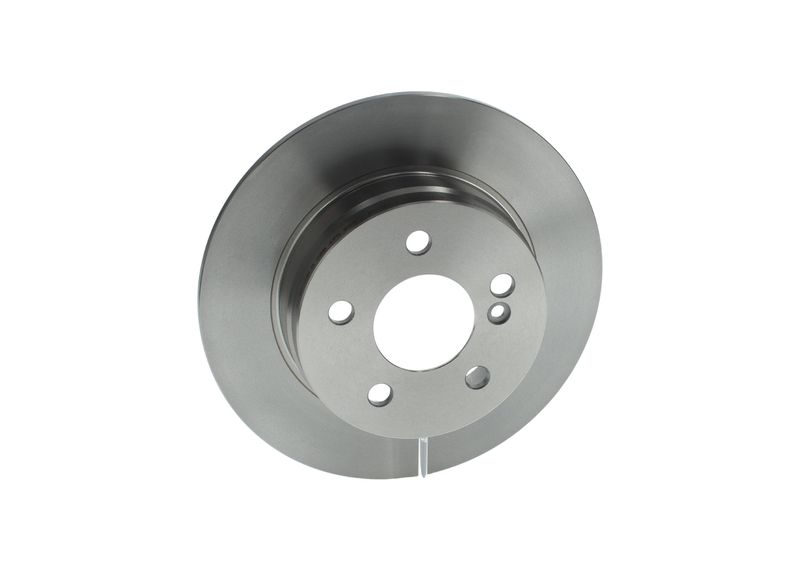

The Bosch 0986479S96 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 278 mm outer diameter, 9 mm brake disc thickness, 7.3 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Disc

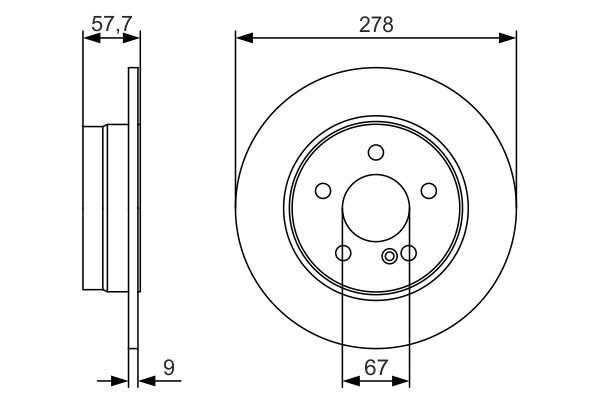

Outer Diameter [mm] :
278
Brake Disc Thickness [mm] :
9
Minimum thickness [mm] :
7.3
Height [mm] :
57.7
Bolt Hole Circle Ø [mm] :
112
Brake Disc Type :
solid
Centering Diameter [mm] :
67
Number of Holes :
5
Surface :
Oiled
fulfils ECE standard :
ECE-R90
Bore Diameter up to [mm] :
15.3
- Vendor BOSCH
- SKU 0986479S96
- MERCEDES-BENZ : A 204 423 05 12 204 423 05 12
- APEC : DSK2587
- APEC : SDK6544
- BLUE PRINT : ADU174314
- BORG & BECK : BBD4722
- DELPHI : BG4152
- Fahren : FBD6544
- FEBI BILSTEIN : 30554
- HELLA : 8DD 355 114-181
- MINTEX : MDC2015
- NAPA : NBD5171
- SKF : VKBD 90145 S2
- TEXTAR : 92163103
- TRW : DF4948
- BOSCH : BD1981
- BOSCH : E1 90R-02C0357/0146
