BOSCH

Bosch 0986479T00 Brake Disc

SKU: 0986479T00
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£44.77 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
CAMRY (_V7_, _VA7_, _VH7_)
Description Cylinder Capacity Horse Power Year
2.5 Hybrid (AXVH71_, AXVH70, AXVH71R) 2487 CCM 218 HP From 08/2017
RAV 4 V (_A5_, _H5_)
Description Cylinder Capacity Horse Power Year
2.5 Hybrid (AXAH52) 2487 CCM 218 HP From 12/2018
2.0 (MXAA52) 1987 CCM 175 HP From 12/2018
2.0 AWD (MXAA54) 1987 CCM 175 HP From 12/2018
2.0 VVTi (MXAA52) 1987 CCM 173 HP From 12/2018
2.0 VVTi AWD (MXAA54) 1987 CCM 173 HP From 02/2019
2.5 VVTi AWD (AXAA54) 2487 CCM 203 HP From 12/2018
2.5 Hybrid AWD (AXAH54, AXAL54) 2487 CCM 222 HP From 12/2018
LEXUS
NX (_Z1_)
Description Cylinder Capacity Horse Power Year
200t AWD (AGZ15_, AGZ15R) 1998 CCM 238 HP From 07/2014
300 AWD (AGZ15_, AGZ15R) 1998 CCM 238 HP From 09/2017
RX (_L2_)
Description Cylinder Capacity Horse Power Year
350 4WD (GGL25_, GGL26_, GGL25R, GGL26R) 3456 CCM 300 HP From 10/2015
350 4WD (GGL25, GGL26) 3456 CCM 294 HP From 10/2015

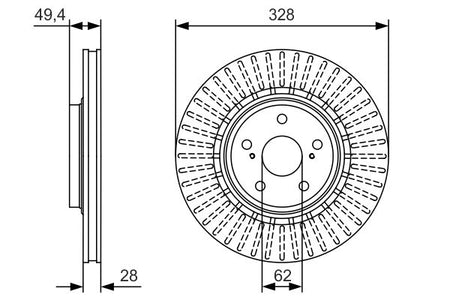

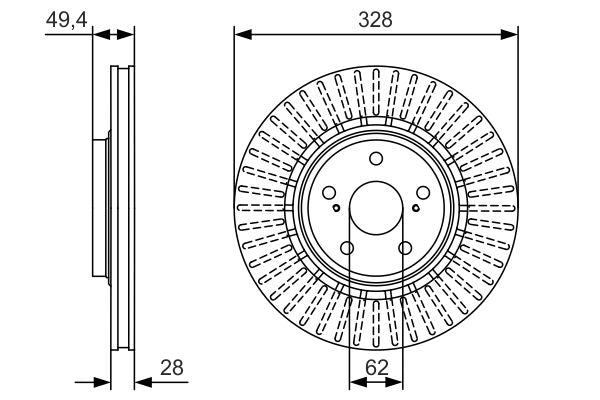

The Bosch 0986479T00 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 328 mm outer diameter, 28 mm brake disc thickness, 25 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 328
Brake Disc Thickness [mm] : 28
Minimum thickness [mm] : 25
Height [mm] : 49.4
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : Vented
Centering Diameter [mm] : 62
Number of Holes : 5
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 14.6
  • Vendor BOSCH
  • SKU 0986479T00
  • Barcode 4047025145886
  • TOYOTA : 43512 48110 43512 48130
  • LEXUS : 4351248110 4351248130
  • BLUE PRINT : ADT343278
  • BORG & BECK : BBD5229
  • BREMBO : 09.C499.11
  • BREMBO : 09.C499.1X
  • BREMBO : 09.E126.11
  • DELPHI : BG4691C
  • DELPHI : BG5030C
  • FEBI BILSTEIN : 108464
  • FTE : 9071091
  • FTE : 9082798
  • MEYLE : 30-15 521 0130/PD
  • MINTEX : MDC2629
  • SKF : VKBD 80342 V1
  • TEXTAR : 92259403
  • TEXTAR : 92259405
  • TRW : DF6265
  • VALEO : 672698
  • BOSCH : BD1798
  • BOSCH : E1 90R-02C0289/1769
