BOSCH

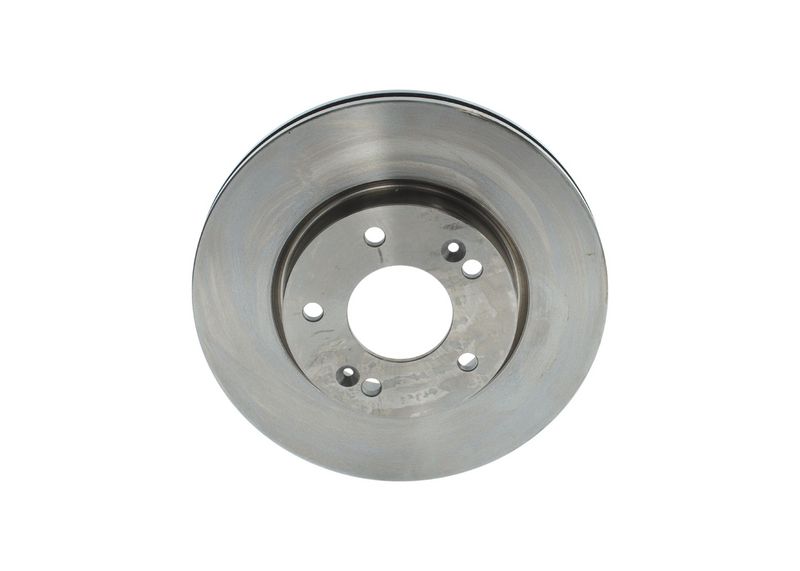

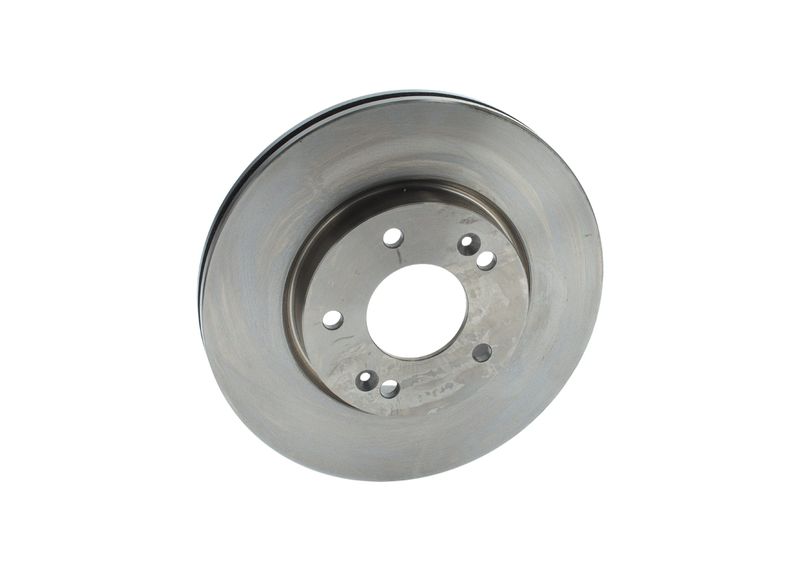

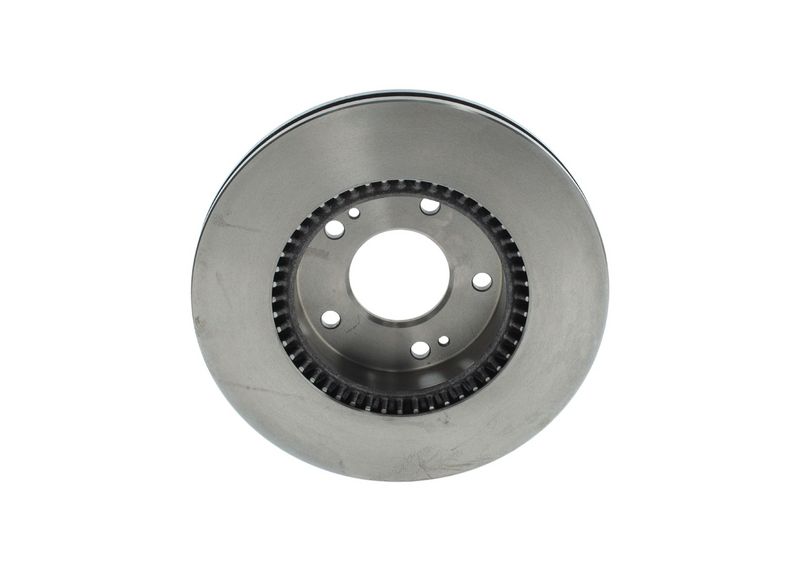

Bosch 0986479U10 Brake Disc

SKU: 0986479U10
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£80.52 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

HYUNDAI
i30 (FD)
Description Cylinder Capacity Horse Power Year
1.6 1591 CCM 122 HP 10/2007 - 11/2011
2.0 1975 CCM 143 HP 10/2007 - 11/2011
1.6 CRDi 1582 CCM 116 HP 10/2007 - 11/2011
1.6 1591 CCM 116 HP 10/2007 - 11/2011
1.6 1591 CCM 126 HP 02/2008 - 11/2011
1.6 CRDi VGT 1582 CCM 110 HP 10/2007 - 11/2011
i30 Estate (FD)
Description Cylinder Capacity Horse Power Year
1.6 1591 CCM 122 HP 02/2008 - 06/2012
2.0 1975 CCM 143 HP 02/2008 - 06/2012
1.6 CRDi 1582 CCM 116 HP 02/2008 - 06/2012
1.6 1591 CCM 126 HP 02/2008 - 06/2012
SONATA V (NF)
Description Cylinder Capacity Horse Power Year
2.0 VVTi GLS 1998 CCM 165 HP 01/2008 - 12/2010
SONATA VI (YF)
Description Cylinder Capacity Horse Power Year
2.0 i 1998 CCM 165 HP 01/2011 - 06/2014
KIA
CARENS III MPV (UN)
Description Cylinder Capacity Horse Power Year
2.0 CVVT 1998 CCM 144 HP 09/2006 - 06/2013
2.0 CVVT 1998 CCM 143 HP 05/2006 - 03/2013
SOUL I (AM)
Description Cylinder Capacity Horse Power Year
1.6 CVVT 1591 CCM 126 HP 02/2009 - 12/2011
1.6 CRDi 128 1582 CCM 126 HP 02/2009 - 12/2014
SOUL II (PS)
Description Cylinder Capacity Horse Power Year
2.0 CVVT 1999 CCM 154 HP 02/2014 - 12/2018
2.0 CVVT 1999 CCM 150 HP 08/2016 - 12/2018

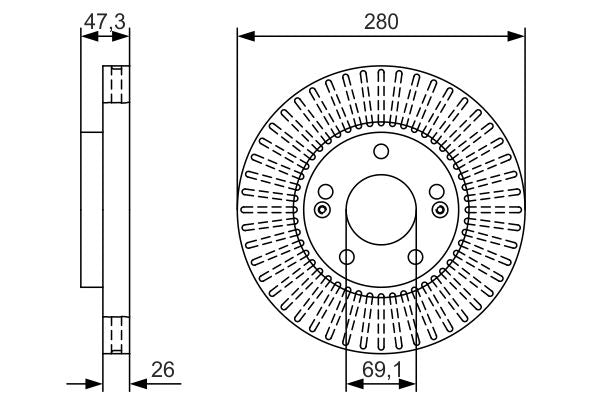

The Bosch 0986479U10 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 280 mm outer diameter, 26 mm brake disc thickness, 24.4 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 280
Brake Disc Thickness [mm] : 26
Minimum thickness [mm] : 24.4
Height [mm] : 47.5
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : Vented
Centering Diameter [mm] : 69
Number of Holes : 5
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 12.7
  • Vendor BOSCH
  • SKU 0986479U10
  • Barcode 4047025350914
  • APEC : DSK2251
  • APEC : SDK6013
  • BLUE PRINT : ADG043130
  • BLUE PRINT : ADG043135
  • BLUE PRINT : ADG04365
  • BLUE PRINT : ADG04366
  • BLUE PRINT : ADG04395
  • BREMBO : 09.B551.11
  • DELPHI : BG3861C
  • Fahren : FBD6013
  • FEBI BILSTEIN : 108573
  • FEBI BILSTEIN : 108601
  • FEBI BILSTEIN : 31316
  • FEBI BILSTEIN : 31470
  • HELLA : 8DD 355 122-341
  • MEYLE : 37-15 521 0029
  • MINTEX : MDC1780
  • MINTEX : MDC1780C
  • MINTEX : MDC2648
  • NAPA : NBD5034
  • TEXTAR : 92133903
  • TEXTAR : 92133905
  • TEXTAR : 92271403
  • VALEO : 672743
  • BOSCH : BD2273
  • BOSCH : E11 90R-02C01123/27466
