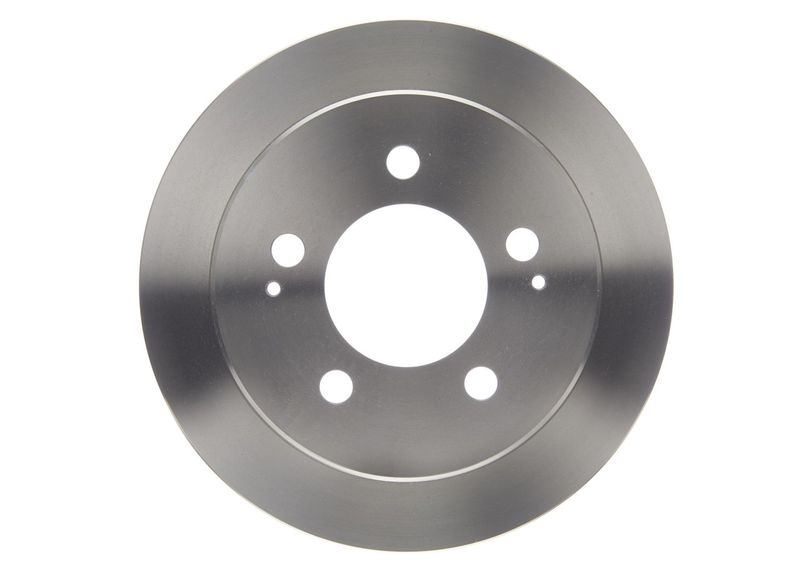

Bosch 0986479U21 Brake Disc - 1
Bosch 0986479U21 Brake Disc - 2

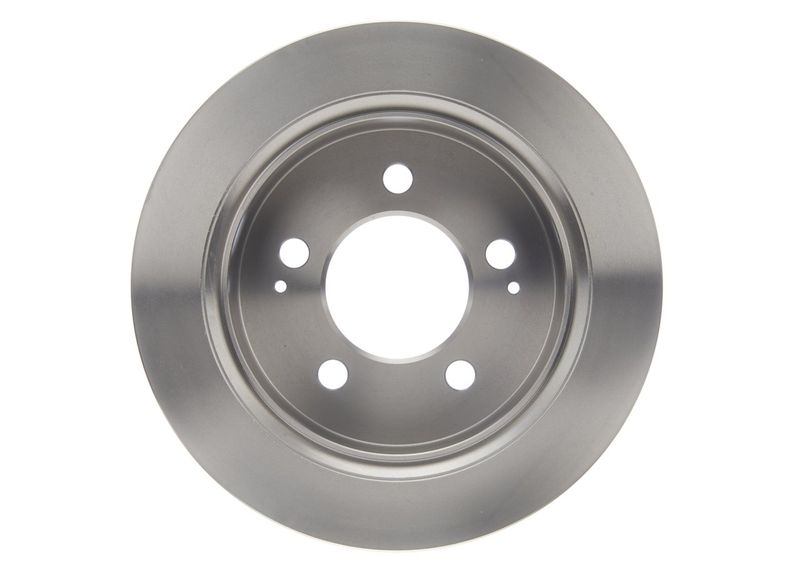

Bosch 0986479U21 Brake Disc - 3
Bosch 0986479U21 Brake Disc - 4
Bosch 0986479U21 Brake Disc - 5

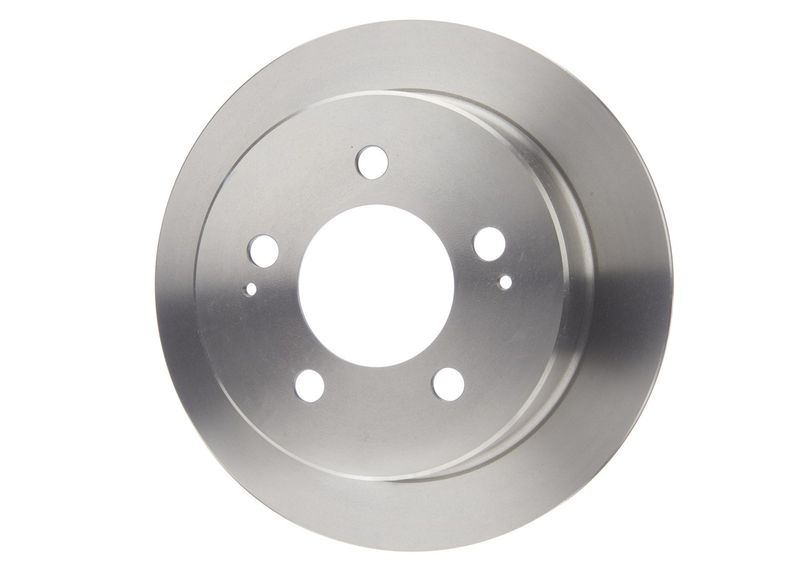

Bosch 0986479U21 Brake Disc - 6
Bosch 0986479U21 Brake Disc - 1
Bosch 0986479U21 Brake Disc - 2
Bosch 0986479U21 Brake Disc - 3
Bosch 0986479U21 Brake Disc - 4
Bosch 0986479U21 Brake Disc - 5
Bosch 0986479U21 Brake Disc - 6
BOSCH

Bosch 0986479U21 Brake Disc

SKU: 0986479U21
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£66.74 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SSANGYONG
ACTYON I
Description Cylinder Capacity Horse Power Year
2.0 Xdi 1998 CCM 136 HP 07/2007 - 06/2013
200 Xdi 4WD 1998 CCM 136 HP 07/2007 - 06/2013
200 Xdi 4WD 1998 CCM 141 HP From 10/2006
2.3 4x4 2295 CCM 150 HP From 11/2006
2.0 Xdi 1998 CCM 141 HP From 11/2005
ACTYON SPORTS I (QJ)
Description Cylinder Capacity Horse Power Year
2.0 Xdi 4WD 1998 CCM 155 HP From 09/2011
2.0 Xdi 4WD 1998 CCM 141 HP From 04/2007
2.0 Xdi 1998 CCM 155 HP From 09/2011
2.0 Xdi 1998 CCM 141 HP From 04/2007
ACTYON II
Description Cylinder Capacity Horse Power Year
2.0 XDi 1998 CCM 150 HP From 08/2012
2.0 XDi 4x4 1998 CCM 150 HP From 08/2012
KYRON
Description Cylinder Capacity Horse Power Year
2.7 Xdi 4x4 2696 CCM 163 HP 03/2006 - 12/2014
2.3 2295 CCM 150 HP 01/2010 - 12/2014
2.0 Xdi 1998 CCM 136 HP 01/2010 - 12/2014
2.0 Xdi 4x4 1998 CCM 136 HP 01/2010 - 12/2014
2.0 Xdi 4x4 1998 CCM 141 HP 05/2005 - 12/2014
2.0 Xdi 1998 CCM 141 HP 05/2005 - 12/2014
2.7 Xdi 4x4 2696 CCM 165 HP 05/2005 - 12/2014
2.0 Xdi 4x4 1998 CCM 138 HP 05/2005 - 12/2014
2.0 Xdi 1998 CCM 137 HP 05/2005 - 12/2014
MUSSO II
Description Cylinder Capacity Horse Power Year
2.0 Xdi 1998 CCM 155 HP From 01/2012
2.0 Xdi 4WD 1998 CCM 155 HP From 01/2012
REXTON / REXTON II (GAB_)
Description Cylinder Capacity Horse Power Year
2.7 Xdi 4x4 2696 CCM 160 HP 03/2011 - 04/2013
2.7 Xdi Turbo 4x4 2696 CCM 180 HP From 03/2008
3.2 RX320 4x4 3199 CCM 220 HP From 04/2002
2.7 Xdi 2696 CCM 163 HP From 08/2004
2.7 D 4x4 2696 CCM 186 HP From 06/2006
2.7 Xdi 4x4 2696 CCM 165 HP 05/2004 - 05/2012
REXTON W / REXTON
Description Cylinder Capacity Horse Power Year
2.0 Xdi 1998 CCM 155 HP 07/2012 - 11/2015
2.0 Xdi All-wheel Drive 1998 CCM 155 HP 07/2012 - 11/2015
2.2 Xdi 2157 CCM 178 HP 07/2015 - 06/2017
2.2 Xdi All-wheel Drive 2157 CCM 178 HP 07/2015 - 06/2017
REXTON W / REXTON VAN
Description Cylinder Capacity Horse Power Year
e-XDi All-wheel Drive 2157 CCM 178 HP From 07/2015

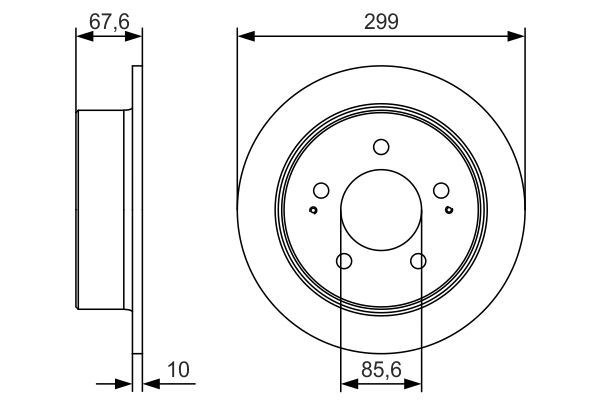

The Bosch 0986479U21 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 299 mm outer diameter, 10 mm brake disc thickness, 8.5 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 299
Brake Disc Thickness [mm] : 10
Minimum thickness [mm] : 8.5
Height [mm] : 67.6
Bolt Hole Circle Ø [mm] : 130
Brake Disc Type : solid
Centering Diameter [mm] : 85.6
Number of Holes : 5
Surface : Coated
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 17.2
  • Vendor BOSCH
  • SKU 0986479U21
  • Barcode 4047025351010
  • SSANGYONG : 484 010 90 00 484 010 90 01 484 010 90 02
  • APEC : DSK2712
  • BLUE PRINT : ADG043118
  • BORG & BECK : BBD5169
  • BREMBO : 08.D568.11
  • DELPHI : BG4220
  • FEBI BILSTEIN : 170608
  • FTE : 9082644
  • HELLA : 8DD 355 116-341
  • MINTEX : MDC2212
  • NAPA : NBD5798
  • TEXTAR : 92198703
  • TRW : DF7960
  • BOSCH : BD2319
  • BOSCH : E1 90R-02C0357/0167
